500 Gallon Compact Water Trailer

Farm Use: Min. Vehicle Weight: 2,400 lbs. On Flat Ground, Towing Capacity 5,200 lbs. On Uneven Terrain

Need a Quote and Information?

500 Gal. Compact Water Trailer

The 500 gallon compact ABI Water Trailer hauls and applies large volumes of water around the farm or property. This compact trailer, built on a low riding proprietary frame, is ideally suited for smaller tow vehicles such as very large UTVs and compact tractors. It is powered by an engine and pump to apply variable amounts of water from either the rear spray nozzle(s) (wide spray) or the available spray hose (spot application). Additionally, it has the ability to turn the flow of water on and off, on-the-fly, from the seat of the tow vehicle. Common uses include dust abatement, irrigation, hydration, watering, washing, and supplying in applications such as horse arenas, general property, nurseries, ballfields, pools, parks, farms, and more! The ABI Water Trailer comes loaded with features perfectly selected to make this an invaluable and versatile trailer for your water application needs. Not for use on public roadways.
500 Gal. Compact Water Trailer

(Full-Loaded Configuration)

No matter how you spin it, a water trailer is only as good as the frame it’s built upon. The ABI Farm and Ranch Trailers have a frame that is fully welded and custom engineered for the demands of the enormous weight of water. The rugged steel frame is made for extreme durability and long service life. ABI is dedicated to manufacturing our products in the USA; only the highest quality steel, superior craftsmanship and powder coating is acceptable!

frame-large

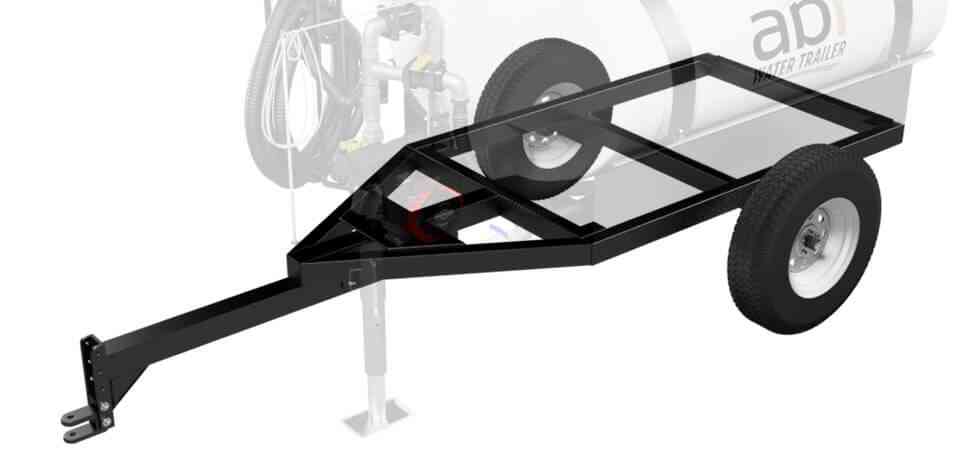

Purpose-Built Rugged Steel Frame

Built Better Than The Rest

No matter how you spin it, a water trailer is only as good as the frame it’s built upon. Our frames are purpose-built and are NOT converted car haulers or a purchased component (like many competitors’). We design and build our own frames, giving us complete control of durability, safety, and functionality. No matter the size, our frames are constructed of fully-welded steel (no wood!), have an adjustable hitch with choice of coupler, and feature leaf-spring or torsion suspension.

tank-large2

Full-Drain Custom Molded Tank

Fully Drain For Easy Cleaning

Each tank is rotationally-molded and fully drains for easy cleaning. Many competitors’ tanks do not fully drain, making it nearly impossible to throughly clean (needed for potable water usage) or flush out sediment from filling the tank with pond water. Most ABI models have elliptical tanks for easy access and a lower center of gravity. Choose between a white tank for easy water filling visibility or a black tank to reduce algae growth during water storage. The shape of our tanks also helps to minimize water sloshing during use.

engine

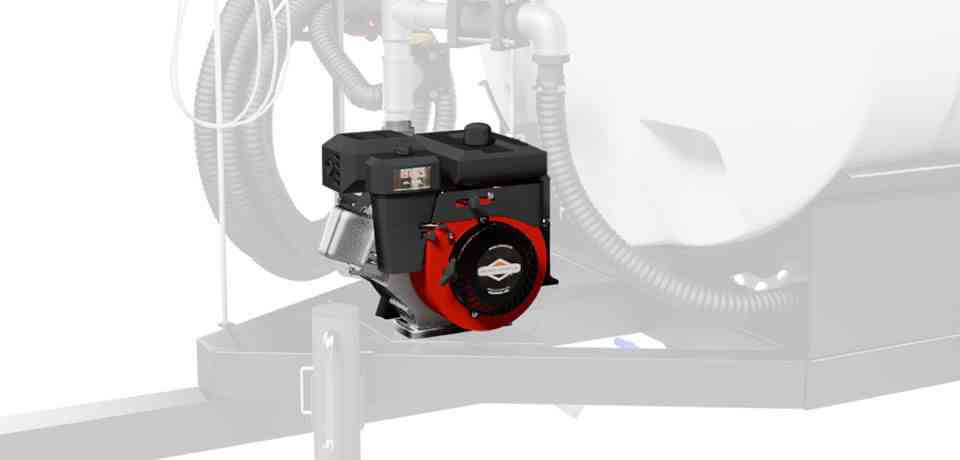

Briggs & Stratton Engine

Delivers More Power

The available Briggs & Stratton engine features an automotive-style air filter, cast iron cylinder sleeve, and dual ball bearings for longer life. The powerful 127cc engine with Overhead Valve Design (OHV) runs cooler and cleaner delivering more power, smoother operation, longer engine life, and improved fuel economy.

pump2

Motor, Pump, & Plumbing System

Enable Precision Application Of Water

The available rear spray system with brass nozzle(s) ensures a consistent application of water to the ground when configured with a motor and pump. The brass nozzle(s) provide superb coverage and can be adjusted to direct the spray as desired. Our full-size water trailers come standard with 3 nozzles on a steel spray bar that also include valves to selectively turn the outer nozzles on or off, or to adjust their flow. The compact-size water trailers have either 1 or 2 nozzles depending on the application.

spray-nozzle-image

Spray System & Brass Nozzles

Ensures A Consistent Application Of Water

The available rear spray system with brass nozzle(s) ensures a consistent application of water to the ground when configured with a motor and pump. The brass nozzle(s) provide superb coverage and can be adjusted to direct the spray as desired. Our full-size water trailers come standard with 3 nozzles on a steel spray bar that also include valves to selectively turn the outer nozzles on or off, or to adjust their flow. The compact-size water trailers have either 1 or 2 nozzles depending on the application.

spray-hose2

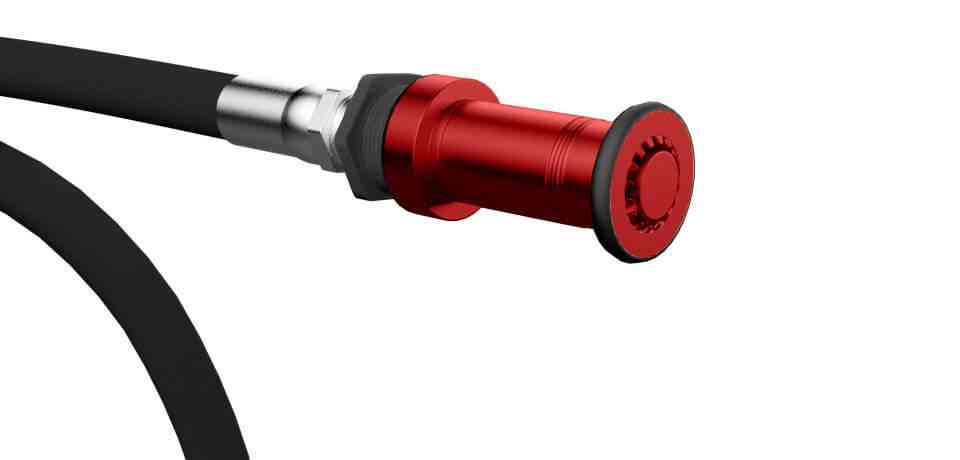

Convenient, Powerful Spray Hose

Perfect For Countless Applications

The available spray hose extends the functionality of trailers equipped with a motor and pump. The spray hose is perfect for cleaning projects, watering landscaping, filling troughs, fire protection, and countless other applications! Easily stores on the carrying rack and includes quick-couplers to connect and disconnect with ease.

flow-control

Easy On/Off Flow Control

Without Getting Off Of The Tractor Or ATV

A ratcheting valve and attached rope enables the tractor operator to turn the flow of water on and off without getting off of the tractor or ATV! Shutting off water flow when traveling over areas that have already been watered conserves water and eliminates inconsistent or over-watering that can be detrimental in certain applications. Add the optional electric on/off control for use inside a truck or other commercial applications!

auto-fill

Auto-Fill Shut Off

Saves Time, Hassle, & Worry

This new valve automatically shuts off the flow of water from a garden hose when the tank is full, saving time and worry. Now you can fill the tank overnight or continue on with your day’s work, and the trailer will be full and ready to spray when you are.

quick-fill

Quick Fill System

Easy Filling Of The Tank

For water trailers equipped with a motor and pump, the available quick-fill system allows easy filling of the tank from a pond or other available water source in mere minutes. These hoses feature quick couplers and conveniently stores on the carrying rack.

flag-icon

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Construction

ABI Water Trailer 500 Gal. Compact
GVWR 6,000 lbs.
Unit Weight (Empty) 1,025 lbs.
Loaded Weight (w/Water) 5,200 lbs.
Compact Construction Yes
Commercial Construction -
1 Axle Yes
2 Axles -
Suspension Torsion
Electric Brakes -
Fenders -
Brake & Tail Lights -
Full Drain Tank Yes
Custom Frame Yes
Tire Type Radial
Tire Specs WH235/85/16-8/6.5
# of Lugs 6
Frame Type Tube Steel
Hitch Type Pin or Ball

Options

ABI Water Trailer 500 Gal. Compact
127 cc Briggs Motor Standard
5 h.p. GX 160 Honda Motor -
1.5" Pump & Plumbing Standard
2" Pump & Plumbing -
1 Rear Spray Nozzle -
2 Rear Spray Nozzles Standard
3 Rear Spray Nozzles -
Spray Hose / Pond Fill Yes
Black Tank Option -
Farm / Property Only Yes
Commercial / On-Road -

Misc

ABI Water Trailer 500 Gal. Compact
D.O.T. Compliant -
Tow Vehicle Type Tractor
Warranty 36 Months
Made In USA Yes

Dimensions

ABI Water Trailer 500 Gal. Compact
Unit Length 142"
Unit Width 72"
Unit Height 65"

Briggs & Stratton Motor/Pump

ABI Water Trailer 500 Gal. Compact
127cc Motor Yes
Overhead Valve Design Yes
Cast Iron Cylinder Sleeve Yes
Poly Pump/1.5" Ports Yes
Self-Priming Centrifugal Yes
Flow to 190 GPM Yes
Pressure to 40 PSI Yes
Suction Lift to 15' Yes
Pump Website Pump Website
Motor Website Motor Website
