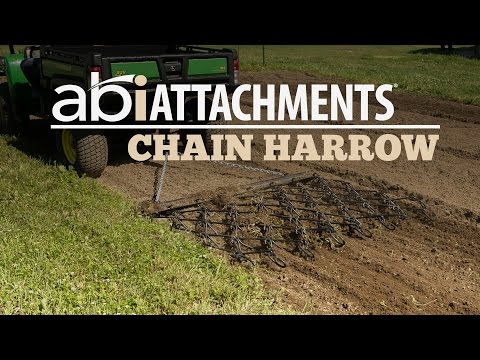

ABI ATV Tow-Style Chain Harrow
An economical method to lightly harrow gardens, food plots, pastures, paddocks, lawns, horse arenas and round pens, ball fields, driveways, trails, and more. Available with a pull-behind style drag bar. The harrow mat itself is reversible and can be flipped for three levels of aggressiveness. Level one is most passive, with the tines facing upward. Level two allows the tines to face downward but also to release under pressure. Level three is the most aggressive, with the tines fully locked downward when pulled forward. The harrow mat is made of 1/2″ inch thick chain, made from high-carbon heat-treated steel. Each mat is 4 feet long from front to back, and the tines themselves measure four inches long. Backed by a 24-month limited warranty!
Related Products
Hard-wearing and easy-to-attach, this traditional implement has 3 levels of aggressiveness.
Configure for Tractor, ATV, or UTV
Achieve ultimate seed germination & growth
For ATVs, UTVs, & Sub-Compact Tractors, #1 Selling Arena Drag
4.5′, 5.5′, 6.5′, 7.5′ Widths
For ATVs, UTVs, & Sub-Compact Tractors
4.5′, 5.5′, 6.5′, & 7.5′ Widths
4-Speed - Ground Driven
For Lawn Tractor, ATV, UTV, Golf Cart, or Sub-Compact Tractor – Up to 4 Horses
Our Better Way:
Buy Direct from ABI
Ship Direct to You
Pay Over Time Financing
Customer Support
Trusted by the Pros
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right
attachment for your equipment.
attachment for your equipment.
Specifications
| ATV Chain Harrow | 4 ft. | 6 ft. | 8 ft. |
|---|---|---|---|
| Min. CC | 250 CC | 300 CC | 350 CC |
Attributes | |||
| Product Type | Chain Harrows | Chain Harrows | Chain Harrows |
| Connection | Pin Hitch / Drawbar | Pin Hitch / Drawbar | Pin Hitch / Drawbar |
| Power Range | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor, 200 – 400 cc ATV/UTV, 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor, 200 – 400 cc ATV/UTV, 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor, 200 – 400 cc ATV/UTV, 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV |
| Tow Vehicle | ATV / UTV, Tractor, ATV, UTV, Sub-Compact Tractor, Compact Tractor | ATV / UTV, Tractor, ATV, UTV, Sub-Compact Tractor, Compact Tractor | ATV / UTV, Tractor, ATV, UTV, Sub-Compact Tractor, Compact Tractor |
| Size | 4Ft (48In) Width, 6Ft (72In) Width, 8Ft (96In) Width | 4Ft (48In) Width, 6Ft (72In) Width, 8Ft (96In) Width | 4Ft (48In) Width, 6Ft (72In) Width, 8Ft (96In) Width |
| Other Attributes | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed |
