Profile Blade™ Attachment

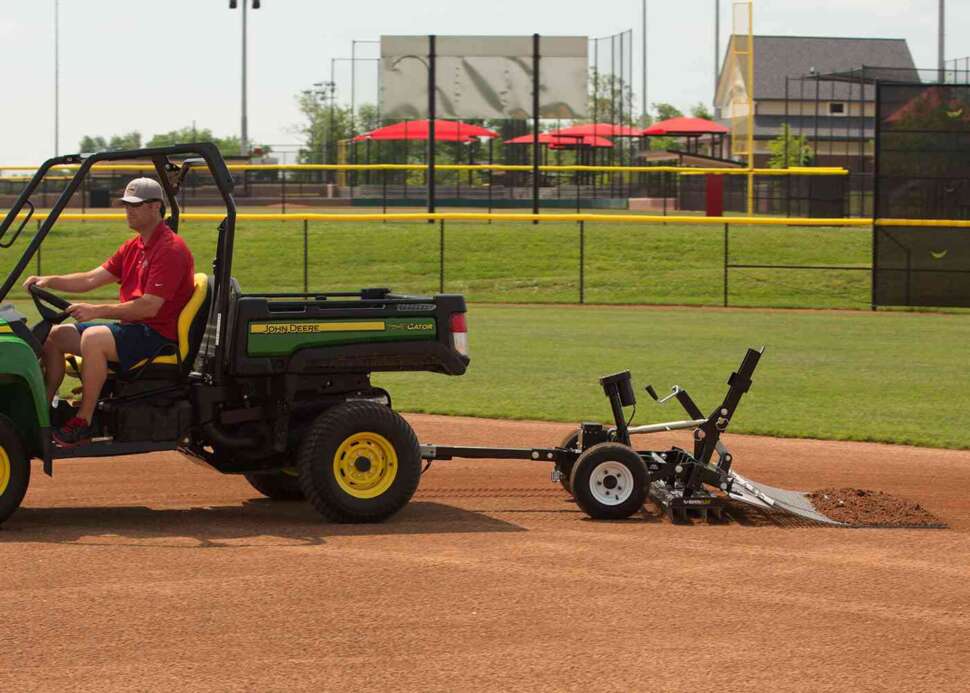

For seasonal renovation work, the patent-pending Profile Blade attachment yields unparalleled de-compaction results slicing the complete profile of the infield material from a 1/2 inch to 3 inches beneath the infield surface. This is accomplished without displacing the material, reducing the need to laser grade after this work is complete. Occasionally de-compacting the infield surface encourages a quick draining and consistent playing ball field. Profile Blades also have the ability to ‘cut’ weeds and grass at the root-level to remove creeping grasses from infields and warning tracks as well as remove “lip” build-up along the turf edge.

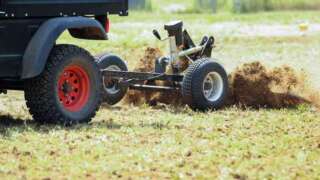

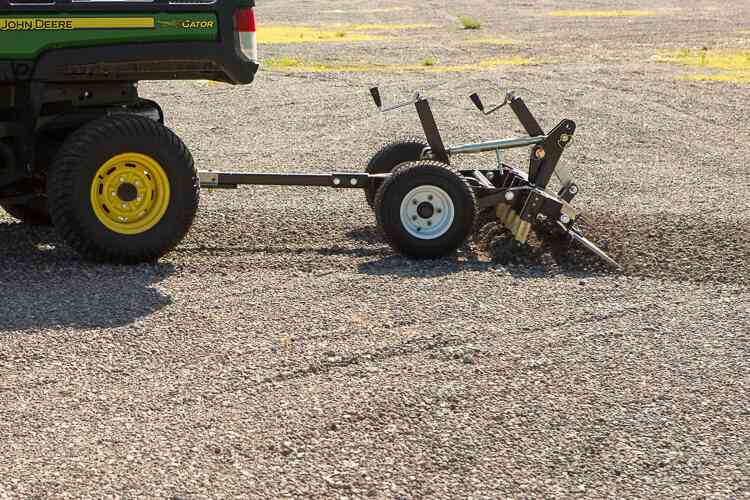

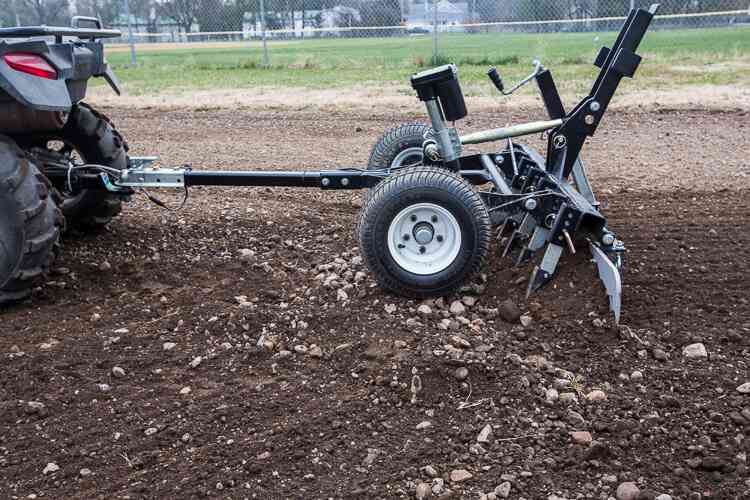

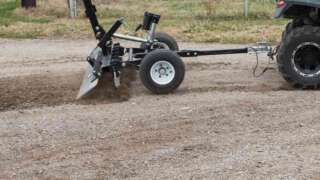

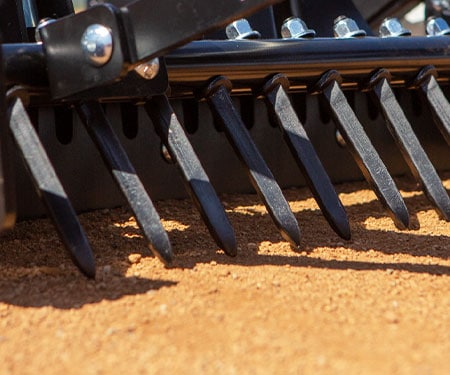

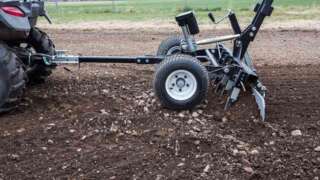

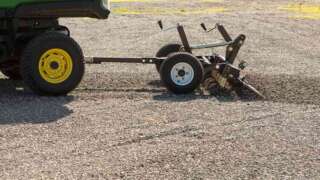

Off the field, the Ripper Teeth give this tool the teeth for tough dirt work, when swapped out with the VibraFlex or Profile Blade Attachments. Now the Rascal can rejuvenate a parking lot, eliminate potholes & washouts, or prepare soil for seeding. The ripper teeth are adjustable from 0″ – 7″ to get to the bottom of the most demanding jobs. The bolt on tips are replaceable for reduced maintenance cost.

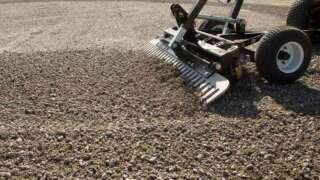

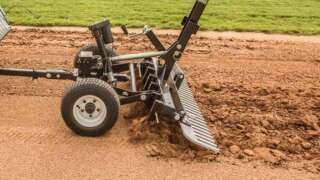

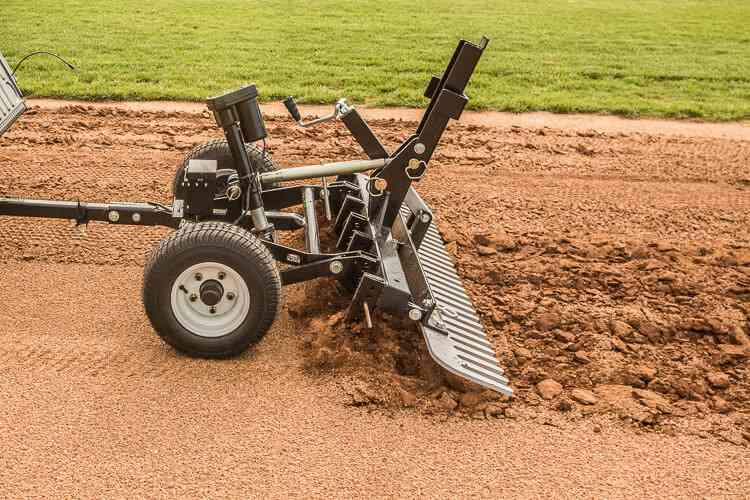

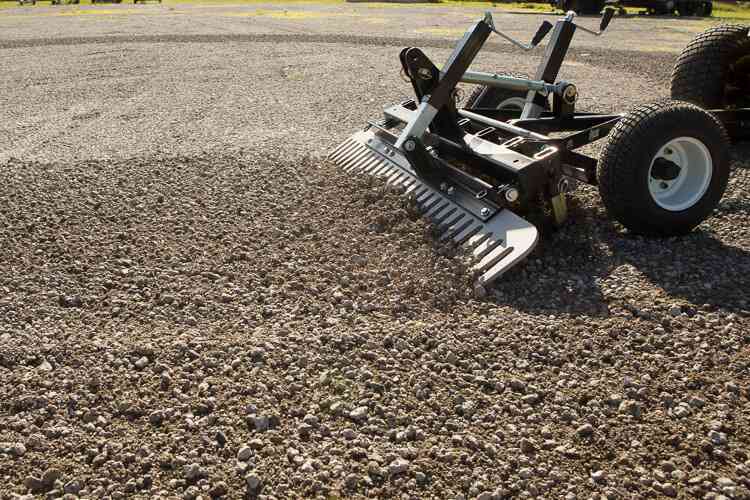

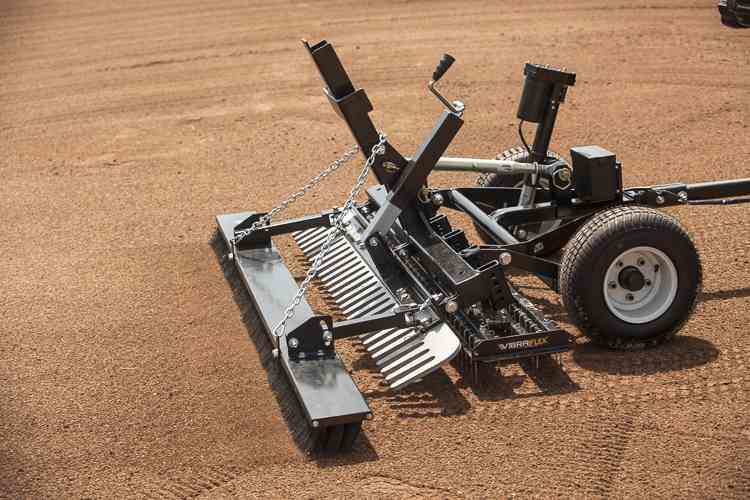

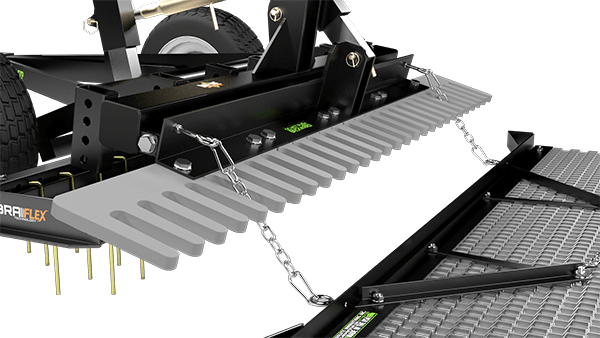

Multi-Function Pivoting Rake

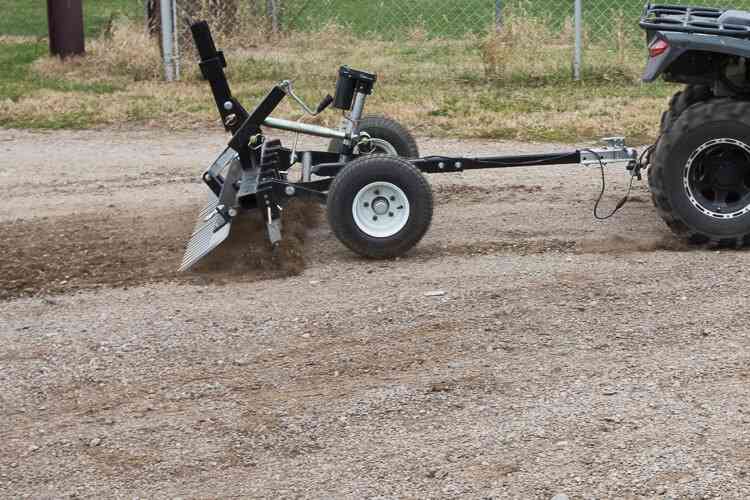

The multi-function rake, can be manually pitched via the top jack, to adjust it’s ground contact angle, enabling it to quickly finish renovation work by breaking up and smoothing out dirt clods, pulling loose material into low areas, pulling vegetation debris into piles, and much more. Off of the field, it excels in grading and finishing gravel parking lots and more! The rake is constructed of 1/2″ thick hardened-steel for long life and is replaceable in 1′ sections.
Patented Wheel Lift System

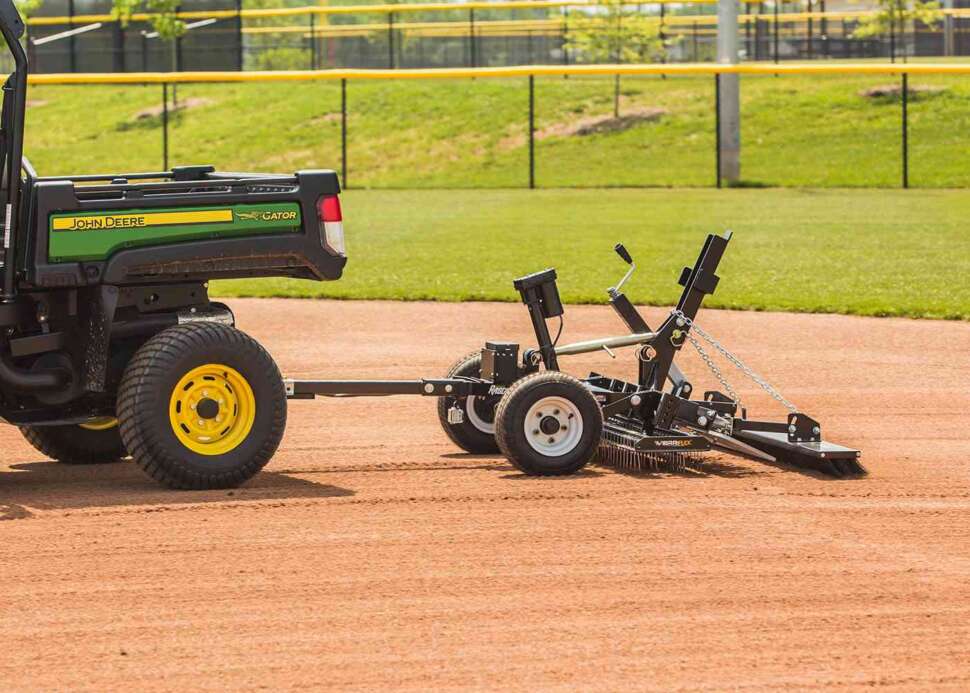

The patented Wheel-Lift System provides precision control over the Infield Rascal and is operated either with a manual jack or the available electric actuator. This system raises and lowers the Rascal chassis for easy transport around the facility, but most importantly, it holds underbelly attachments at a consistent ground-penetration depth during operation. The available electric actuator enables on-the-fly control of the Rascal from the seat of the tow vehicle. The actuator is a huge time saver when used during renovation work or for multi-field facilities. The Rascal rides on large 16.5 inch tall by 8 inch wide tires to ensure consistent grooming results on the field and efficient transport off the field. The large wheels additionally stabilize the Infield Rascal from sinking into soft material or pitching side-to-side ensuring consistency of grooming depth, the width of the unit, especially when maneuvering tight turns. These are high quality wheels with replaceable hubs, spindles, and bearings for long service life.
Welded tube steel
At the core of the Infield Rascal® MVP is a welded main frame built upon 3″ x 3″ tube steel. The frame is fully welded, except at pivoting joints, for rugged and long lasting service life. This is truly a commercial grade piece of equipment built to take the abuse of hours of daily use.

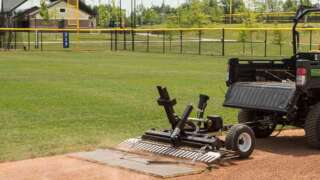

Finishing Attachments Carrier

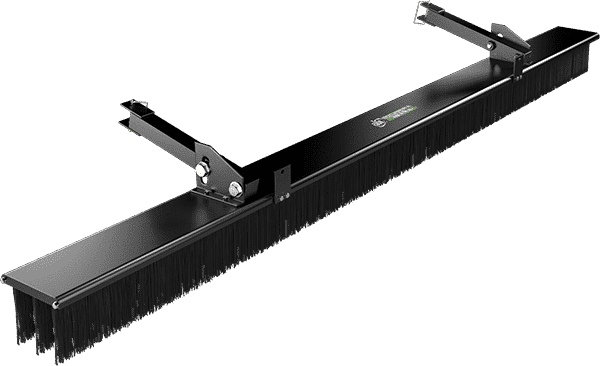

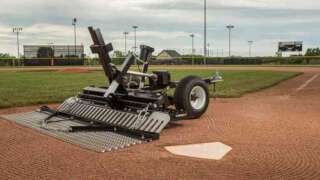

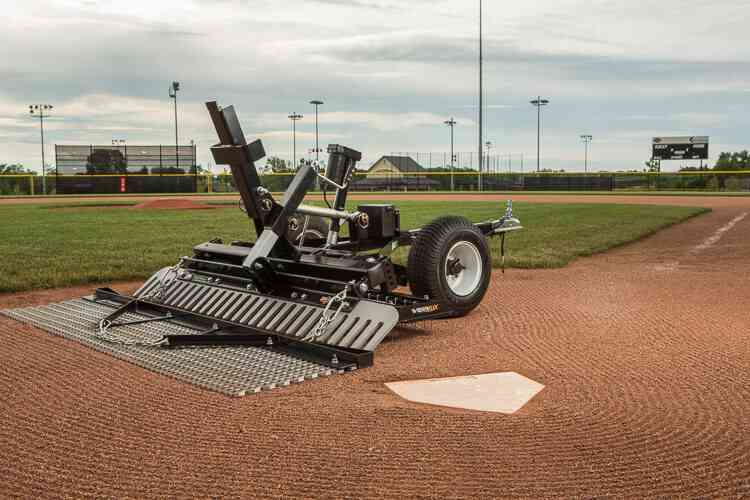

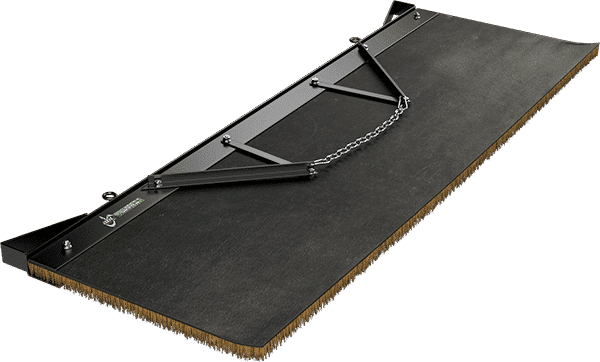

The Infield Rascal®’s Finishing Attachments Carrier holds the optional drag mats and broom off the ground for easy transport. These options include a Rigid Drag Mat, Coco Drag Mat, XD Drag Mat & Fine Finish Broom. This is especially handy in multi field complexes.
Ground Contact Adjustment

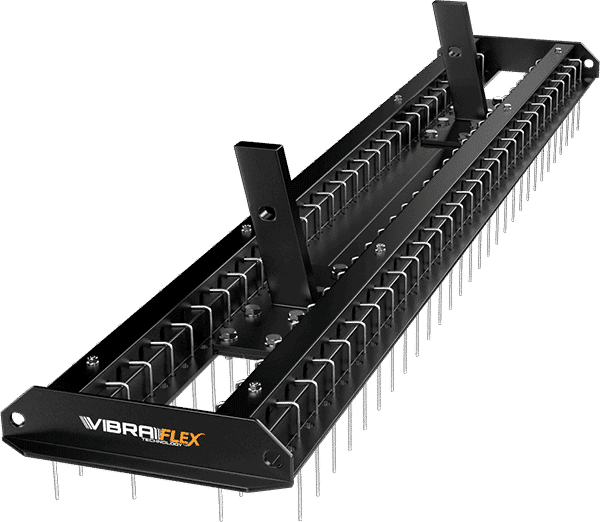

The turn-knuckle on the top of the Infield Rascal® is designed to enable adjustment over the angle in which the ground engaging components come in contact with the ground. This adjustment allows the operator to flatten out the VibraFlex™ groomer for proper operation or adjust the pitch of the profile blades or ripping teeth. This feature is also a very handy, no tools required, way to adjust for varying hitch heights when using multiple tow vehicles.
36-month Commercial Warranty
At the core of the Infield Rascal MVP is commercial-grade construction and superior craftsmanship. This chassis is designed for daily use and is built tough enough to take on the demands of all sports turf facilities. And just to prove how much we believe in the quality of this tool, ABI backs it with a 36-month limited warranty. This warranty covers both consumer and commercial use and is the longest infield groomer warranty in the sports turf industry! See warranty documentation for details.
Manufactured Right Here
You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.
|Frame Construction||Welded 3" x 3"|
|Wheels||16.5" tall x 8" wide|
|Unit Weight||492 lbs.|
|Minimum CC/HP||450 cc / 20 hp|
|Hitch Type||2" Ball Standard (Pin Hitch also included)|

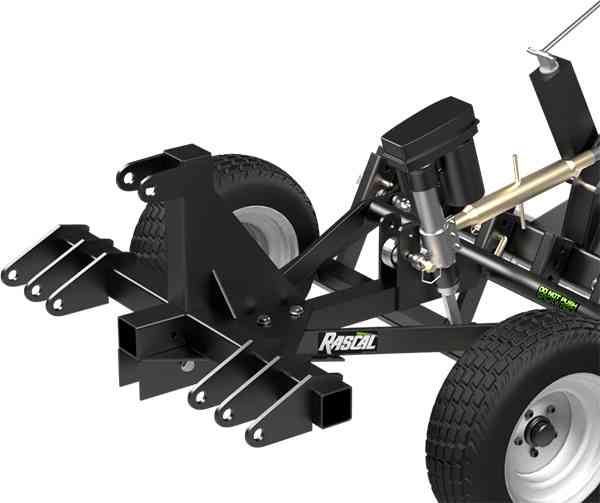

|3-Point Hitch:||Optional (For CAT 0 & I)|
|Infield Rascal MVP|
|Product Type||Infield Groomers|
|Power Range||18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV|
|Tow Vehicle||ATV / UTV, Tractor, ATV, UTV, Sub-Compact Tractor, Compact Tractor|
|Size||5Ft (60In) Width|
|Other Attributes||NO Hydraulics Needed, NO PTO Needed, Wireless Remote Optional, Wired To Battery Optional|
|Market||Sports Field Managers|
