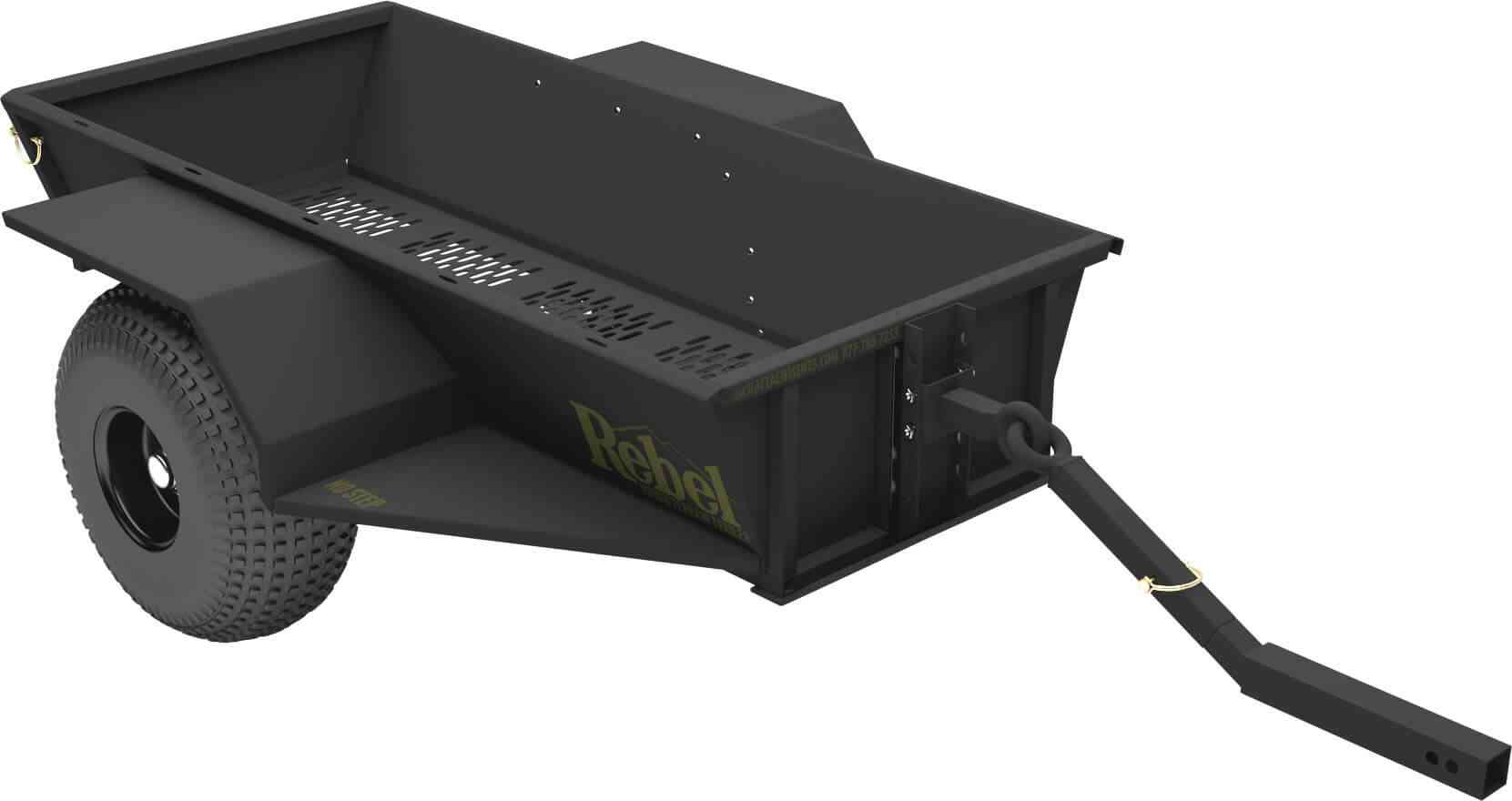

ABI Rebel Trailer

This trailer goes where others cannot!

Need a Quote and Information?

ATV Trailer That Attacks Extreme Rough Terrain

When it comes to off-road ATV trailers, just about all of them can be pulled down the average trail. But what happens when the average trail comes to an end? Most ATV trailers can’t handle the extreme terrain that comes along with remote locations. That’s why we built the Rebel Trailer. It breaks all the rules and goes where it’s not supposed to. It’s only limitation is your ATV. The key to the Rebel Trailer’s abilities is its patented hitch. Normal ball and drop pin hitches limit maneuverability. They can easily get bound up and break. But the Rebel’s hitch and tongue design allows a fully articulating range of motion, equipping you and your ATV to get wherever you dare to go. The Rebel was designed by extreme riders and hunters for extreme riders and hunters, making it the perfect companion during open season. Now you can extract a deer, transport decoys, tree stands, and feeder grain, or remove an injured hunter from deep within a dense woods. Click the “features” tab above to learn about all the innovative features that enable this trailer to attack any terrain you dare to challenge. Requires a 2″ female receiver on ATV / UTV.
ABI Rebel Overview

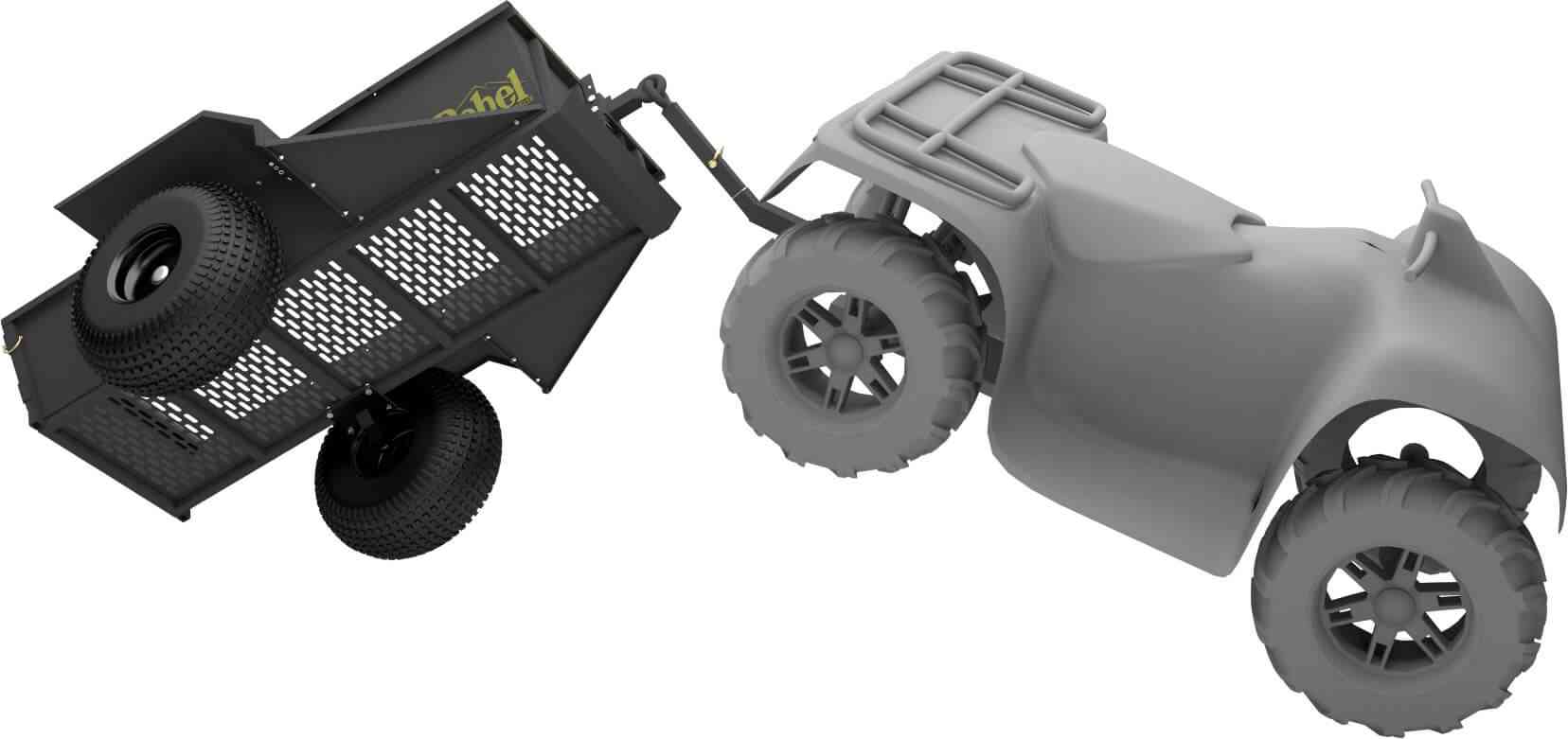

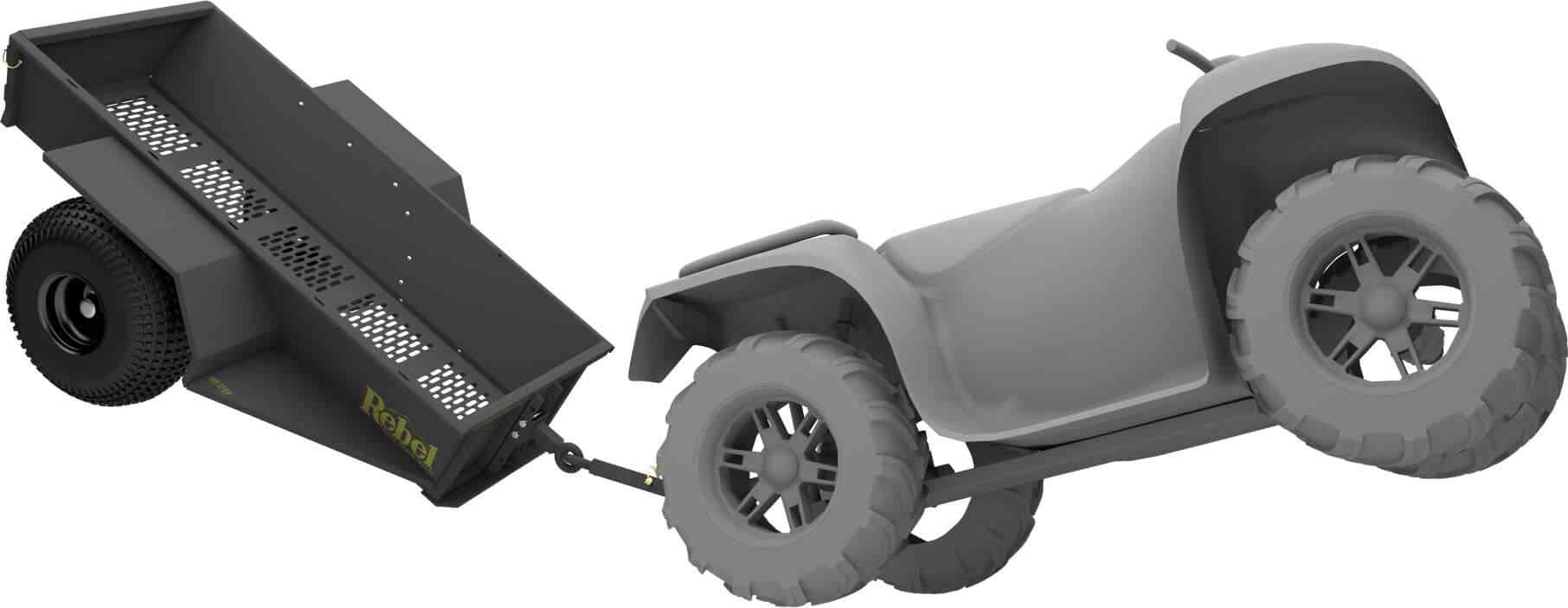

Patented Fully Articulating Adjustable Hitch System

What makes the Rebel so unique and maneuverable is the patented hitch assembly. This is truly the hitch with no limits! Other trailers come with a ball or drop pin hitch. These hitch types limit the up and down and side to side movements of these trailers. These limitations cause traditional trailers to get stuck or even damaged in situations where the ATV could still keep on going. With the Rebel’s fully articulating hitch, your only limitations will be those of your ATV! The Rebel’s patented hitch assembly allows for extreme maneuverability side to side and up and down so that the trailer can follow all sorts of rough terrain environments. The bottom line is that if your ATV can go there, the rebel trailer from ABI will follow.

ABI Rebel Trailer
ABI Rebel Trailer
ABI Rebel Trailer
ABI Rebel Trailer Bed

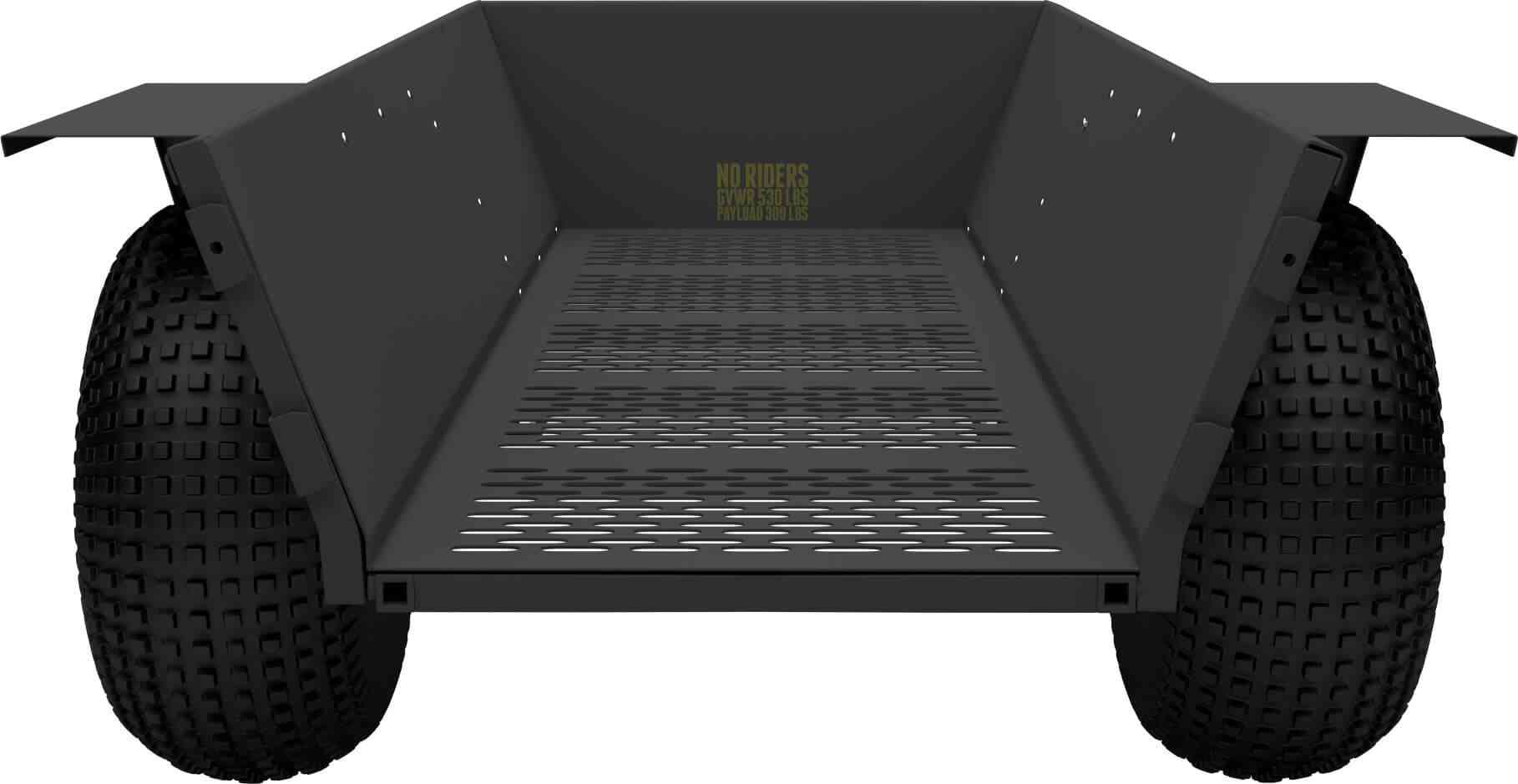

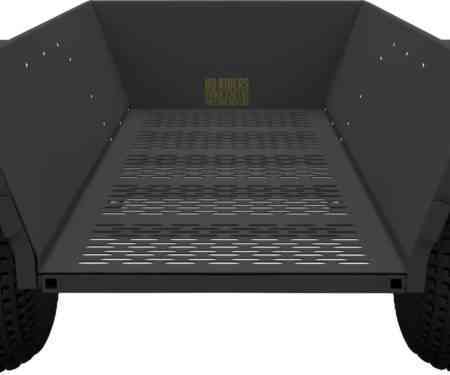

Cargo Bed with Flared Sides & Punched Floor

The bed of the Rebel Trailer is specifically designed to haul hunting equipment and game in and out of rough wooded terrain. It is low to the ground to give your load a secure ride and to keep the Rebel from being top heavy. The bed also has flared sides for more capacity. The floor of the Rebel is punched which allows drainage of water and animal blood as well as giving you plenty of anchoring points for ropes and bungee cords. The cargo bed is 21” wide at the bottom x 64” Long x 12” on the sides. The bed flares out to 28″ wide at the top. It has a 10.8 cu ft capacity if leveled off at the top of the sides. (Struck Capacity) There dozens of anchor points throughout the trailer bed for securing cargo.

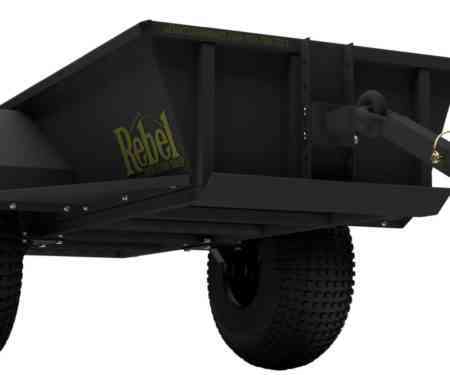

ABI Rebel Trailer - Clearance

Clean Underbelly with 13in of Ground Clearance

In designing the Rebel atv trailer, particular attention was paid to ensure the underbelly was clean and free of anything that could catch on rocks, logs or debris. This design provides a true 13″ of ground clearance enabling the Rebel Trailer to navigate over just about any obstacle.

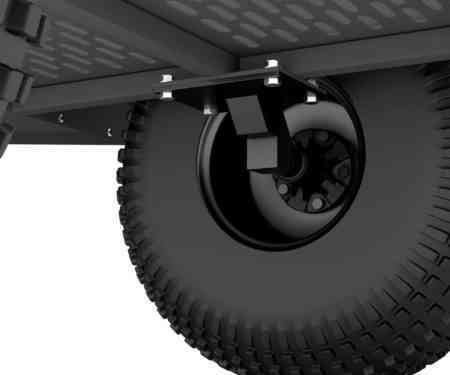

ABI Rebel Trailer - Wheel Mount

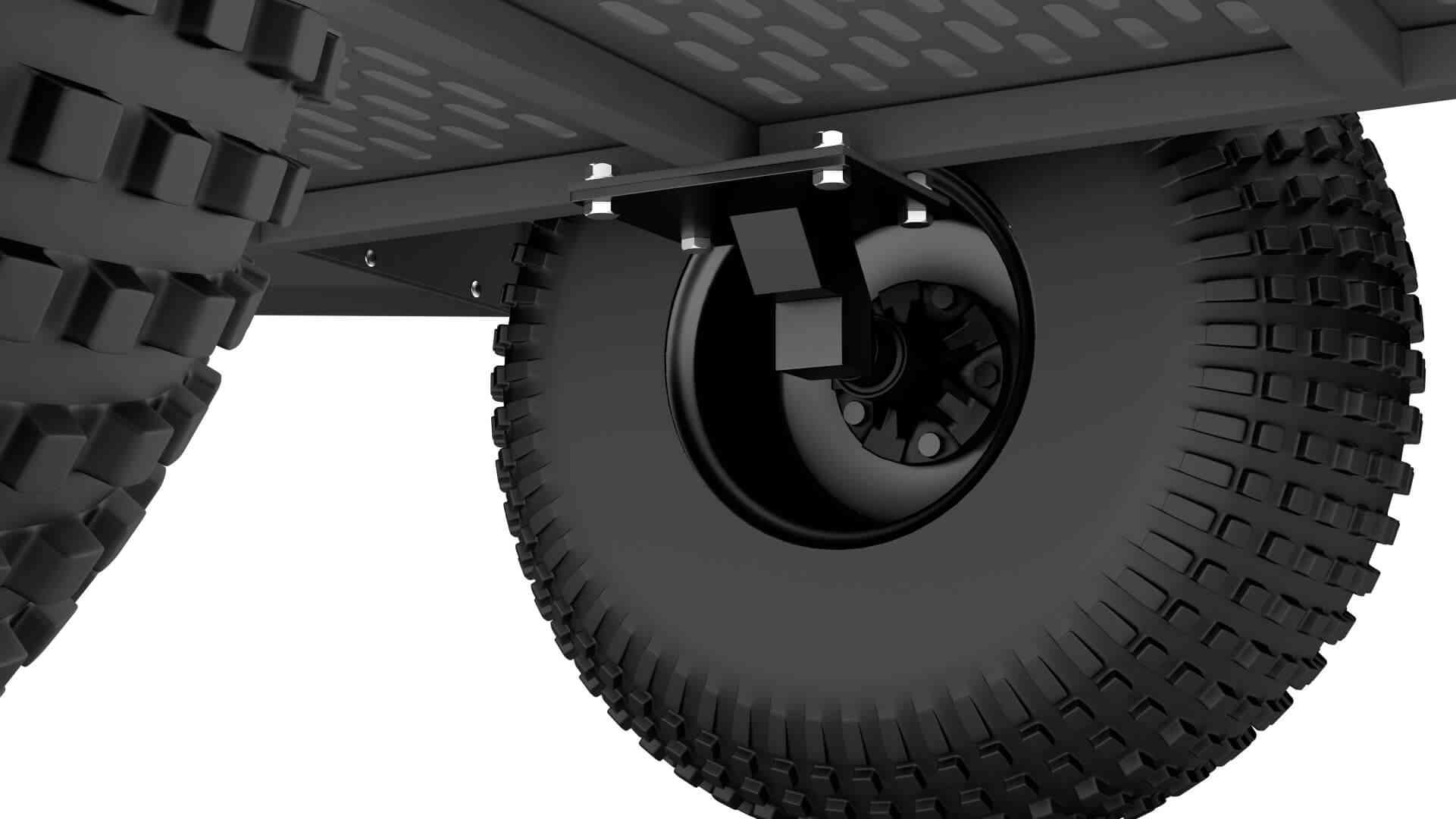

Wheel Mounting System - High Speed Spindles & Serviceable Bearings

The wheel mounts have been engineered to maximize ground clearance and eliminate the need for a traditional axle. This design gives the Rebel a clean underbelly and keeps it from getting hung up. With our extreme duty and serviceable wheel bearings, and 1,000 lbs (rated) high speed spindles, the Rebel can be easily maintained and and handle the punishment of years commanding through rough terrain.

ABI Rebel Trailer - Wheel

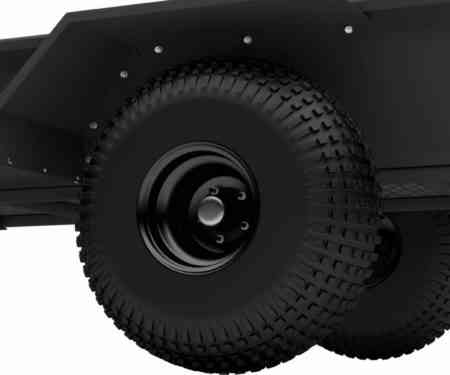

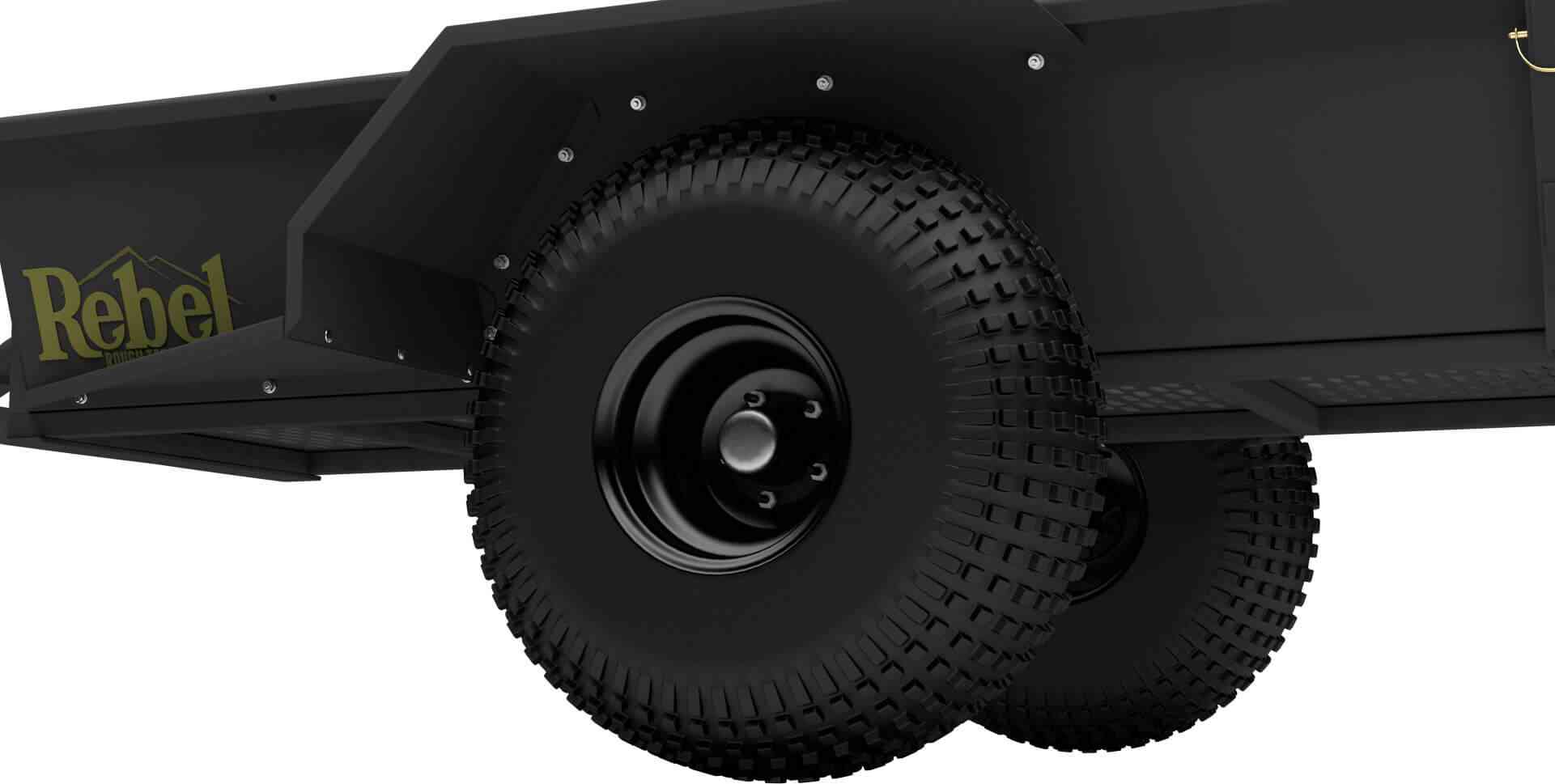

22in ATV Tires

Large 22in ATV tires provide suspension when going over obstacles, flotation through wet ground and the ability to easily scale most any obstacle in their path.

ABI Rebel Trailer - SKid Plate

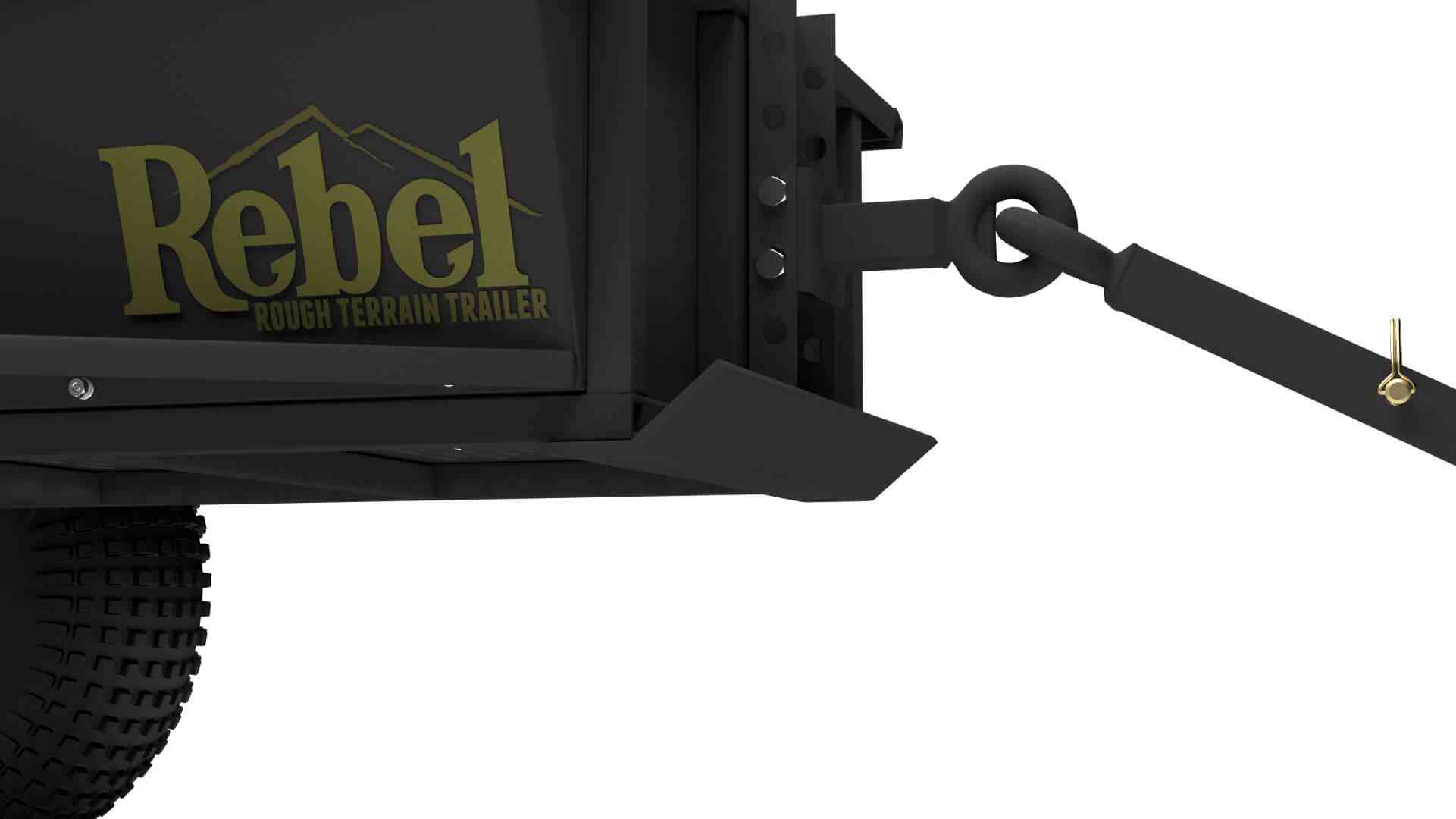

Skid Plate

A skid plate, mounted to the front of the trailer, gives the Rebel the ability slide over logs, rocks and debris. It further protects the trailer from hitting the ground on extreme terrain where the atv and trailer are on different planes.

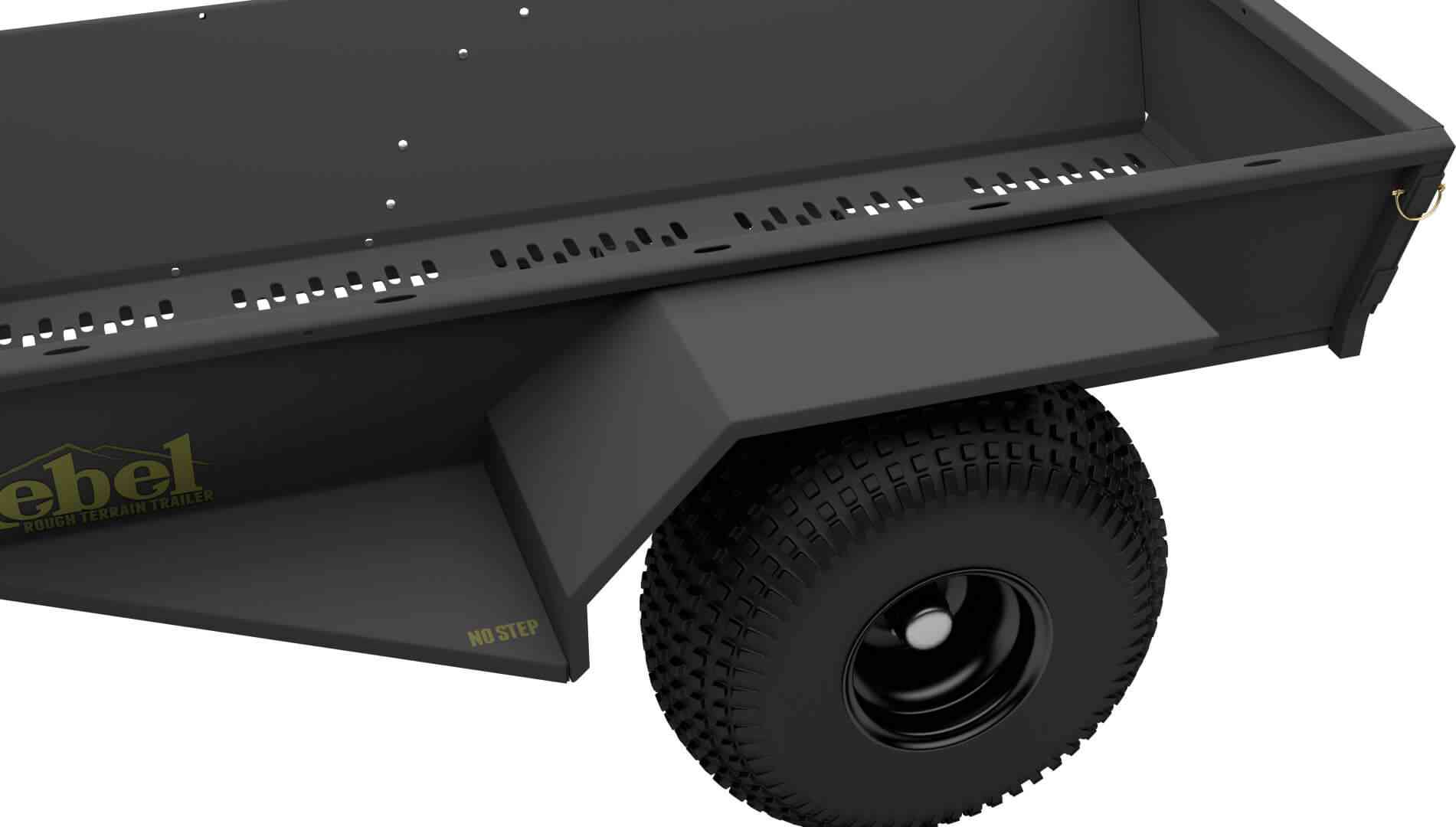

ABI Rebel Trailer - Fender

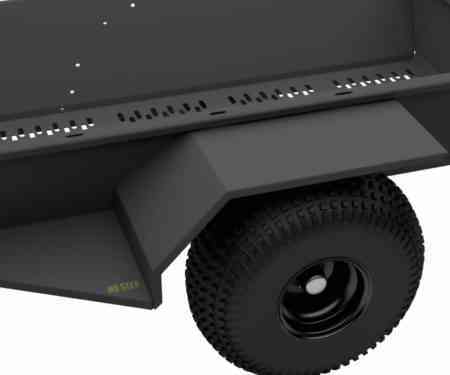

Tree Kickers & Fenders

To make it even easier to navigate where the trail ends, we added patented tree kickers and ridged fenders to help push the trailer straight when caught up against a tree or other immovable object. No more catching your tires and having to get off and pull the trailer sideways. No more damage to the sidewall of the trailer! The tree kickers and ridged fenders leverage the power of the ATV to pull you through densely wooded areas with ease. The fenders additionally prevent mud and other debris from being flung into the air.

ABI Rebel Trailer - Tailgate

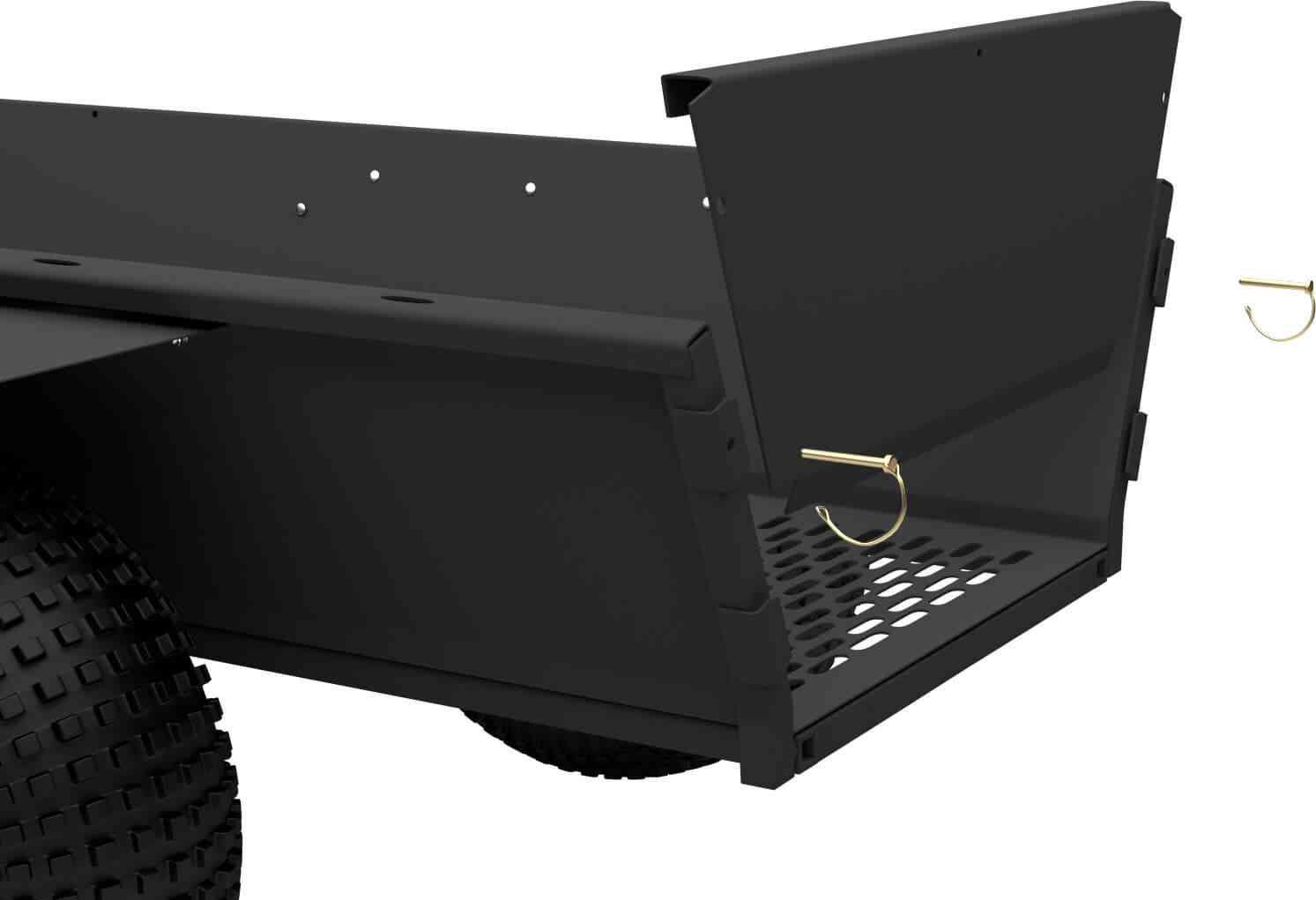

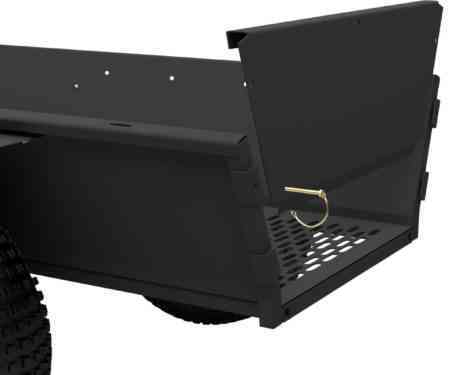

Removable Tailgate

To make loading and unloading easier or to haul longer objects, the end gate can be removed and clipped to the side of the bed. The tailgate includes two locking pins.

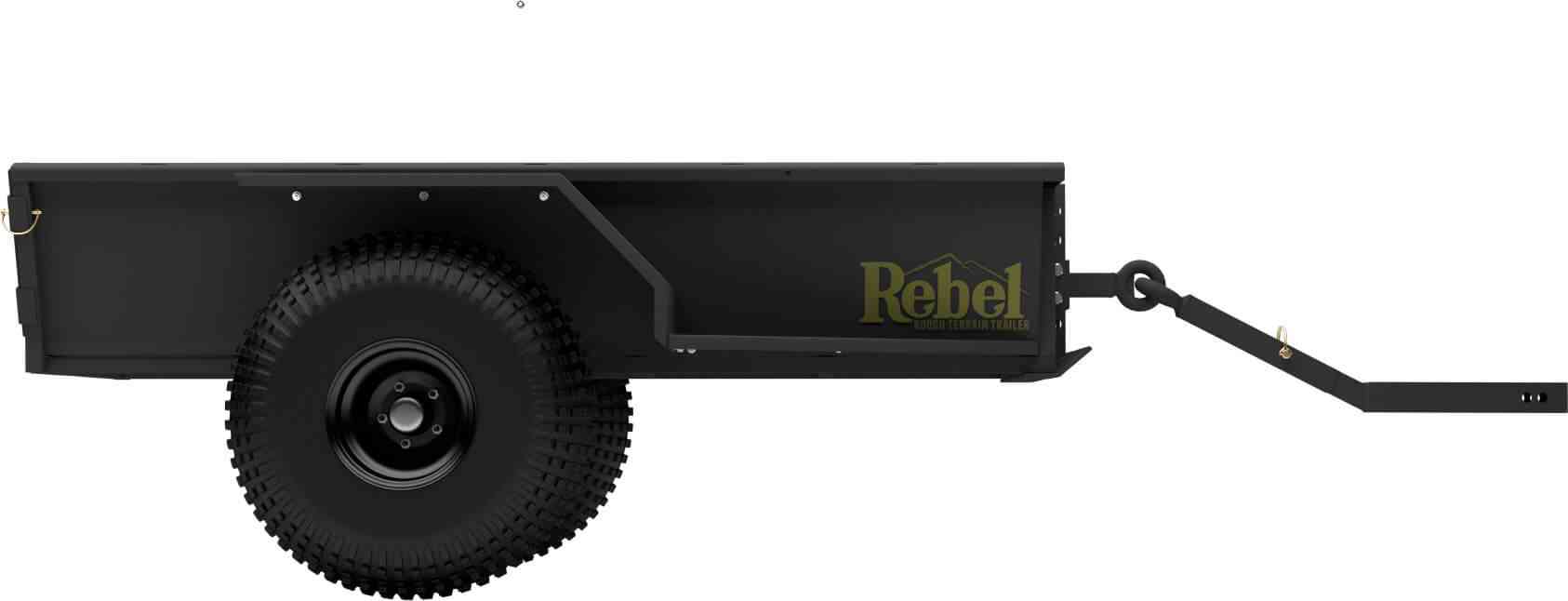

ABI Rebel Trailer - Low Center

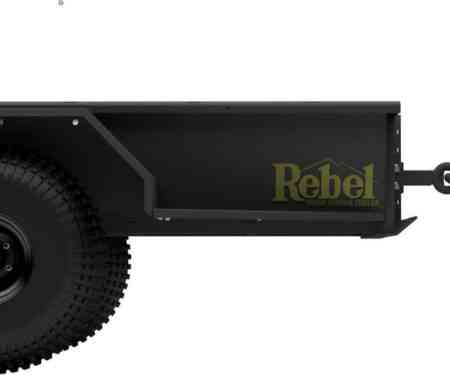

Low Center of Gravity

The bed of the Rebel Trailer is low to the ground to give your load a secure ride and to keep the Rebel from being top heavy. When navigating though rough terrain it is paramount to have a low center of gravity to prevent tipping.

Low Sheen Powder Coating

The bed of the Rebel Trailer is low to the ground to give your load a secure ride and to keep the Rebel from being top heavy. When navigating though rough terrain it is paramount to have a low center of gravity to prevent tipping.

Direct To Property

Buy Factory-Direct - We Ship To Your Property

ABI attachments are sold direct to the customer over the phone and internet and shipped via a common-carrier truck to your property! This factory-direct business model eliminates the middleman and dealer markups allowing ABI to provide better attachments for the money. Buying direct also ensures that you’re not limited to a local dealers in-stock inventory, but instead you have access to every model, size, and configuration we offer and you can have it shipped to you in just a few days. We think this is a better way to do business, as it gives you more options and you get to work directly with the people who design and build attachments.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty - Farm, Ranch, & Commercial

24-Month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 24-month limited warranty on this product. See warranty documentation for details.

ABI Workman XL - Winch

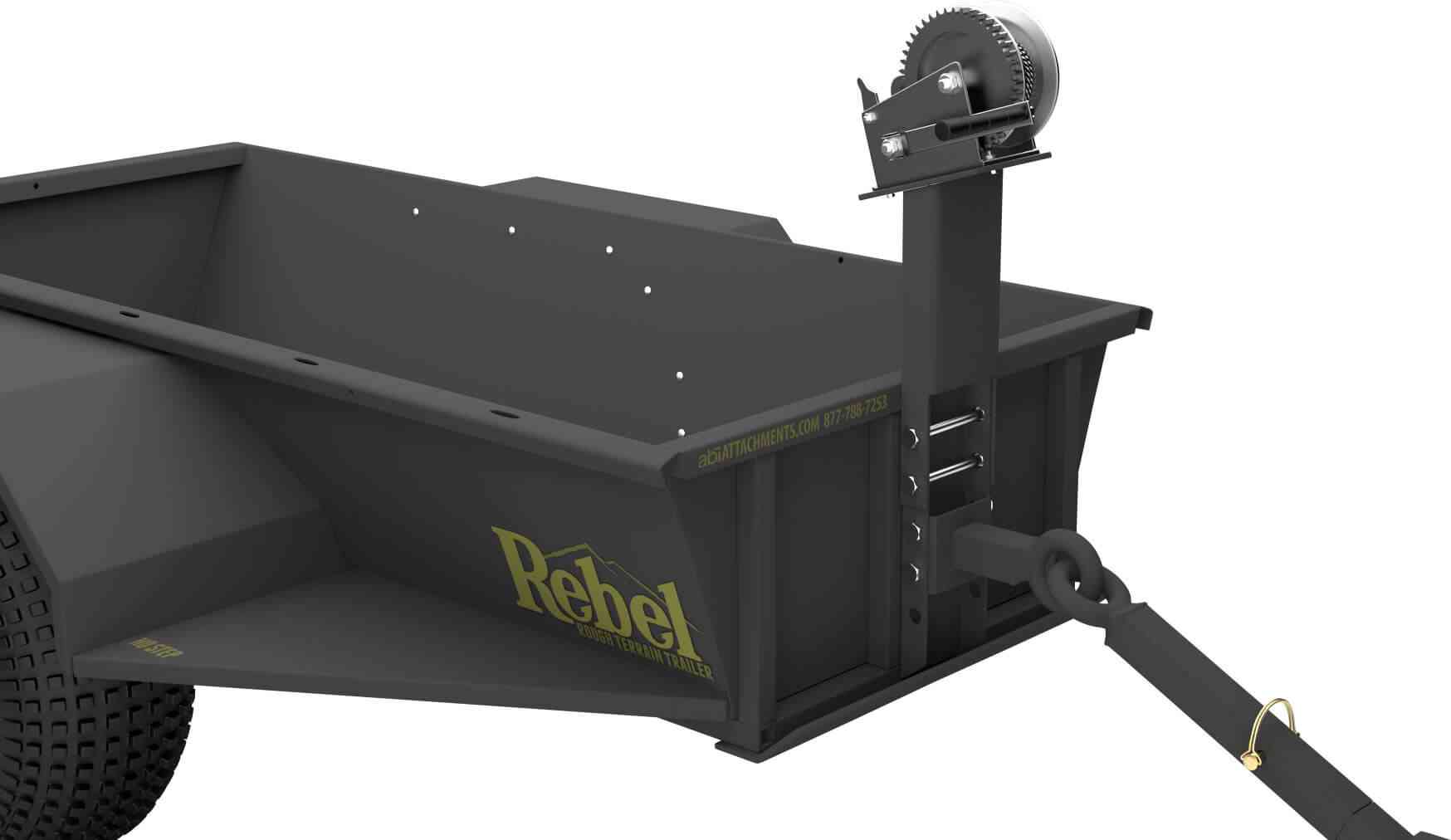

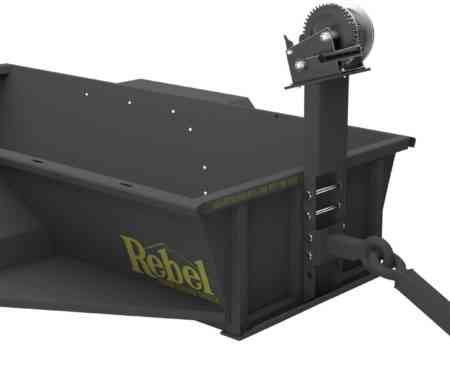

Winch Assembly

An optional manual winch assembly can be mounted to the Rebel trailer to assist in pulling heavy game or other cargo into the trailer.

Part Rebel Trailer
GVWR 680 lbs.
Payload 400 lbs.
# of Axles 0 (Uses innovative wheel mounting system instead)
# of Wheel Mounts 2
# of Tires 2
Tire Size 22" x 11" x 8" 2 ply | Rated 340 lbs. each at 5 P.S.I.
Ground Clearance 13"
Bed Capacity 10.8 cu ft (Struck)
Bed Construction Welded 14 Ga. Steel
Removable Tailgate Yes
Minimum C.C. 350 4WD
Hitch Type Requires a 2" female receiver on ATV / UTV
Finish Color Matte Black
Powder Coating Yes
Overall Dimensions 49" W x 98.5” L x 27” H
Bed Dimensions 21” W x 64” L x 12” H
Bed Top Flare Dimensions 28” Top of Bed Opening
Shipping Dimensions & Weights Box 1: 23” W x 25” L x 22” H - 75 lbs.
Box 2: 12” W x 24” L x 8” H - 52 lbs.
Box 3: 32” W x 70” L x 14” H - 139 lbs.
Unit Weight 266 lbs.
Product Ships Not Assembled
Assembly Time About 1 Hour
U.S.A. Made Yes
Warranty 2 Year Limited
Pricing & specifications are subject to change without notice.
