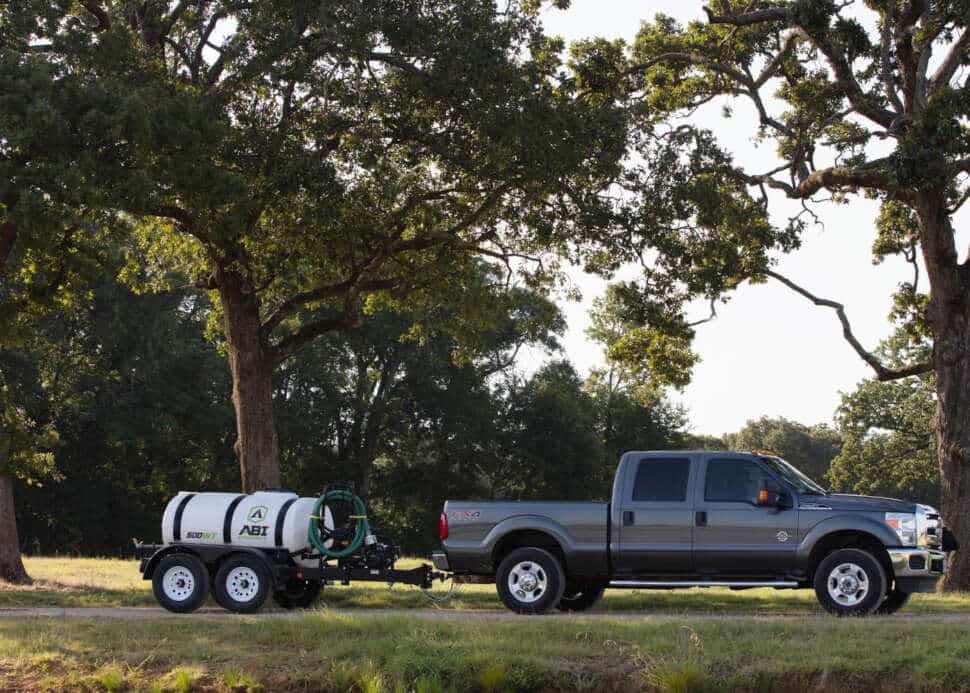

Truck 500 Gallon D.O.T Water Trailer
Truck 500 Gallon Water Trailer Dirt Road
Truck 500 Gallon Water Trailer Spraying Dirt Road
500 Gallon Water Trailer Spray Nozzles
Truck 500 Gallon Water Trailer Watering Landscape
Truck 500 Gallon Water Trailer Dirt Road
500 Gallon Water Trailer
500 Gallon Water Trailer Spray Nozzles
Truck 500 Gallon Water Trailer Watering Landscape
Truck 500 Gallon D.O.T Water Trailer
Truck 500 Gallon Water Trailer Spraying Dirt Road
ABI Water Trailers (D.O.T. Models)
Truck 500 Gallon D.O.T Water Trailer
Truck 500 Gallon Water Trailer Dirt Road
Truck 500 Gallon Water Trailer Spraying Dirt Road
500 Gallon Water Trailer Spray Nozzles
Truck 500 Gallon Water Trailer Watering Landscape
Truck 500 Gallon Water Trailer Dirt Road
500 Gallon Water Trailer
500 Gallon Water Trailer Spray Nozzles
Truck 500 Gallon Water Trailer Watering Landscape
Truck 500 Gallon D.O.T Water Trailer
Truck 500 Gallon Water Trailer Spraying Dirt Road

500 Gallon D.O.T. Water Trailer

— October Promo —
Save $500 on total order

Need a Quote & Information?

Categories: , Tags: , , , , ,

500 Gal. D.O.T.Water Trailer

The 500 gallon dual axle D.O.T. ABI Water Trailer hauls and applies large volumes of water around the farm, property, job site, or nearly anywhere your truck can take you. This commercial-grade trailer, built on a custom proprietary frame, can be towed by a tractor, truck, or SUV and is fully D.O.T. compliant for use on public roadways. It is powered by an engine and pump to apply variable amounts of water from either the rear spray nozzles (wide spray) or the available spray hose (spot application). Additionally, it has the ability to turn the flow of water on and off, on-the-fly, from the seat of the tow vehicle. Common uses include dust abatement, irrigation, hydration, watering, washing, and supplying in applications such as construction sites, horse arenas, general property, nurseries, ballfields, pools, parks, farms, and more! The ABI Water Trailer comes loaded with features making this an invaluable and versatile trailer for your water hauling and application needs. A potable (drinking) water configuration is also available.
500 Gallon D.O.T. Water Trailer
500 Gallon Water Line Drawing

Powerful Engine

208 CC

Pump & Plumbing

2 in

Spray Nozzles

3

Limited Warranty

36-month

Our full line of ABI Water Trailers excel at arena moisture management, landscaping, dust abatement, property fire protection, cleaning equipment, stalls, and buildings, transporting potable water, and more! Whatever is on your list of jobs to accomplish with your ABI Water Trailer, we’ve loaded it with thoughtful features that help you get them done quicker and better than before. With quick and convenient filling capabilities, easy-to-use hoses and spray nozzles, and a full-drain tank on our custom-built frame, our water trailers are easy to fill, easy to operate, and easy to own!

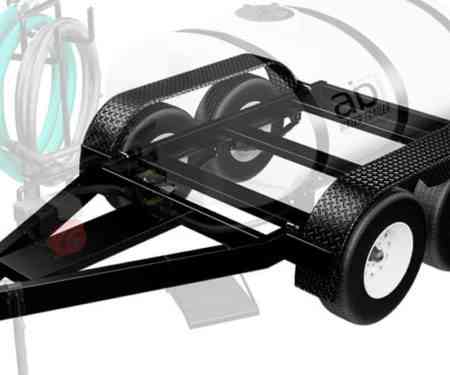

500 Gallon Water Trailer Frame

Purpose-Built Rugged Steel Frame

Built Better Than The Rest

No matter how you spin it, a water trailer is only as good as the frame it’s built upon. Our frames are purpose-built and are NOT converted car haulers or a purchased component (like many competitors’). We design and build our own frames, giving us complete control of durability, safety, and functionality. No matter the size, our frames are constructed of fully-welded steel (no wood!), have an adjustable hitch with choice of coupler, feature leaf-spring or torsion suspension, and come with electric brakes on all D.O.T. or 1600 gallon models.

500 Gallon Water Trailer Tank

Full-Drain Custom Molded Tank

Fully Drain For Easy Cleaning

Each tank is rotationally-molded and fully drains for easy cleaning. Many competitors’ tanks do not fully drain, making it nearly impossible to throughly clean (needed for potable water usage) or flush out sediment from filling the tank with pond water. Most ABI models have elliptical tanks for easy access and a lower center of gravity. Choose between a white tank for easy water filling visibility or a black tank to reduce algae growth during water storage. The shape of our tanks also helps to minimize water sloshing during use.

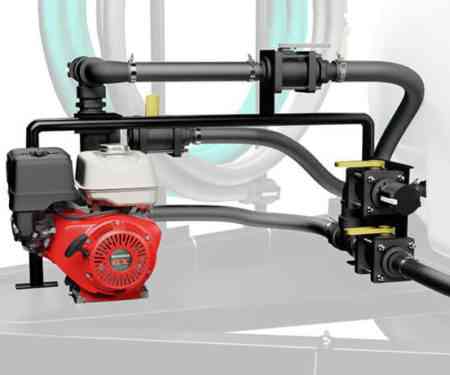

500 Gallon Water Trailer Spray Plumbing

Motor, Pump, & Plumbing System

Enable Precision Application Of Water

The available motor, pump, & plumbing systems enable precision application of water for a variety of applications. Depending on the model, we offer powerful professional grade engines that are then perfectly matched with the right pump to maximize performance for the trailer’s application. We expect impressive performance, so the entire plumbing system is equipped with the best quality valves and the ability to adjust water pressure and flow from the engine, the valves, or a combination of the two.

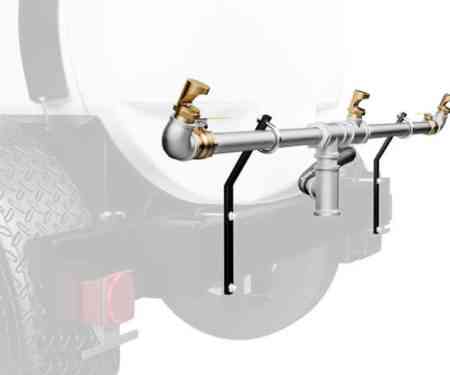

500 Gallon Water Trailer Spray Nozzle

Spray System & Brass Nozzles

Ensures A Consistent Application Of Water

The available rear spray system with brass nozzle(s) ensures a consistent application of water to the ground when configured with a motor and pump. The brass nozzle(s) provide superb coverage and can be adjusted to direct the spray as desired. Our full-size water trailers come standard with 3 nozzles on a steel spray bar that also include valves to selectively turn the outer nozzles on or off, or to adjust their flow. The compact-size water trailers have either 1 or 2 nozzles depending on the application.

500 Gallon Water Trailer Spray Hose

Convenient, Powerful Spray Hose

Perfect For Countless Applications

The available spray hose extends the functionality of trailers equipped with a motor and pump. The spray hose is perfect for cleaning projects, watering landscaping, filling troughs, fire protection, and countless other applications! Easily stores on the carrying rack and includes quick-couplers to connect and disconnect with ease.

Flow Control

Easy On/Off Flow Control

Without Getting Off Of The Tractor Or ATV

A ratcheting valve and attached rope enables the tractor operator to turn the flow of water on and off without getting off of the tractor or ATV! Shutting off water flow when traveling over areas that have already been watered conserves water and eliminates inconsistent or over-watering that can be detrimental in certain applications. Add the optional electric on/off control for use inside a truck or other commercial applications!

Auto-Fill

Auto-Fill Shut Off

Saves Time, Hassle, & Worry

This new valve automatically shuts off the flow of water from a garden hose when the tank is full, saving time and worry. Now you can fill the tank overnight or continue on with your day’s work, and the trailer will be full and ready to spray when you are.

Quick FIll

Quick Fill System

Easy Filling Of The Tank

For water trailers equipped with a motor and pump, the available quick-fill system allows easy filling of the tank from a pond or other available water source in mere minutes. These hoses feature quick couplers and conveniently stores on the carrying rack.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty - Farm, Ranch, & Commercial

36-month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 36-month limited warranty on this product. See warranty documentation for details.

Trailer Construction

ABI Water Trailer 500 Gallon D.O.T.
GVWR Axle Rating 8,500 lbs.
Unit Weight (Empty) 1,700 lbs.
Loaded Weight (w/Water) 5,875 lbs.
Compact Construction -
Commercial Construction
1 Axle -
2 Axles
Suspension Leaf Spring
Electric Brakes
Fenders
Brake & Tail Lights
Custom Frame
Tire Type Radial
Tire Specs WH 235/80/16-6/5.5
# of Lugs 6
Trailer Frame Type C-Channel
Pin, Pintle, or 2" 5/16" Ball Hitch - Option
Limited Warranty 36-month
Made In USA

Water Tank Configurations

ABI Water Trailer 500 Gallon D.O.T.
Water Capacity 500 Gallons
Full Drain Tank
Deep Drainage Sump
Leg Tank Design -
Low Profile Elliptical Shape
White Polyethylene Material
Black Tank Option - Option
FDA Approved Resins

Engine Configurations

ABI Water Trailer 500 Gallon D.O.T.
GX160 Honda Motor (4.8 hp / 163cc)

Pump Configurations

ABI Water Trailer 500 Gallon D.O.T.
2” Self-Priming Centrifugal Poly Pump - Option

Plumbing Configurations

ABI Water Trailer 500 Gallon D.O.T.
AutoFill Shutoff - Garden Hose
2" Plumbing - Option
Recirculation System - Option
1 Rear Spray Nozzle -
2 Rear Spray Nozzles -
3 Rear Spray Nozzles - Option
On/Off Flow Control Ratchet Valve - Option
Spray Hose & Nozzle - Option
Pond Fill System - Option
Garden Hose Adapter - Option

Rear Water Spray

ABI Water Trailer 500 Gallon D.O.T.
Spray Nozzle Fan Arc 144°
Spray Swath 6' - 25'
Max Gallons Per Minute (GPM) 140
Uniform Water Application

Tow Vehicle Requirements

ABI Water Trailer 500 Gallon D.O.T.
Off Public Roadway Use
On Public Roadway Use (D.O.T.)
Tow Vehicle Type 1/2-Ton Truck
Minimum Vehicle Requirements Min. Vehicle Towing Capacity: 5,900 lbs.

Dimensions

ABI Water Trailer 500 Gallon D.O.T.
Unit Length 151"
Unit Width 87"
Unit Height 73"
Shipping Length 151"
Shipping Width 87"
Shipping Height 73"

Attributes

500 Gallon D.O.T. Water Trailer
Tow Vehicle Tractor, Truck, Compact Tractor, Utility Tractor, Large-Utility Tractor, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck
Product Type Water Trailers
Connection Pin Hitch / Drawbar, Ball Hitch
Size ,
Other Attributes D.O.T. Compliant, Engine Powered
