Ground Drive Manure Spreader
Meet Your Ground Drive Manure Spreader from ABI Attachments
Table of Contents
User's Guide and Parts Manual
ABI continuously and rigorously updates our products to meet changing customer needs. Because of this commitment to innovation, our support materials change frequently. In order to provide you with the most up-to-date instructional resources while reducing paper waste, all support materials are located online.
Visit ABISupport.com to access a complete list of resources for your Manure Spreader, or click the links below to view the most recent User’s Guide, Parts Manual, and other helpful links.
Notch Plate and Tongue Installation
Some ABI Ground Drive Spreaders require Notch Plate and/or Tongue Installation after arrival. Tongue installation will require two people for easy installation. Detailed instructions are found in the video above.

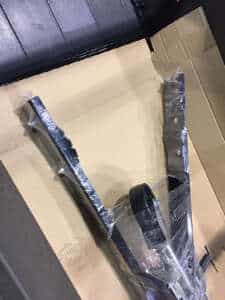

You will find these notch plates attached to the tongue of the spreader that is found inside the bed (see below pictures). The notch plate with 5 slots attaches onto the left side and the notch plate with 2 slots attaches to the right side.
Pictures show location of plates
General Maintenance Tips
- Grease Spreader after every 30 uses.
- Remember to oil or lubricate the chains.
- The tension on the apron chain should give you about 3″ in slack when lifted while standing at the center of the bed.
- Tire air pressure should be 40 psi.
- Remember to wash unit to keep it from corrosion.
Maintenance and Adjustment Videos
How To Find Lubrication Points
How To Adjust The Web Chain Tension
Beater Bar Chain Tension And Spring Adjustment
How To Adjust The Star Wheel Gap
How To Replace The Web Drive Keyway
How To Adjust Tension On The Wide Spread CHain
End Gate and Fines Pan
The optional manual end gate can be purchased to help prevent manure from flowing to the back while in its down position. While the end gate is in the up position you can protect yourself slightly from the rogue manure being flown forwards occasionally.
The optional fines pan helps collect the manure that did not get put through the spreader which then would fall to the ground.
