Mini Skid Steer Attachment

The Mini SR is an innovative mini skid steer landscape rake, built for mighty results from your mini machine. Mini compact track loaders are easy to use and go where bigger machines dare not, combined with our Mini skid steer attachment, the user is empowered to finish soil and gravel projects with ease. The Mini SR is built to last longer and work harder than fickle, dusty, and cumbersome mini skid steer power rakes. It's built to create a de-compacted, seed-and-sod-ready finish, not merely scrape and press like traditional land planes. It's built to quickly and safely cut in against foundations and landscaping and around irrigation heads, to drastically reduce the time spent hand-grubbing. In short, the Mini SR is the perfect combination of brawn and finesse that gives mini skid users the power to finish the job.

The core of the Mini SR platform is the patented combination of tough cast scarifier teeth and a hardened steel finish rake. Made with no moving parts and durable materials, this innovative configuration provides a level of penetration, de-compaction, and bite that competitors can’t touch!

Mini SR M3 Features - Frame

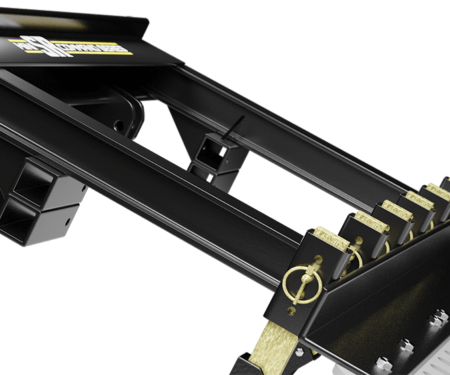

Fully-Welded I-Beam Frame M3 M1

Every Mini SR is built tank-tough in the USA with a fully-welded I-beam frame. The Mini SR is ready to work as hard as you and your crew

Mini SR M3 Features - Attachment

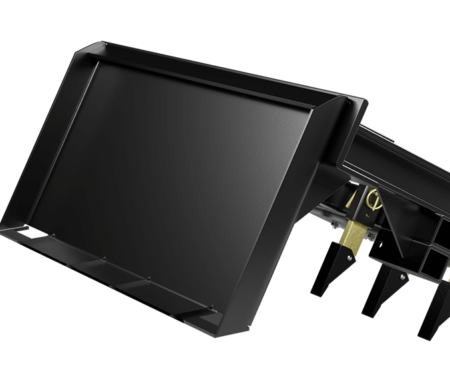

Universal OR Bobcat Attachment Plate M3 M1

With either the Universal attachment plate or Bobcat mini skid attach plate options, the Mini SR can be fitted to a wide variety of larger mini skid steers.

Mini SR M3 Features - Scarifier

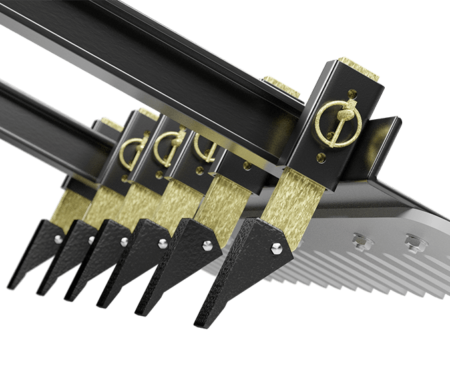

Scarifiers M3 M1

The scarifiers loosen the ground from 1-5 inches deep with adjustable depth control. These durable cast teeth penetrate the hardest of conditions, properly preparing the soil for optimal seed germination and root growth! With replaceable tips, users can count on a tough bite year after year!

Mini SR M3 Features - Finish Rake

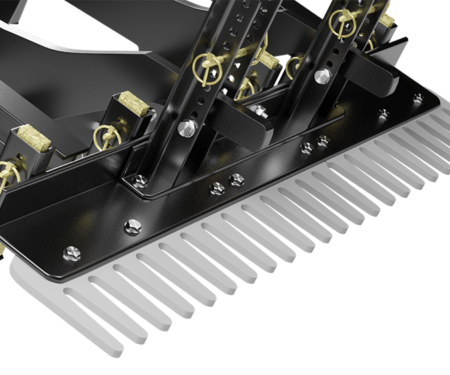

Finish Rake M3 M1

The hardened-steel finish rake is 3/4″ thick and set at the optimal angle to the scarifiers, providing a second wave of loosening, pulverizing, and finishing. Push or pull to loosen, rake, grub, push, and backfill against foundations and landscape features. It’s easy to see what you’re doing with the Mini-SR’s low profile, which makes precision work in tight spots possible!

Mini SR M3 Features - Leveling Blade

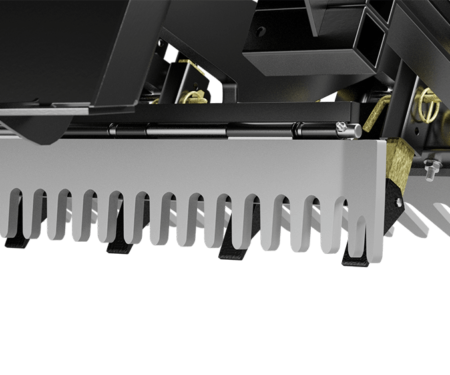

Leveling Blade M3

The steel leveling blade of the M3 model adds the ability to grade, level and contour, giving a small machine, big capability! The leveling blade floats to equalize high and low areas, creating even grades and contours. Or the blade can be locked down to work more like a box blade. This is an easy to use feature that makes a BIG difference in earth moving power! so you can always trust the Mini SR even in the tightest of spaces.

Mini SR M3 Features - Wheels

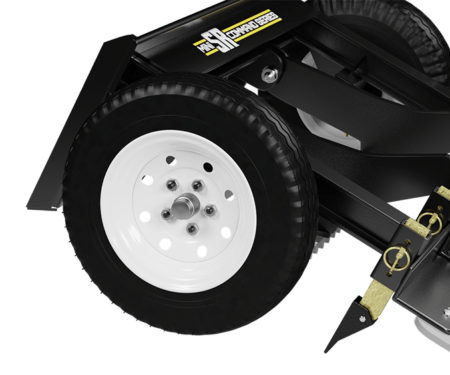

Stabilizing Wheels M3

The stabilizing wheels gauge working depth. This gives operators a controlled dig, and keeps the tool consistently engaged with the ground, so you can always trust the Mini SR even in the tightest of spaces.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty For Farm, Ranch, and Commercial Tools

60-month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 60-month limited warranty on this product. See warranty documentation for details.

1Durable and Dependable

Unlike expensive, cumbersome, and breakdown-prone tools like power rakes, the Mini SR is built like a tank from steel I-beams. Its cast scarifiers and hardened steel finish rake are long-wearing and easy to replace when it’s time. The Mini SR is built to be on the job, finishing the job, day after day and year after year.

2Go Where Heavy Tools Dare Not

The Mini SR uses the same innovative design featured in the TR3 and SR3 tools for tractors and full-size skid steers. This hard-wearing and patented arrangement of scarifiers, finish rake, and leveling blade* has been real-world tested over decades by of thousands of hard-working landscapers and contractors. The Mini SR takes those same hard-working components to a whole new arena—the jobs where heavy tools and large vehicles can’t reach.

3Finish the Job

Mini-skids are perfect for working in tight spaces or with limited crew. However, finishing the job is tough when your only options are cumbersome power rakes or ineffective planers or buckets, and often requires hiring another crew.

The Mini SR can backfill, contour, grade, grub, de-compact, and finish for a seed-and-sod-ready surface, giving users the unique ability to finish the job! Skip the subcontractor and complete the seed-prep yourself. Finish grade your trenching jobs. Leave your newly-installed hardscape or landscape feature ready for seed or sod. The Mini SR has the strength and the finesse for start-to-finish mini-skid work!

4De-Compaction is Key

The finish is critical when you’re working around foundations, landscape features, and high-traffic areas. The Mini SR provides the exclusive capability to de-compact the ground, allowing deeper root penetration and an optimal sod- and seed-ready surface! Power rakes only penetrate an inch or less, and their weight and rolling action compact the soil below that first inch. Land planes press and scrape and little else. The Mini SR has tough cast scarifiers that can dig up to 5 inches deep and a steel finish rake to bust apart hardpan and clumps and leave a perfect finish.

When you want to finish the jobs you start the right way, the Mini SR can easily cut in against foundations and landscape edges and properly prepare the soil for healthy turf growth.

5Ditch the Hand Labor!

Large, heavy tools with poor visibility are prone to damage irrigation heads, concrete, and landscape features, but hand-labor is time consuming and exhausting. Where a light footprint and finesse is required but a powerful tool is optimal, the Mini SR gives operators the finesse and power to quickly and effectively back-fill, rake, fill, contour, and finish! Drastically cut your hand-labor costs and time with the efficient, maneuverable, and powerful Mini SR!

Model Mini SR (M3)
Vehicle Type Mini Skid Steer
Hydraulic Ports Needed None
Min. Horsepower 27
Unit Weight 540 lbs.
Raking Width 54"
Grading Width 38"
Scarifying Width 46"
# of Scarifiers 6
Hydraulic Scarifiers No
Scarifier Spacing 8-10"
Scarifying Depth 0 - 5"
Scarifying Tip Yes, Bolt-On
Construction i-Beam & Angle Iron
Rake Material 3/4" AR Steel
Wheels 16" Air Filled
3-Point Tractor Mount No
Skid Steer Mount Universal OR Bobcat
Unit Dimensions 54"W x 40"D x 20"T
Commercial Warranty 36-month
Rental Warranty 12 Months
Pricing & specifications are subject to change without notice.

Attributes

Mini SR Grading Rake
Product Type Driveway Graders, Landscape Rakes, Grading Blades
Connection Universal (Mini Skid-Steer), Bobcat (Mini Skid-Steer)
Tow Vehicle Mini Skid-Steer, Skid-Steer
Power Range 20 – 60 h.p. Mini Skid-Steer
Size
Other Attributes NO Hydraulics Needed
Market


Can’t find the resource you’re looking for? Let us help! Our support team can be reached at 877-788-7253

1 review for Mini SR Grading Rake

5.0
Based on 1 review
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
  1. Gilles Pelletier

    I just bought the Mini SR (M3) and it is an amazing accessory for the soil. It saves me time, labor, and does a much nicer job than by hand or with the bucket. in 15 minutes i already mastered the attachment. Very easy to use. I regret not having bought it earlier
