SR3 Grading Rake

From Site Prep To Seed Prep - One Tool Does It All

Need a Quote and Information?

SR3 Rake - For Landscapers & Contractors

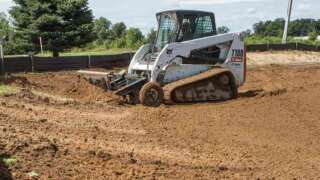

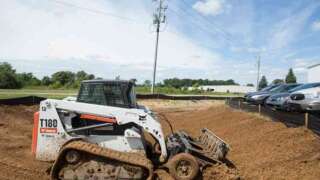

The SR3 is a commercial-grade seedbed preparation attachment for skid steer. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination. Unlike a power rake, the SR3 has no rotary components so it can take abuse like no other soil prep attachment can. Possibly the greatest benefit of the SR3 is ease of use. With clear sight lines to the front edge of the tool the operator can have confidence even along concrete edges, irrigation heads, landscaping, and buildings. Even an inexperienced operator can quickly become an expert SR3 operator as it can be operated with the loader arms in "Float". The SR3 has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 3"(standard), adjustable to 5". 7.5' wide.
SR3 Rake - For Landscapers & Contractors

Time Saver

With an easy-to-set depth control in the gauge and float wheels, any operator can quickly clear, grade, and finish the toughest of jobs. Sift out rocks, level, and loosen when pulling the SR3; push large amounts of material and feather loose soil up against an edge when pushing forward!

Less Downtime & Handwork

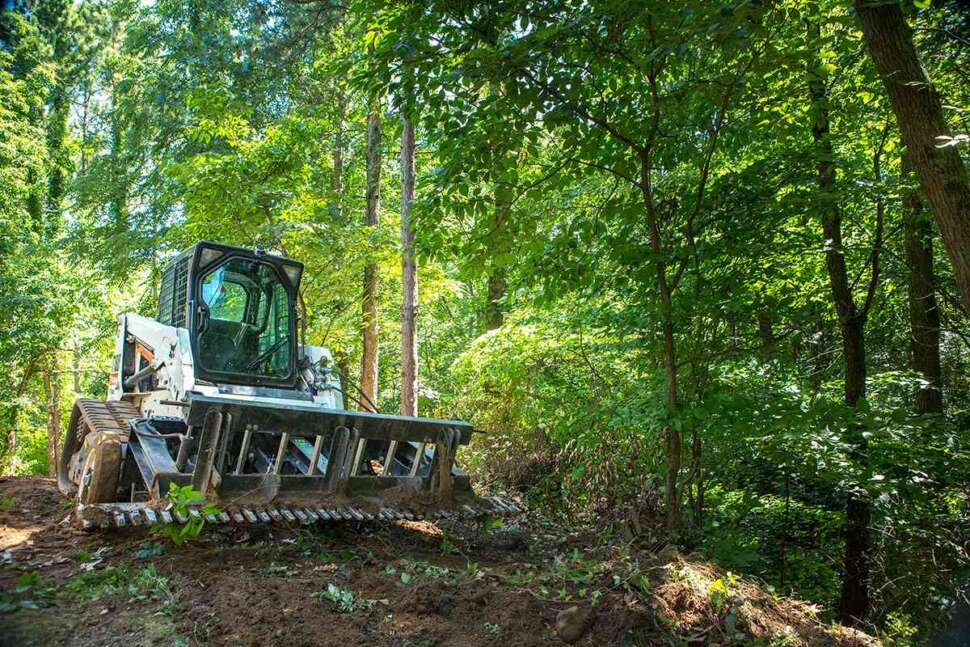

The ability of the SR3 to finish a job from overgrown land to a seedready finish drastically reduces time spent changing tools, unloading trailers, reconnecting hydraulics, and more. Its ability to tackle every job-from spreading large mounds of topsoil & removing debris to feathering against a tight edge-greatly reduces the need for other tools and handwork. Watch your profits soar: complete more jobs each day with fewer staff on site!

For Any Crew

Matchless in the landscape industry, the float & gauge wheels on the SR3 let any operator achieve quick, easy, and professional results. Furthermore, the low-profile design was engineered to provide maximum visibility of ground-engaging components (minimizing guess-work). Assign any crew with confidence!

Soil Decompaction

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.

Scott Holmes and Kevin Keigley with ABI Attachments discuss the differences between each Skid Steer Rake and which one would be right for you.

Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.

SR3 Grading Rake

Patent Pending

-

Ground-Engaging Components

3

H.P. Rating

40 - 100

Limited Warranty

36 mo.

The SR3 combines the best features of a skid steer attached Box Blade, Landscape Rake, Pulverizer, Land Planner, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. In comparison to a power rake, the SR3’s features provide significantly more soil compaction relief, speed of operation, and grading capability without downtime due to extensive maintenance.

i-beam

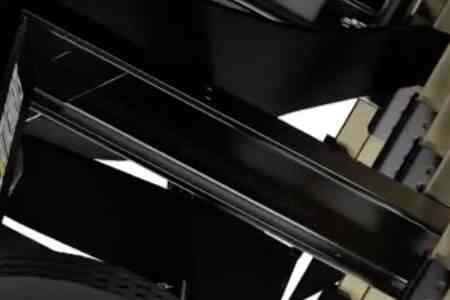

I-Beam Design

Fully welded for the utmost strength and longevity. Our Command Series tools are designed to work under tough conditions all day, every day.

home-thumb1

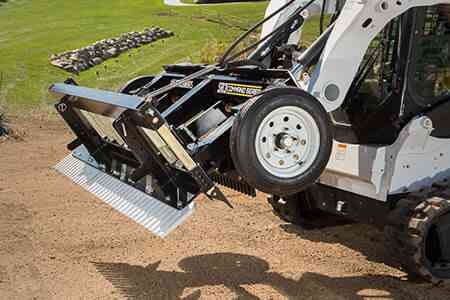

Innovative 3-In-One Design

Designed to operate at an angle, the SR3 is a wheel-supported attachment with 3 ground-engaging components that work together to create the ideal seedbed.

rock-teeth

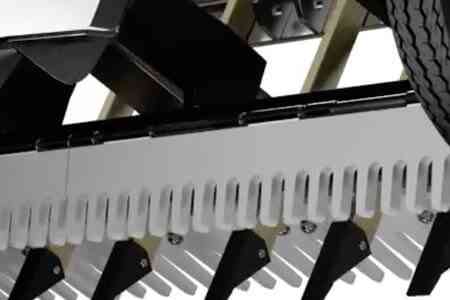

Leveling Blade w/ Hinged Rock Teeth

Pulled backward, this blade floats to equalize high & low areas without damaging the ground, while rock teeth collect surface debris. It can also lock for aggressive grading. Pushed forward, the blade & teeth hinge up to eliminate resistance.

wheel

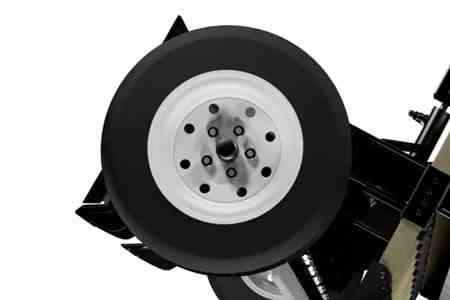

16in Float & Gauge Tires

16″ float & gauge tires gauge working depth and allow the skid steer to work in the “float” position to keep the tool consistently engaged with the ground even when operating on rough terrain! Foam-filled for never-flat durability.

rake

Heavy-Duty Steel Finish Rake

The heavy-duty steel finish rake gives the SR3 both finesse and strength. Push forward to slice vegetation, clear debris, and spread top soil. Pull backward to pulverize dirt clods and leave an ideal seed- or sod-ready finish. Replaceable in 1′ sections. 3/4″-thick laser-cut hardened-steel.

hydraulic

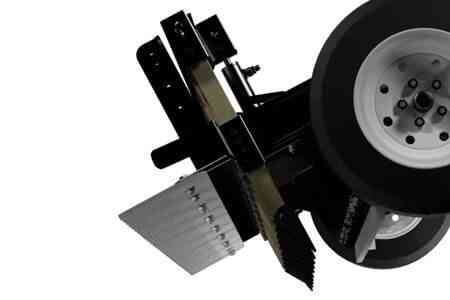

Hydraulic Scarifiers

Hydraulic scarifiers loosen the ground from 0-5″ with on-the-fly hydraulic depth control. These cast teeth penetrate the hardest of conditions and bolt-on tips keep maintenance costs low.

flag-icon

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Vehicle Type Skid Steer
Min. Horse Power 40
Unit Weight 1,300 lbs.
Raking Width 89"
Grading Width 66"
Scarifying Width 79"
# of Scarifiers 10
Hydraulic Scarifiers Yes
Scarifier Spacing 8-10"
Scarifying Depth 0-3" Adjustable to 5"
Scarifying Tip Yes - Replaceable (Bolt-On)
Hydraulic Ports Needed 1 Set
Construction I-Beam & Angle Iron
Rake Material 3/4" AR Steel - Laser Cut - (Replaceable in sections)
Wheels 16" Foam Filled
3-Point Tractor Mount No
Skid Steer Mount Universal
Unit Dimensions 89"W x 46"D x 20"T
Warranty

36-Month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 36-month limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details.
