    Mini SR Grading Rake

    Serious Ground Prep For Mini Skid-Steer

      Request Factory-Direct Quote & Advice

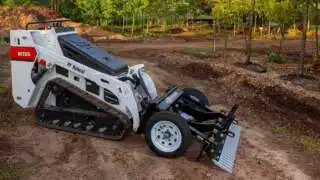

      Mini Skid Steer Rake Attachment

      The Mini SR is an innovative mini skid steer landscape rake, built for mighty results from your mini machine. Mini compact track loaders are easy to use and go where bigger machines dare not, combined with a Mini SR attachment, the user is empowered to finish soil and gravel projects with ease. The Mini SR is built to last longer and work harder than fickle, dusty, and cumbersome power rakes. It's built to create a de-compacted, seed-and-sod-ready finish, not merely scrape and press like traditional land planes. It's built to quickly and safely cut in against foundations and landscaping and around irrigation heads, to drastically reduce the time spent hand-grubbing. In short, the Mini SR is the perfect combination of brawn and finesse that gives mini skid users the power to finish the job.

      M3 ModelM1 Model
      ApplicationThe Mini SR (M3) model is a landscape and grading rake that combines the functions or a power rake, box blade, and land plane, with much better results! This one tool loosens, levels, and rakes the ground to finish soil and gravel projects!The Mini SR (M1) model is a landscape rake that loosens and rakes the ground to finish soil and gravel projects! This attachment delivers big results even when paired with smaller mini skid loaders. Upgradable to the M3 functions as needs change.
      Unit Weight540 lbs.340 lbs.
      Scarifiers
      Rake
      Leveling Blade
      Wheels

      The core of the Mini SR platform is the patented combination of tough cast scarifier teeth and a hardened steel finish rake. Made with no moving parts and durable materials, this innovative configuration provides a level of penetration, de-compaction, and bite that competitors can’t touch!

      mini-sr-image-frame

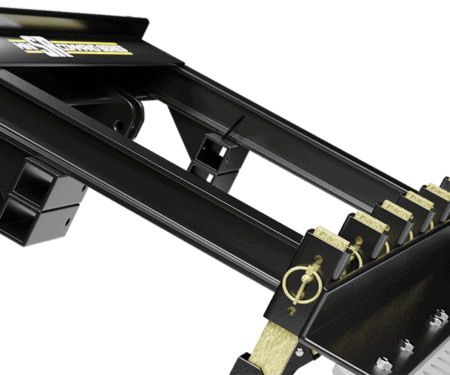

      Fully-Welded I-Beam Frame M3 M1

      Every Mini SR is built tank-tough in the USA with a fully-welded I-beam frame. The Mini SR is ready to work as hard as you and your crew

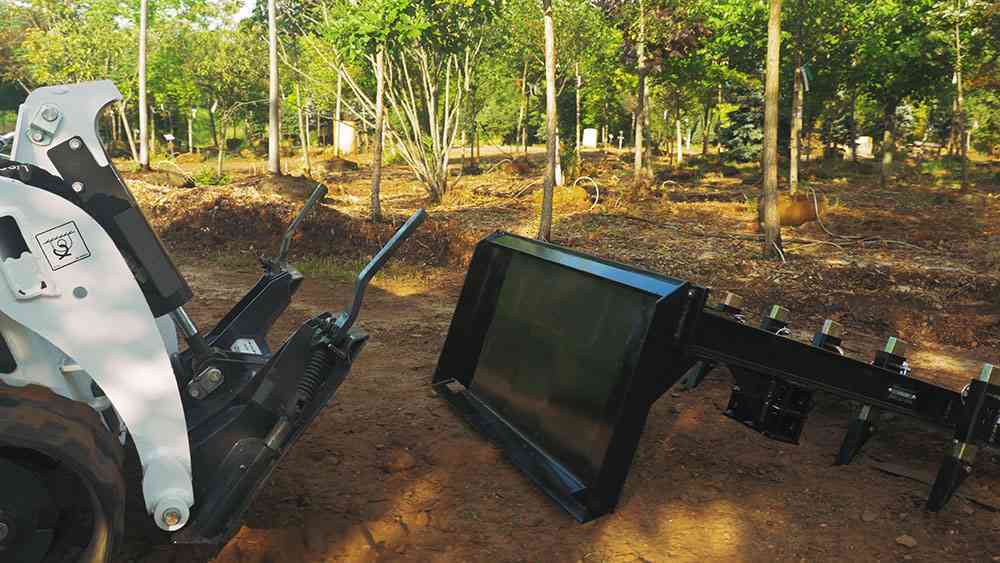

      Bobcat MT55 Attachment Plate

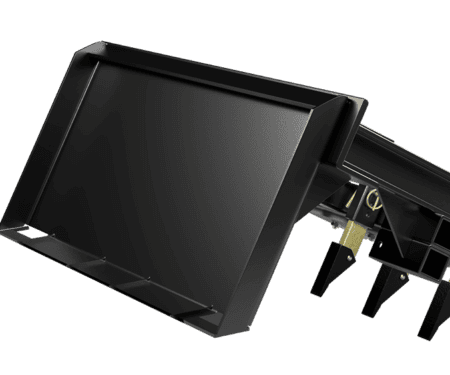

      Universal OR Bobcat Attachment Plate M3 M1

      With either the Universal attachment plate or Bobcat mini skid attach plate options, the Mini SR can be fitted to a wide variety of larger mini skid steers.

      mini-sr-image-scarifier

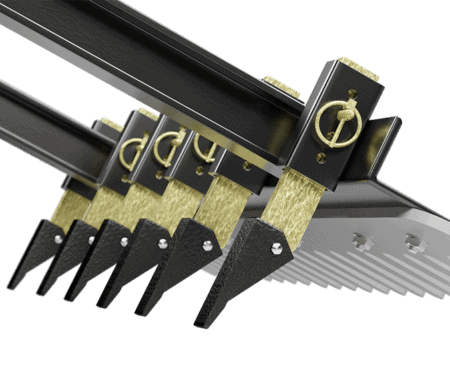

      Scarifiers M3 M1

      The scarifiers loosen the ground from 1-5 inches deep with adjustable depth control. These durable cast teeth penetrate the hardest of conditions, properly preparing the soil for optimal seed germination and root growth! With replaceable tips, users can count on a tough bite year after year!

      mini-sr-image-finish-rake

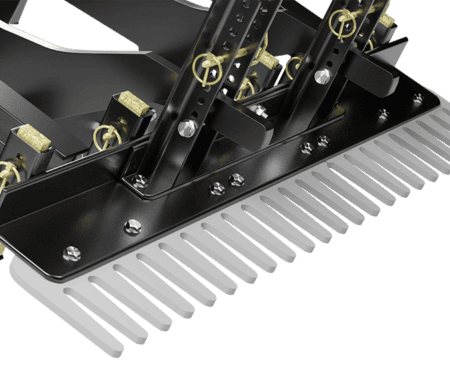

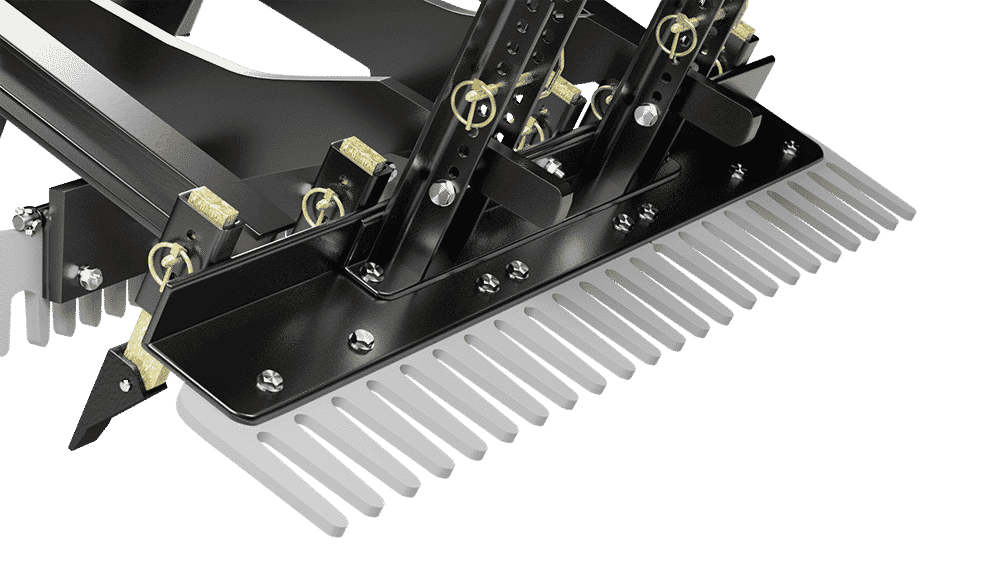

      Finish Rake M3 M1

      The hardened-steel finish rake is 3/4″ thick and set at the optimal angle to the scarifiers, providing a second wave of loosening, pulverizing, and finishing. Push or pull to loosen, rake, grub, push, and backfill against foundations and landscape features. It’s easy to see what you’re doing with the Mini-SR’s low profile, which makes precision work in tight spots possible!

      mini-sr-image-leveling-blade

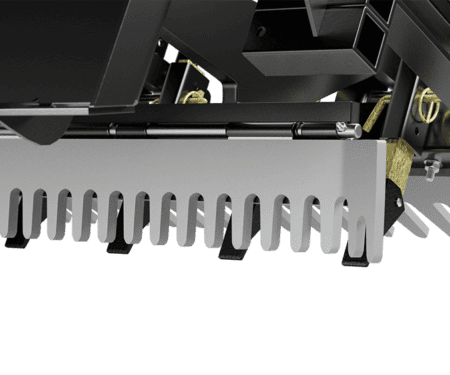

      Leveling Blade M3

      The steel leveling blade of the M3 model adds the ability to grade, level and contour, giving a small machine, big capability! The leveling blade floats to equalize high and low areas, creating even grades and contours. Or the blade can be locked down to work more like a box blade. This is an easy to use feature that makes a BIG difference in earth moving power! so you can always trust the Mini SR even in the tightest of spaces.

      mini-sr-image-wheel

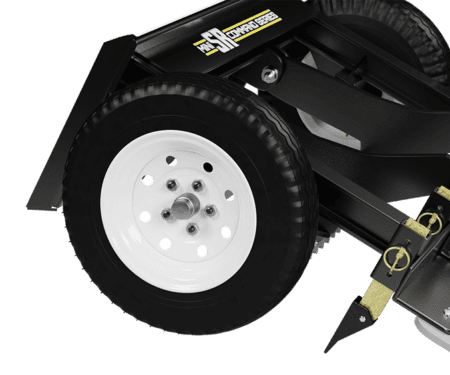

      Stabilizing Wheels M3

      The stabilizing wheels gauge working depth. This gives operators a controlled dig, and keeps the tool consistently engaged with the ground, so you can always trust the Mini SR even in the tightest of spaces.

      flag-icon

      Manufactured Right Here

      You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

      1Durable and Dependable

      Unlike expensive, cumbersome, and breakdown-prone tools like power rakes, the Mini SR is built like a tank from steel I-beams. Its cast scarifiers and hardened steel finish rake are long-wearing and easy to replace when it’s time. The Mini SR is built to be on the job, finishing the job, day after day and year after year.

      2Go Where Heavy Tools Dare Not

      The Mini SR uses the same innovative design featured in the TR3 and SR3 tools for tractors and full-size skid steers. This hard-wearing and patented arrangement of scarifiers, finish rake, and leveling blade* has been real-world tested over decades by of thousands of hard-working landscapers and contractors. The Mini SR takes those same hard-working components to a whole new arena—the jobs where heavy tools and large vehicles can’t reach.

      *M3 Model only

      3Finish The Job

      Mini-skids are perfect for working in tight spaces or with limited crew. However, finishing the job is tough when your only options are cumbersome power rakes or ineffective planers or buckets, and often requires hiring another crew.

      The Mini SR can backfill, contour, grade, grub, de-compact, and finish for a seed-and-sod-ready surface, giving users the unique ability to finish the job! Skip the subcontractor and complete the seed-prep yourself. Finish grade your trenching jobs. Leave your newly-installed hardscape or landscape feature ready for seed or sod. The Mini SR has the strength and the finesse for start-to-finish mini-skid work!

      4De-Compaction Is Key

      The finish is critical when you’re working around foundations, landscape features, and high-traffic areas. The Mini SR provides the exclusive capability to de-compact the ground, allowing deeper root penetration and an optimal sod- and seed-ready surface! Power rakes only penetrate an inch or less, and their weight and rolling action compact the soil below that first inch. Land planes press and scrape and little else. The Mini SR has tough cast scarifiers that can dig up to 5 inches deep and a steel finish rake to bust apart hardpan and clumps and leave a perfect finish.

      When you want to finish the jobs you start the right way, the Mini SR can easily cut in against foundations and landscape edges and properly prepare the soil for healthy turf growth.

      5Ditch The Hand Labor!

      Large, heavy tools with poor visibility are prone to damage irrigation heads, concrete, and landscape features, but hand-labor is time consuming and exhausting. Where a light footprint and finesse is required but a powerful tool is optimal, the Mini SR gives operators the finesse and power to quickly and effectively back-fill, rake, fill, contour, and finish! Drastically cut your hand-labor costs and time with the efficient, maneuverable, and powerful Mini SR!


      ModelMini SR (M3)Mini SR (M1)
      Vehicle TypeMini Skid SteerMini Skid Steer
      Hydraulic Ports NeededNoneNone
      Min. Horsepower2727
      Unit Weight540 lbs.340 lbs.
      Raking Width54"54"
      Grading Width38"-
      Scarifying Width46"46"
      # of Scarifiers66
      Hydraulic ScarifiersNoNo
      Scarifier Spacing8-10"8-10"
      Scarifying Depth0 - 5"0 - 5"
      Scarifying TipYes, Bolt-OnYes, Bolt-On
      Constructioni-Beam & Angle Ironi-Beam & Angle Iron
      Rake Material3/4" AR Steel3/4" AR Steel
      Wheels16" Air Filled-
      3-Point Tractor MountNoNo
      Skid Steer MountUniversal OR BobcatUniversal OR Bobcat
      Unit Dimensions54"W x 40"D x 20"T54"W x 40"D x 20"T
      Commercial Warranty36 Months36 Months
      Rental Warranty12 Months12 Months
      Pricing & specifications are subject to change without notice.
