ABI Potable Water Trailers
ABI Potable Water Trailers have the features you need - for the jobs you need to get done. Specifically designed to safely transport clean consumable water anywhere, ABI's Potable Water Trailers are perfect for a variety of applications, including agriculture, property, municipal, military and commercial. Proudly manufactured in the USA, ABI's Potable Water Trailers are available in 500, 1,000 and 1,600 gallon capacities, and feature fully welded, custom built frames and full drain tanks. Road ready and DOT approved, ABI's Potable Water Trailers are a perfect choice for the safe and reliable transport of potable water both on and off public roadways!
Potable Water Trailers
Potable Water Trailers Line Drawing

500

Gallon Trailer

1000

Gallon Trailer

1600

Gallon Trailer

Limited Warranty

36-month

ABI Potable Water Trailers are specifically designed to safely transport clean consumable water virtually anywhere it is needed. These potable water trailers are equipped with full drain black tanks, to reduce algae & bacteria growth, and gravity fed water spigots that may be customized to meet the unique needs of the customer. ABI has the manufacturing capacity to fulfill both large volume orders of up to 1,000 units and orders for a single unit. The quality remains the same no matter the order size. We even work with government agencies to fulfill large military & humanitarian contracts to spec and on time. ABI water trailers come in 500, 1,000 & 1,600 gallon capacities and your choice of off-road or D.O.T. (on-road) configurations. ABI Potable Water Trailers are built “tank tough” for years of worry free service.

Potable Water Trailers Frame

Steel Frame

Purpose Built Rugged Steel Frame with Easy to Use Hitch System

No matter how you spin it, a water trailer is only as good as the frame it’s built upon. The ABI Potable Water Trailers have a frame that is fully welded and custom engineered for the demands of the enormous weight of water. The rugged steel frame is made for extreme durability and long service life. ABI is dedicated to manufacturing our products in the USA; only the highest quality steel, superior craftsmanship and powder coating is acceptable! Plus, connecting to your truck is quick and easy with our adjustable ball hitch, safety chains and swivel crank jack!

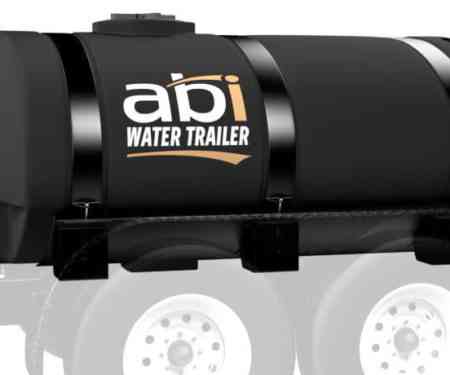

Potable Water Trailer Tank

Custom Molded Tanks

Full Drain Custom Molded Tanks

ABI’s Potable Water Trailers feature a uniquely designed water tank. The tank sits on our custom made steel frame, allowing it to fully drain for easy cleaning. Unlike many competitors, ABI’s water trailer tanks are easy to thoroughly clean and flush out. This unique design also keeps water near the frame for easy access and to lower the center of gravity. The ABI Potable Water Trailer features an FDA approved black tank that blocks UV rays and reduces algae growth during water storage. The tanks are equipped with an easy access vented lid for filling and servicing.

Potable Water Trailer Distribution

Water Distribution System

Standard Configuration is Gravity Fed

The ABI Potable Water Trailers feature a standard water distribution system that accommodates the majority of potable water needs. This standard configuration is gravity fed and includes two 2″ ball valves each with a 5/8″ hose barb. For added versatility, ABI offers select customizable water distribution system options depending on your water application needs.

Potable Water Trailer Auto-Fill

Auto Fill Shut Off

Saves Time and Worry

All ABI Water Trailers come standard with a brand new auto fill shut off feature! When utilized, this valve automatically shuts off the flow of water when the tank is full, saving time and worry. Now you can fill the tank overnight or continue on with your day’s work, and the trailer will be full and ready to use when you are.

Potable Water Trailer DOT

D.O.T.

Meet DOT Regulations

ABI’s Potable Water Trailers meet DOT regulations, complete with electric drum brakes, tail lights, fenders and radial road tires. All of our DOT water trailers come with a vehicle ID number, temporary license plate and required documents allowing you to register your trailer, hassle free! The ABI Potable Water Trailers feature tandem axles with slipper leaf spring suspension, offering a smooth and stable ride. The suspension and axles are engineered and field tested for each size unit to ensure safe operation and long service life.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty - Farm, Ranch, & Commercial

36-month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 36-month limited warranty on this product. See warranty documentation for details.

Trailer Construction

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
GVWR Axle Rating 8,500 lbs. 10,400 lbs. 18,000 lbs. 8,500 lbs. 10,400 lbs. 18,000 lbs.
Unit Weight (Empty) 1,260 lbs. 1,900 lbs. 2,260 lbs. 1,700 lbs. 1,900 lbs. 2,660 lbs.
Loaded Weight (w/Water) 5,385 lbs. 10,150 lbs. 16,020 lbs. 5,875 lbs. 10,150 lbs. 16,420 lbs.
Compact Construction - - - - - -
Commercial Construction
1 Axle - - - - - -
2 Axles
Suspension Leaf Spring Leaf Spring Leaf Spring Leaf Spring Leaf Spring Leaf Spring
Electric Brakes - -
Fenders - -
Brake & Tail Lights - - -
Custom Frame
Tire Type Implement Implement Radial Radial Radial Radial
Tire Specs WH9.5L15-6/5.5 WH9.5L15-6/5.5 WH 215/75/17.5-8/6.5 WH 235/80/16-6/5.5 WH 235/80/16-6/5.5 WH 215/75/17.5-8/6.5
# of Lugs 6 6 8 6 6 8
Trailer Frame Type C-Channel C-Channel C-Channel C-Channel C-Channel C-Channel
Pin, Pintle, or 2" 5/16" Ball Hitch - Option - Option - Option - Option - Option - Option
Limited Warranty 36-months 36-month 36-month 36-month 36-month 36-month
Made In USA

Water Tank Configurations

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
Water Capacity 500 Gallons 1,000 Gallons 1,600 Gallons 500 Gallons 1,000 Gallons 1,600 Gallons
Full Drain Tank
Deep Drainage Sump
Leg Tank Design - -
Low Profile Elliptical Shape - - - -
Black Polyethylene Material
White Tank Option - Option - Option - Option - Option - Option - Option
FDA Approved Resins

Engine Configurations

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
XR950 Briggs & Stratton (5.8hp / 208cc) - Option - Option - Option - Option - Option - Option
GC160 Honda Motor (4.6hp / 160cc) - Option - Option - Option - Option - Option - Option
GX160 Honda Motor (4.8 hp / 163cc) - Option - Option - Option - Option - Option - Option

Pump Configurations

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
2” Self-Priming Centrifugal Poly Pump - Option - Option - Option - Option - Option - Option

Plumbing Configurations

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
AutoFill Shutoff - Garden Hose
2" Plumbing - Option - Option - Option - Option - Option - Option
Recirculation System - Option - Option - Option - Option - Option - Option
1 Rear Spray Nozzle - - - - - -
2 Rear Spray Nozzles - - - - - -
3 Rear Spray Nozzles - Option - Option - Option - Option - Option - Option
On/Off Flow Control Ratchet Valve - Option - Option - Option - Option - Option - Option
Spray Hose & Nozzle - Option - Option - Option - Option - Option - Option
Pond Fill System - Option - Option - Option - Option - Option - Option
Garden Hose Adapter - Option - Option - Option - Option - Option - Option

Rear Water Spray

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
Spray Nozzle Fan Arc 144° 144° 144° 144° 144° 144°
Spray Swath 6' - 25' 6' - 25' 6' - 25' 6' - 25' 6' - 25' 6' - 25'
Max Gallons Per Minute (GPM) 140 140 140 140 140 140
Uniform Water Application

Tow Vehicle Requirements

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
Off Public Roadway Use
On Public Roadway Use (D.O.T.) - - -
Tow Vehicle Type Tractor or 1/2-Ton Truck Tractor or 3/4-Ton Truck Tractor or 1-Ton Truck 1/2-Ton Truck 3/4-Ton Truck 1-Ton Truck
Minimum Vehicle Requirements Min. Vehicle Towing Capacity: 5,900 lbs. Min. Vehicle Towing Capacity: 10,200 lbs. Min. Vehicle Towing Capacity: 16,020 lbs. Min. Vehicle Towing Capacity: 5,900 lbs. Min. Vehicle Towing Capacity: 10,200 lbs. Min. Vehicle Towing Capacity: 16,020 lbs.

Dimensions

ABI Water Trailer 500 Gallon 1000 Gallon 1600 Gallon 500 Gallon (D.O.T.) 1000 Gallon (D.O.T.) 1600 Gallon (D.O.T.)
Unit Length 151" 204" 213" 151" 204" 213"
Unit Width 87" 87" 102" 87" 87" 102"
Unit Height 73" 78" 79" 73" 78" 79"
Shipping Length 151" 204" 213" 151" 204" 213"
Shipping Width 87" 87" 102" 87" 87" 102"
Shipping Height 73" 78" 79" 73" 78" 79"

Potable Water Trailers
Product Type Water Trailers
Connection Pin Hitch / Drawbar, Ball Hitch
Tow Vehicle Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck
Size , , ,
Other Attributes D.O.T. Compliant
Market , ,
