SportPro M3

— October Promo —
Save $500 on total order

Need a Quote & Information?

Categories: , Tags: , ,

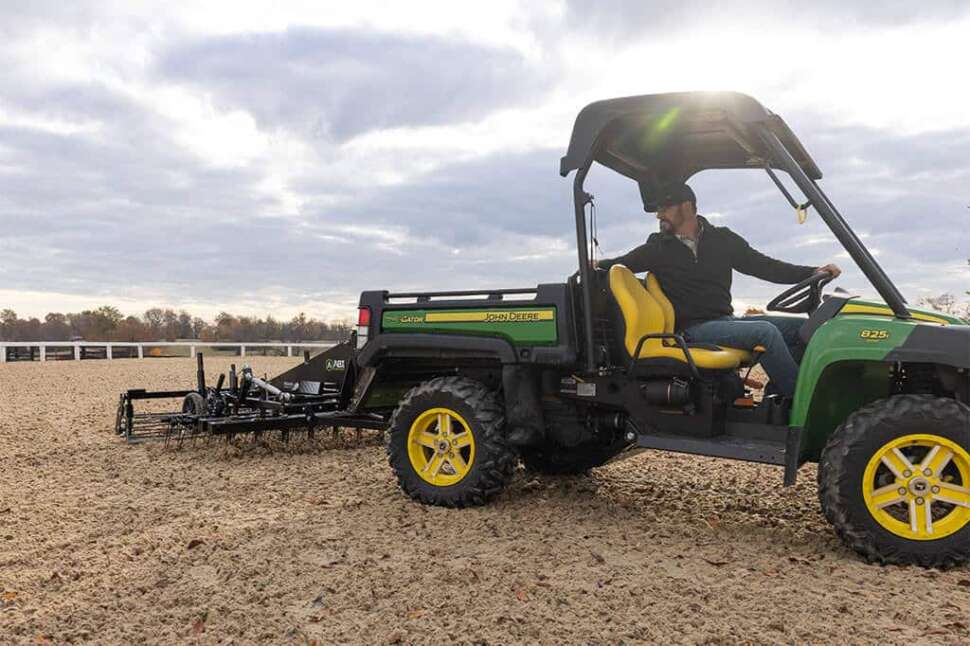

SportPro M3 – Best tow behind arena drag for sand footing

The SportPro M3 – Premier Equestrian Edition pull behind groomer was designed with equestrians and their horses at the forefront, and we have a range of possible configurations for you to choose from, so you can to get the results you require—no matter what kind of synthetic additives you’re working with. The M3 comes fitted with a single-point pin or optional ball coupler connection and wheel transport system for easy connect-and-go convenience. 67.5" and 83.5" Widths. 60-month Limited Warranty

YOUR IDEAL FOOTING STARTS HERE

Each ground-engaging component is independently adjustable so you can set your implement to perfectly groom your specific arena. Once you have the groomer configured for everyday use for your arena, lock the tool in place, so you can count on consistent, repeatable results, no matter who's in the driver's seat. Then, adjust the components as needed into an active grooming position when you need to re-mix the additives in your footing or change the surface tension for conditioning.

BETTER FLOW MEANS BETTER FOOTING

The SportPro is built with extended space between each component from front to back to maximize the flow of footing material so you can be sure you’re getting the comprehensive blending, with every pass. The component spacing, length increases maneuverability, so you can groom your entire arena surface faster than ever before, while significantly elevating the overall quality of the arena footing.

INTENTIONALLY CRAFTED WITH YOU IN MIND

The tough steel frame is built without a shell for increased visibility and to make it easier to reach the individual components for any needed adjustments or upkeep. The way the majority of groomers on the market are built puts the brunt of the force on the adjustment linkages of the grooming components, this makes them wear down faster. Our engineers decided to eliminate this unnecessary wear on the implement by building the stress points into the high quality rugged steel frame.

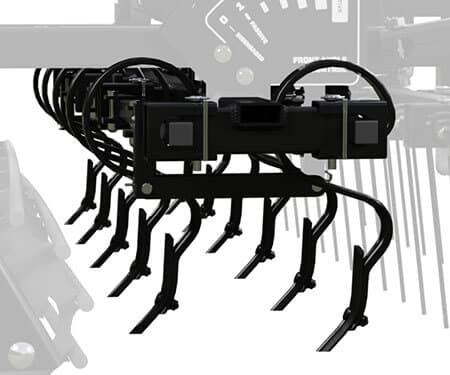

SportPro-M5-3-pt-s-tines-knockout

Choose Between Available Primary Components

S-Tines: A Safer Way to Go Deeper

If you have a limited amount of water in your arena or your additives require frequent mixing, the S-tines will provide holistic blending for your everyday grooming. The Sport Pro M3’s danish-styled S-tines act intuitively in synthetic footing, their springy give loosens and mixes material without causing damage to the base. S-Tines offer a safer way to go deeper, pulling up small fines and fibers that have settled to the bottom. S-tines are also suited for self-amending or self-installing additional materials, or fibers.

SportPro-M5-3-pt-scarifiers-knockout

Scarifiers: Eliminate Unwanted Compaction

Compacted arenas with high clay will benefit from the scarifiers as the primary component. In contrast to the S-tines, scarifiers are rigid by design, giving them an enhanced ability to loosen hard, compacted materials. For arenas that would benefit from the capabilities of both, the SportPro groomer allows the operator a toolless swap out of the S-tines and scarifiers.

SportPro-M5-3-pt-coil-tines-knockout

Coil Tines

More Contact Points for Better Blending

The SportPro M3 has two offset rows of coil tines, and each tine has two contact points instead of one. In their passive position, this setup maximizes the coil tines ability to fill in grooves and press down large fibers that have risen to the top. In the active position, the coil tines aerate, mix, and level the arena surface.

SportPro-M5-3-pt-smoothing-bar-knockout

Smoothing Bar

Level Your Footing Without Plugging Up

The smoothing bar is adjustable in quarter inch increments for maximum precision adjustment. The smoothing bar allows for some build up to accumulate so it can level out any excess material while filling remaining lines or grooves. The cylinder shape of the smoothing bar allows material to flow under as well as over— creating a smoothing effect under the bar, and preventing excess material from plugging up.

SportPro-M5-3-pt-twisted-rod-roller-knockout

Choose Between Single Roller or Dual Rollers

Twisted Rod Roller: A Signature Finish, Every Time

The twisted rod design of the SportPro roller maximizes packing and prevents trailing so you can count on an elegant finish over your arena surface. One of the key benefits of the twisted rods is constant contact with the surface, which minimizes bouncing while grooming.

SportPro-M3-front-roller

Optional Front Roller: Additional Blending Capabilities and Base Protection

If you’re looking for an additional level of gauge security and consistency, you can choose to add the optional front roller. With a second roller, you’ve established a ground plane between the front and rear rollers so you can drop and groom without worrying about catching on your base.

SportPro-M3-adjustable-components-knockout

Fully Adjustable Components

Your Arena, Your Way

Each ground-engaging component on a SportPro M3 groomer is independently adjustable so you can configure your implement to perfectly groom your specific arena and achieve your footing performance expectations, this includes daily maintenance as well as periodic remixing. With its easy adjustment capabilities, you can change the surface tension in your arena for different disciplines and for conditioning. Once you have the groomer configured for everyday use for your arena, lock the tool in place, so you can count on consistent, repeatable results, no matter who’s in the driver’s seat. Then, adjust the components as needed into an active grooming position when you need to re-mix the additives in your footing or change the surface tension for conditioning.

SportPro-transport-wheel-system

Wheel Transport System

Connect-and-Go

The wheel transport system makes it easy to connect your UTV or ATV and move your M3 in and out of your arena, hassle-free.

SportPro-rail-blade

Rail Blade

For the Hard-to-Reach Spots

To get those tough-to-reach edges, add the optional rail blade. The rail blade lets you maneuver with ease around the trickiest spots in your arena.

SportPro-rail-wheel

Wall Wheel

No Kick Wall Scratches Here

For extra kick wall protection when leveling the edges of your arena, get the optional rail wheel add on.

Ball Coupler

Tow the Way You Like It

If a ball hitch is your preferred method of towing, the ball coupler option gives you the convenience you’re looking for with your M3.

Electric Actuator

This Option Will Be Available Soon

Limited Warranty For Farm, Ranch, and Commercial Tools

60 Months Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 60 Months limited warranty on this product. See warranty documentation for details.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Direct To Property

Buy Factory-Direct

ABI’s attachments are sold directly to the customer over the phone and internet and shipped via a common-carrier truck to your property! This factory-direct business model eliminates the middleman and dealer markups allowing ABI to provide better attachments for the money. Buying direct also ensures that you’re not limited to a local dealer’s in-stock inventory; instead, you have access to every model, size, and configuration we offer, and you can have it shipped to you in just a few days. We think this is a better way to do business, as it gives you more options, and you get to work directly with the people who design and build attachments.

Tow Vehicle Requirements

M3 M3 Duo M3x M3x Duo
Vehicle Type Large ATV, Small UTV, or Sub-Compact Tractor Large ATV, Small UTV, or Sub-Compact Tractor Mid - Large UTV or Compact Tractor Mid - Large UTV or Compact Tractor
Min. Horsepower 18 h.p. 18 h.p. 24 h.p. 24 h.p.
Max. Horsepower 32 h.p. 32 h.p. 66 h.p. 66 h.p.
Min. CC 400 cc 400 cc 570 cc 570 cc
Max. CC 1,000 cc 1,000 cc 1,000 cc 1,000 cc
4-Wheel Drive Required
Outside Tire Max Width 53" 53" 69" 69"
Hydraulic Ports Needed - - - -
Front Weight Needed - - - -

Connection

M3 M3 Duo M3x M3x Duo
Pin Hitch Towable
2" Ball Coupler Towable Optional Optional Optional Optional
Ltd CAT 1 3-Point - - - -
CAT 1 3-Point - - - -
CAT 2 3-Point - - - -
Swivel 3-Point Hitch - - - -
Quick Hitch Compatible - - - -
Min. 3-Point Lift - - - -

Rollers

M3 M3 Duo M3x M3x Duo
# of Rollers 1 2 1 2
Front Roller - -
Rear Roller
Roller Type Twisted Bar Twisted Bar Twisted Bar Twisted Bar
Roller Diameter 9.5" 9.5" 9.5" 9.5"
Working Width 63.25" 63.25" 79" 79"

S-Tines (For Material Mixing or Low Moisture Footing)

M3 M3 Duo M3x M3x Duo
Choose Primary Engement Select S-Tine Or Scarifier Select S-Tine Or Scarifier Select S-Tine Or Scarifier Select S-Tine Or Scarifier
# of S-Tines 11 11 15 15
# of Rows 2 2 2 2
Adjustable Depth Range 0 - 4" 0 - 4" 0 - 4" 0 - 4"
Adjustable Pitch Control
Replaceable Points
Max Depth Gauge
Working Width 51" 51" 70" 70"

Scarifiers (For Dense Fiber, Clay, or High Moisture Footing)

M3 M3 Duo M3x M3x Duo
Choose Primary Engement Select S-Tine Or Scarifier Select S-Tine Or Scarifier Select S-Tine Or Scarifier Select S-Tine Or Scarifier
# of Scarifiers 13 13 17 17
# of Rows 2 2 2 2
Adjustable Depth Range 0 - 4" 0 - 4" 0 - 4" 0 - 4"
Adjustable Pitch Control - - - -
Max Depth Gauge
Working Width 51.5" 51.5" 72" 72"

Coil Tines

M3 M3 Duo M3x M3x Duo
# of Coil-Tines 16 16 20 20
# of Points 32 32 40 40
# of Rows 2 2 2 2
Adjustable Depth Range 0 - 4" 0 - 4" 0 - 4" 0 - 4"
Adjustable Pitch Control
Replaceable
Max Depth Gauge
Working Width 62.5" 62.5" 78" 78"

Smoothing Bar

M3 M3 Duo M3x M3x Duo
Adjustable Smoothing Bar
Working Width 66.25" 66.25" 82.25" 82.25"

Wheel Transport System

M3 M3 Duo M3x M3x Duo
Manual Jack
Electric Actuator Available Available Available Available

Options Available

M3 M3 Duo M3x M3x Duo
Rigid Scarifiers Optional Optional Optional Optional
S-Tines Optional Optional Optional Optional
Wall / Rail Blade Optional Optional Optional Optional
Wall Protection Wheel Optional Optional Optional Optional
Electric Actuator Available Available Available Available
2" Ball Coupler Optional Optional Optional Optional

Weights & Dims

M3 M3 Duo M3x M3x Duo
Unit Weight 600 lbs. 717 lbs. 658 lbs 779 lbs.
Shipping Weight 680 lbs. 800 lbs. 758 lbs. 879 lbs.
Unit Dimensions 115"L x 67.5"W x 42.25"H 115"L x 67.5"W x 42.25"H 115"L x 83.5"W x 42.25"H 115"L x 83.5"W x 42.25"H
Shipping Dimensions 72"L x 72"W x 44"H 72"L x 72"W x 44"H 87"L x 87"W x 44"H 87"L x 87"W x 44"H

Warranty

M3 M3 Duo M3x M3x Duo
Farm & Ranch Use 60 Months 60 Months 60 Months 60 Months
Commercial Use 12 Months 12 Months 12 Months 12 Months

Attributes

SportPro M3
Connection Pin Hitch / Drawbar, Ball Hitch
Tow Vehicle ATV / UTV, ATV, UTV, Sub-Compact Tractor, Compact Tractor
Size ,
Other Attributes NO Hydraulics Needed, NO PTO Needed
Market
Power Range 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV
