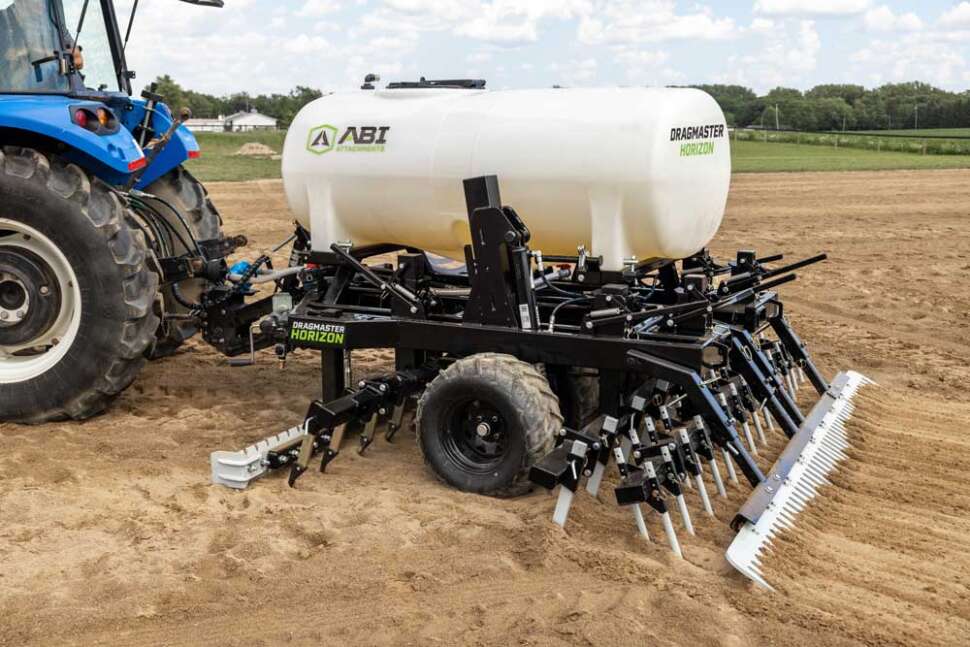

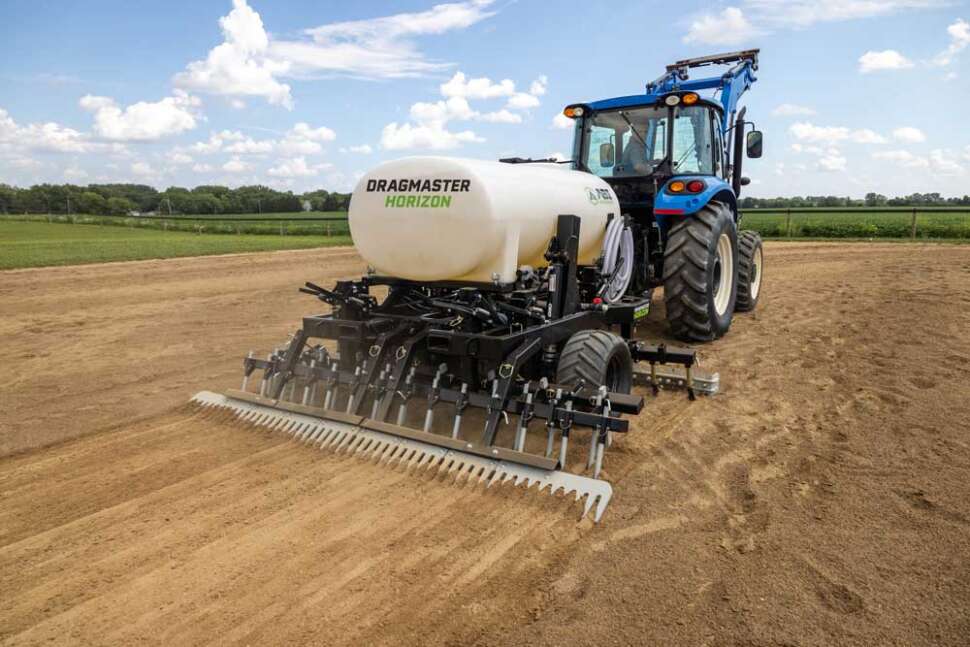

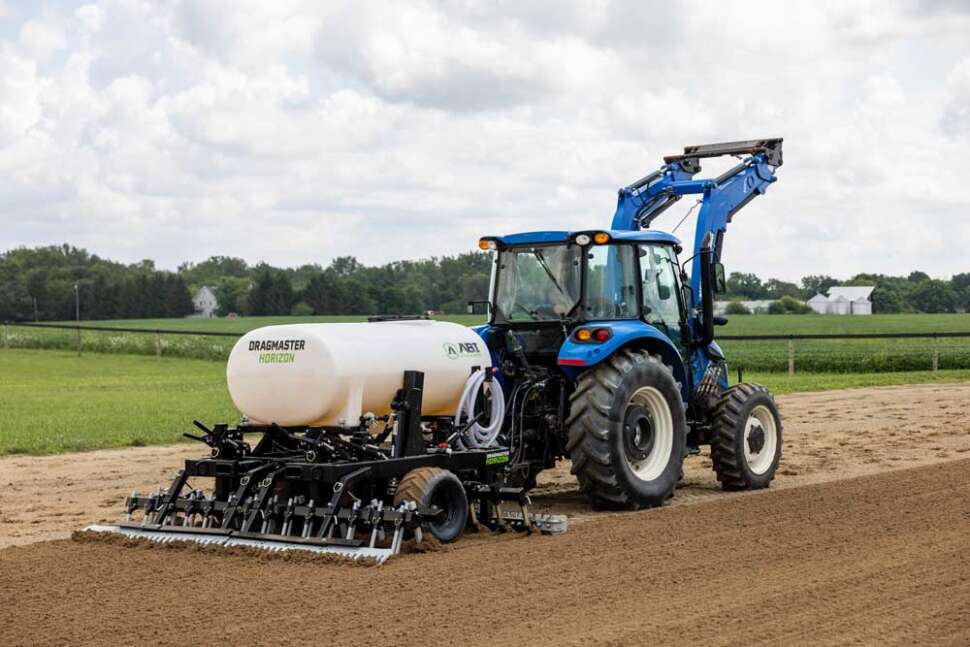

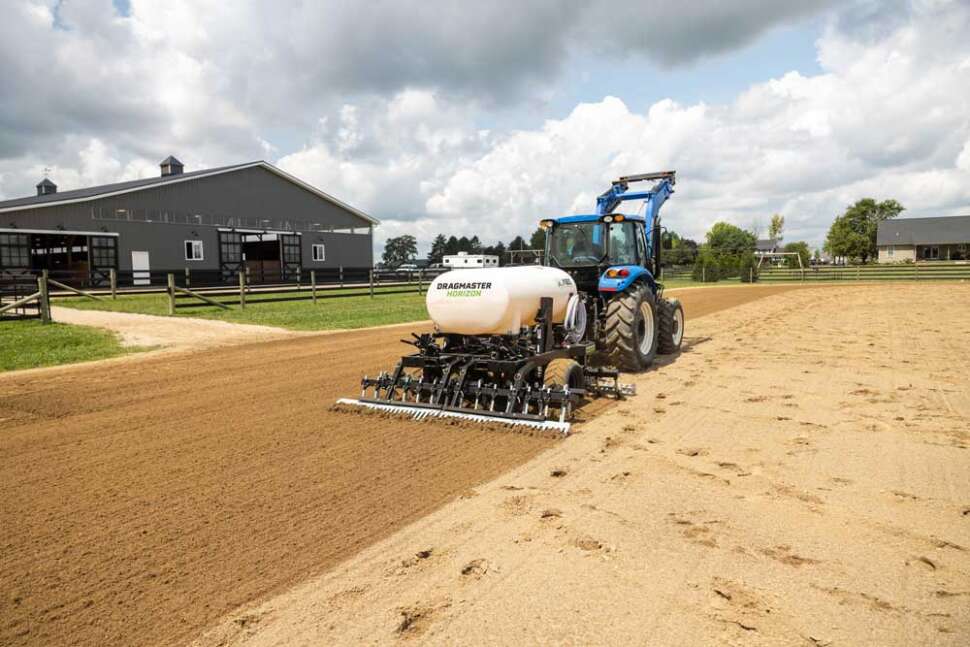

Dragmaster Horizon being pulled by a tractor in an outdoor arena

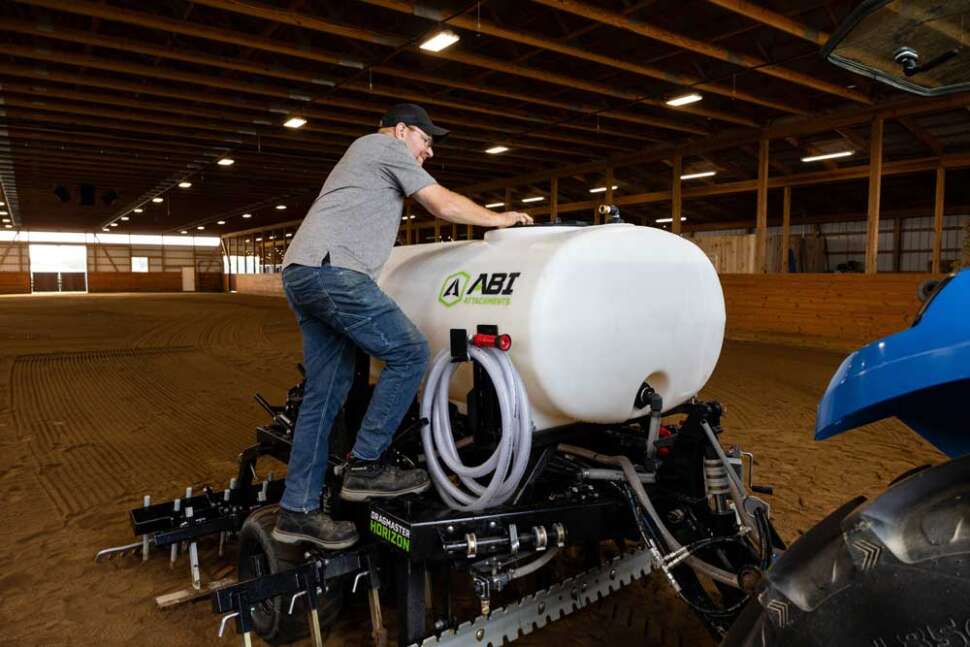

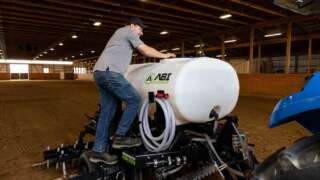

Dragmaster Horizon demonstrating how to step up to open the water tank.

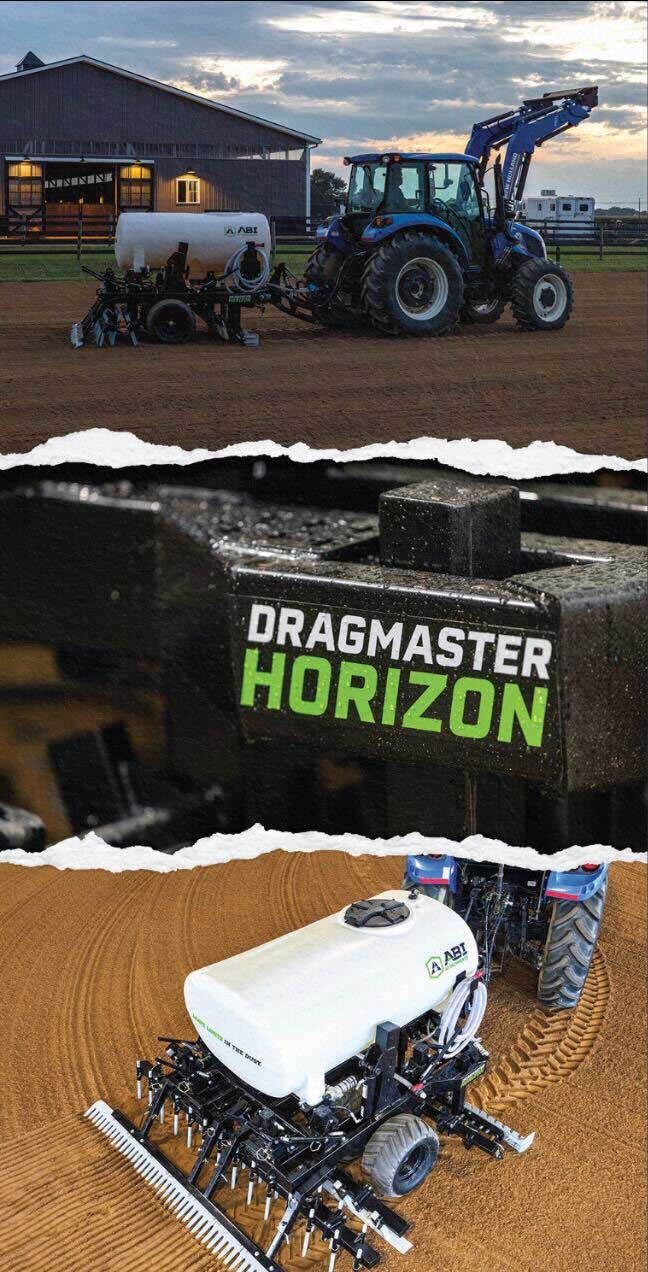

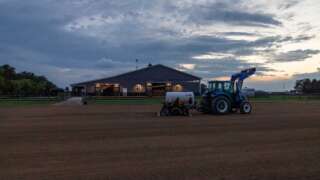

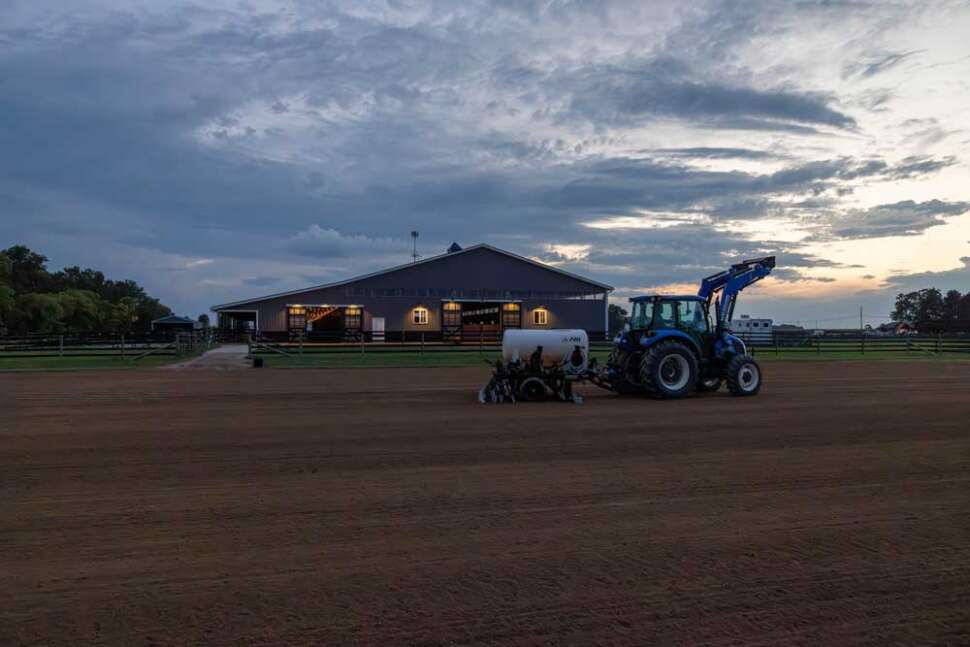

Dragmaster Horizon working at dusk in an outdoor arena

Dragmaster Horizon

Starting at: $410.00 /mo.*

Looking for Parts Support?

Categories: Arena Drag, Natural FootingTags: Commercial Use, Competition, Equestrians, Tractor

Leave Limits in the Dust

ABI Dragmaster Horizon builds upon the legacy of the world-renowned ABI Dragmaster with an entirely new design that is easier to operate, lightning-fast to adjust, and does not require a large tractor with advanced hydraulics or a highly skilled operator. Bringing world-class footing to any professional equine property, around the world. The Dragmaster Horizon's design elevates arena surface performance while being simple to learn and use.

The Dragmaster Horizon features five independently adjustable ground-engaging components:

hydraulic leveling blade
rapid-set scarifiers
rapid-set profile blades
floating finishing rake
an optional 340-gallon PTO water system

These reliably produce safe, consistent, and less dusty footing in any natural footing arena. But the innovative features don't stop there. The Dragmaster Horizon also comes with:

Threaded adjustment nut on the front cylinder to maintain the frame's levelness regardless of the drag’s lift range.
The universal working depth of all components is regulated with a ¼-inch incremented spacer system.
It's the only full-scale towable arena drag that requires only one set of hydraulic remotes on the tractor.
The scarifier, profile blade, and grooming rod component sections features its own proprietary Rapid-Set system.

Plus, the Dragmaster Horizon is available in 8’ or 10’ wide models and can expand as operational needs grow. The 8’ model optionally extends to a 10’ model if a larger tractor is purchased in the future, and a water system can be factory-installed or optionally ordered later as needs change.

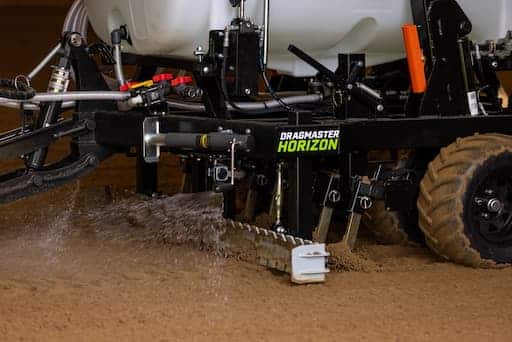

Hydraulic Leveling Blade

The first ground-engaging component of the Dragmaster Horizon is the high-capacity hydraulic leveling blade. This blade sits in a ground plane between the tractor and drag tires, providing superior footing leveling. The scalloped leveling blade sweeps away tractor tire compaction, cutting a smooth path for consistent bounce-free drag operation while maintaining proper footing levelness. The cutting edge can be flipped for double the wear life.

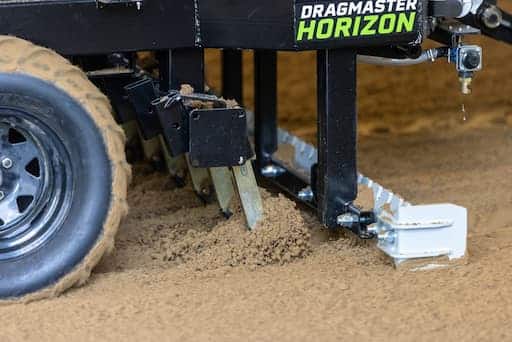

Rapid-Set Scarifiers

The rapid-set system manually adjusts all scarifiers to the same depth in just a few seconds. No individual shank adjustments, no hydraulics, and no guessing how deep the scarifiers are working. This system ensures a specific depth with physical stops in ¼-inch increments, providing peace of mind and preventing accidents.

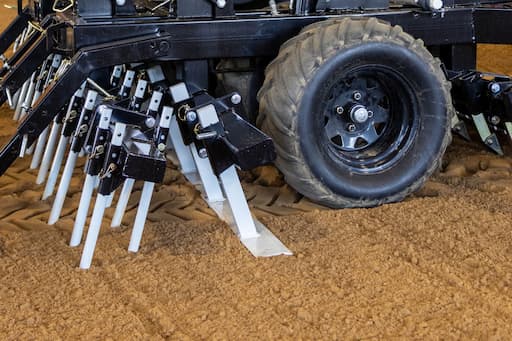

Rapid-Set Profile Blades

These innovative subsurface cutting blades work from the bottom up, cutting parallel to the arena grade, eliminating 100% of all ridges and hidden compaction below the footing surface. If the arena does not have a professionally installed base, the Profile Blades will improve the arena by packing the material below, creating a quasi-base.

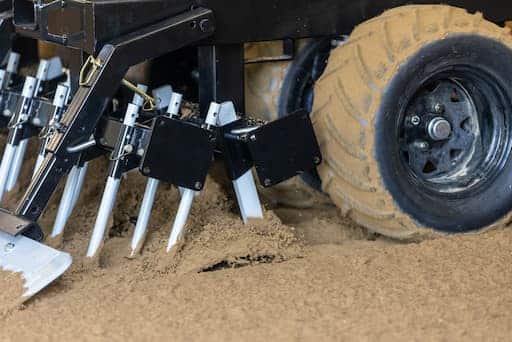

Rapid-Set Grooming Rods

When used in tandem with the profile blades, the grooming rods provide the desired base texture for any discipline. Adjust the grooming rods to ride below the profile blades to create grip for rodeo events, or adjust the profile blades to ride just below the grooming rods for a perfectly smooth and consistent base, ideal for reining and Western pleasure.

Floating Finish Rake

The fifth and final ground-engaging component is the floating Finish Rake, creating ABI’s signature finish. The ½” thick steel floating rake features flared ends, is adjustable, and is split into two independent sections for a perfect finish every time.

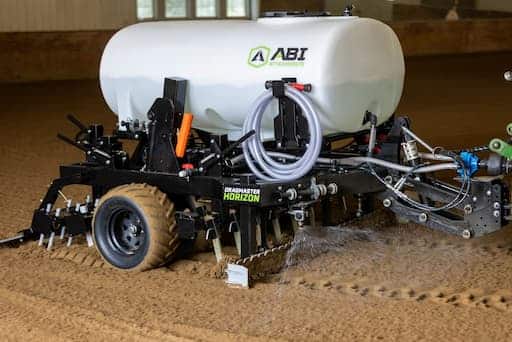

340 Gallon Water System

The Dragmaster Horizon’s optional 340-gallon PTO water system is controlled from the tractor’s seat, allowing operators to determine water application rate while dragging. The brass nozzles evenly spray water before the drag, allowing the ground-engaging components to incorporate the water into the footing. An optional rear single-point spray is also available for high-capacity water application behind the drag.

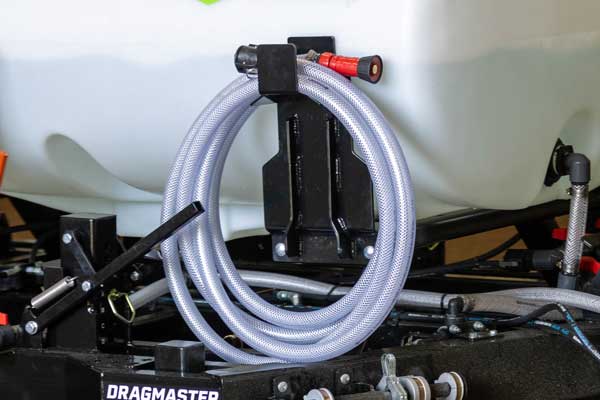

Spray Hose

A convenient optional spray hose allows for spraying into corners from the tractor’s seat and washing down equipment, as well as other facility watering needs. This requires the 340 Gallon Water System.

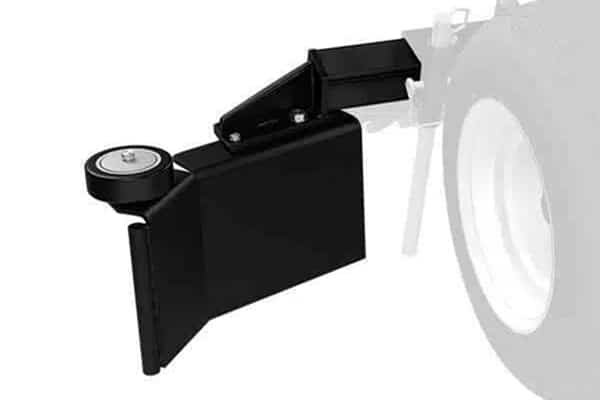

Rail Blade

Facilities with a full training schedule often have a problem with footing buildup around the arena walls, spending hours of manual labor trying to manually scrape it away from the walls and corners. Using the optional Rail Blade attachment, you can make a pass along the edge of your arena to pull the footing away and let your drag evenly distribute the material back where it belongs.

The optional rail blade, equipped with a safety trip system, offers an extended reach to grab footing buildup directly along the rail or wall and redirect it into the leveling blade for redistribution.

Second-Row Scarifiers

A second row of scarifiers is optionally available, and the scarifier tips are bolt-on for easy replacement once worn.

Push Blade

An optional push blade may also be installed in place of or in addition to the scarifiers for precision removal of tractor tire compaction ahead of the drag tires to ensure a completely smooth path.

Rear Single-point Spray Option

An optional rear single-point spray is also available for high-capacity water application behind the drag. This requires the 340 Gallon Water System.

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a limited warranty on this product. See warranty documentation for details.

See our Natural Footing Arena Drag Comparison Chart

ABI Natural Footing Arena Drag Models

Arena Rascal ProMulti-Purpose TR3e EquineMulti-Purpose TR3 RakeMulti-Purpose TR3e Trevor BrazileCompetition SpeedmasterCompetition DragmasterCompetition Dragmaster HorizonCompetition

ABI Dragmaster Horizon	Dragmaster Horizon		Dragmaster Horizon w/340 Gal Water
ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Drag Type	Tractor Towable		Tractor Towable
Max Working Width	94.75" (7' 10.75")	118.75" (9' 10.75")	94.75" (7' 10.75")	118.75" (9' 10.75")
Max Unit Width	94.75" (7' 10.75")	118.75" (9' 10.75")	94.75" (7' 10.75")	118.75" (9' 10.75")

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Vehicle Type	Utility Tractor w/Draw Bar		Utility Tractor w/Draw Bar
Min. Horsepower	50 hp	62 hp	55 hp	67 hp
Max. Horsepower	125 hp	125 hp	125 hp	125 hp
4 Wheel Drive	Required	Required	Required	Required
Hydraulic Remotes Needed	1 Remote / 2 Remotes w/Hydro Blade Tractor Control		1 Set Of Ports / 2 Sets With Level Blade Option
Min Tractor Weight	3,700 lbs.	5,000 lbs.	4,200 lbs.	5,500 lbs.
Front Weight Needed	Yes	Yes	Yes	Yes
Tire Type	Lug Tractor Tires		Lug Tractor Tires
Ideal Outside Tread Width	Up To 72" (6')	Up To 96" (8')	Up To 72" (6')	Up To 96" (8')
Max Outside Tread Width	78" (6' 6")	102" (8' 6")	78" (6' 6")	102" (8' 6")

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Type	Commercial		Commercial
Material	Tube Steel		Tube Steel
Transport	Towable w/Hydraulic Wheel Lift		Towable w/Hydraulic Wheel Lift
Depth Adjustment Increment	¼"	¼"	¼"	¼"
Leveling Adjustment	Infinite	Infinite	Infinite	Infinite
Tire Size	24" Diameter x 12" Width x 12" Rim	24" Diameter x 12" Width x 12" Rim	24" Diameter x 12" Width x 12" Rim	24" Diameter x 12" Width x 12" Rim
Tire Type	Bar Tread Tire - Air Filled		Bar Tread Tire - Air Filled
# Of Tires	4	4	4

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Type	Hydraulic Control		Hydraulic Control
Working Width	86.125" (7' 2.125")	110.75" (9' 2.75")	86.125" (7' 2.125")	110.75" (9' 2.75")
Selectable Down Position	Yes, ¼" Increments	Yes, ¼" Increments	Yes, ¼" Increments	Yes, ¼" Increments
Manual Hand Pump Control*	Optional, No Additional Rear Remotes Needed		Optional, No Additional Rear Remotes Needed
Hydraulic Tractor Control*	Optional, 2 Total Sets Of Remotes Needed		Optional, 2 Total Sets Of Remotes Needed
Cutting Edge	Scalloped, Replaceable in 2 Sections		Scalloped, Replaceable in 2 Sections

* Select only one

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Manual Rapid-Set System	Yes	Yes	Yes	Yes
Depth Adjustment Increment	¼"	¼"	¼"	¼"
Working Width	76.375" (6' 4.375")	105.875" (8' 9.875")	76.375" (6' 4.375")	105.875" (8' 9.875")
Working Depth	0" - 8"	0" - 8"	0" - 8"	0" - 8"
# of Scarifiers	8	12	8	12
Optional 2nd Row	Available - Add 5hp	Available - Add 5hp	Available - Add 5hp	Available - Add 5hp
# of Scarifiers w/2nd Row	17	23	17	23
Type	Rigid Shank - With Replaceable Tip (Bolt-On)		Rigid Shank - With Replaceable Tip (Bolt-On)
Scarifier Shank Length	12"	12"	12"	12"

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Manual Rapid-Set System	Yes	Yes	Yes	Yes
Depth Adjustment Increment	¼"	¼"	¼"	¼"
Working Width	83.75" (6' 11.75")	111.75" (9' 3.75")	83.75" (6' 11.75")	111.75" (9' 3.75")
Working Depth	0" - 6.5"	0" - 6.5"	0" - 6.5"	0" - 6.5"
# Of Blades	3	4	3	4

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Manual Rapid-Set System	Yes	Yes	Yes	Yes
Depth Adjustment Increment	¼"	¼"	¼"	¼"
Working Width	79.75" (6' 7.75")	106.25" (8' 10.25)"	79.75" (6' 7.75")	106.25" (8' 10.25)"
Working Depth	0" - 10"	0" - 10"	0" - 10"	0" - 10"
Grooming Rod Spacing	7.875" (7 ⅞")	7.875" (7 ⅞")	7.875" (7 ⅞")	7.875" (7 ⅞")
Front To Rear Spacing	4.4375 (4 7/16")	4.4375 (4 7/16")	4.4375 (4 7/16")	4.4375 (4 7/16")
# of Grooming Rods	21	27	21	27
Grooming Rod Length	16"	16"	16"	16"

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Type	Floating, Split In Two Sections, & Adjustable		Floating, Split In Two Sections, & Adjustable
Working Width	94.75" (7' 10.75")	118.75" (9' 10.75")	94.75" (7' 10.75")	118.75" (9' 10.75")
Floating Split Rake	Yes	Yes	Yes	Yes
Rake Material	1/2" Steel	1/2" Steel	1/2" Steel	1/2" Steel
Replaceable	Yes, In Sections	Yes, In Sections	Yes, In Sections	Yes, In Sections
Flared Ends	Yes	Yes	Yes	Yes

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Water Capacity	-	-	340 Gallons	340 Gallons
PTO Pump	-	-	YES	YES
# Of Nozzles	-	-	2	2
GPM Range of Pump	-	-	15-25GPM at 540rpm	15-25GPM at 540rpm
AutoFill Shutoff Valve	-	-	Yes	Yes
Full Drain Tank	-	-	Yes	Yes
Spray Hose	-	-	Available Option	Available Option
Rear Single-Point Spray	-	-	Available Option	Available Option

ABI Dragmaster Horizon	8'	8' w/340 Gal Water
Manual Hand Pump Blade Control	Available Option	Available Option
Tractor Hydraulic Blade Control	Available Option (Requires 2 Hydro Remotes)	Available Option (Requires 2 Hydro Remotes)
Wall / Rail Blade	Available Option	Available Option
Rear Single-Point Spray	-	Available
Spray Hose	-	Available
2nd Row Of Scarifiers	Available Option - Requires 5hp More	Available Option - Requires 5hp More
Push Blade	Available Option - Requires 5hp More	Available Option - Requires 5hp More

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Unit Weight	2,635 lbs.	2,945 lbs	2,640 lbs.	2,950 lbs.
Unit Weight + Water	-	-	5,515 lbs.	5,785 lbs.
Shipping Weight	2,675 lbs.	2,945 lbs	2,640 lbs.	2,950 lbs.
Unit Dimensions	95"W x 152" L x 48" H	119" W x 152" L x 48" H	95" W x 152" L x 70" H	119" W x 152" L x 70" H
Shipping Dimensions	95" W x 100" L x 48" H	119" W x 100" L x 48" H	95" W x 100" L x 70" H	119" W x 100" L x 70" H

ABI Dragmaster Horizon	8'	10'	8' w/340 Gal Water	10' w/340 Gal Water
Farm & Ranch Use	12-month		12-month
Commercial Use	12-month		12-month
