TR3 “E” Trevor Brazile Edition

Trevor's Roping & Rodeo Arena Drag

Need a Quote and Information?

Arena Drag for Roping and Rodeo Events

Trevor Brazile, the world's most decorated roper, has teamed up with ABI Equine, the world's largest arena drag manufacturer to create the TR3 E - Trevor Brazile Edition, the most innovative and effective arena drag designed specifically for roping and rodeo events.
Trevor Brazile - Render

Trevor & ABI: A Champion’s Partnership

The TR3 E – Trevor Brazile Edition is the result of over 20 years of innovative technology and roping experience. Trevor and ABI set out to engineer an arena drag designed specifically for the performance horse. Your horse deserves perfectly-conditioned footing to push off from, but the back half of the box is one of the most overlooked areas of a roping arena. It effectively prepares the starting blocks for your horse. “It’s the perfect drag in my opinion. That’s why I put my name on it,” says Trevor.

Line Drawing

U.S. Patents

2

Ground-Engaging Components

5

H.P. Rating

27 - 85

Limited Warranty

60 mo.

The TR3 E – Trevor Brazile Edition was designed for ropers and has up to five fully adjustable ground engaging components including the newly designed, innovative hydraulic rake envisioned by Trevor himself! These adjustable components give you the control you need to prepare the ground throughout the arena and inside the box!

Loosen

The rake raises to get the ground engaging components into the back of the box to loosen compaction. Then, with precision control, the rake lowers to create a consistent finish between the box and the arena.

Fill

If the box needs filled, the hydraulic finish rake can also push material back, or it can collect displaced material and pull it into the box.

Finish

Outside of the box, the hydraulic finish rake can pivot into a variety of finishing and grading positions to optimize material flow, pulverize clumps, and expertly create ABI’s famous signature finish!

Design

5 Ground-Engaging Components

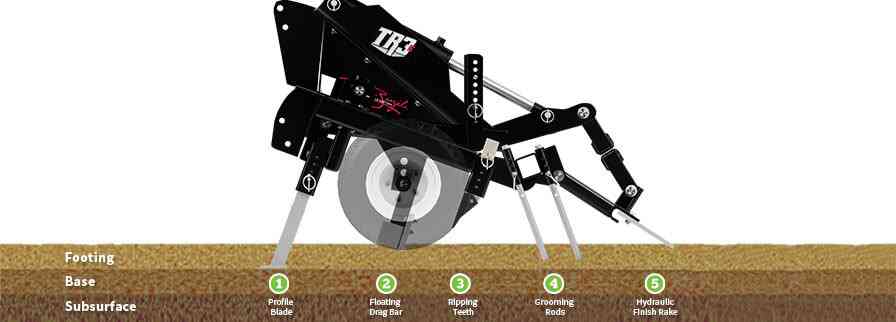

The TR3 E – Trevor Brazile Edition has 5 points of contact with the ground! These independently adjustable components give you the control needed to groom, properly prepare, and renovate both the arena and the roping box, just like Trevor Brazile does in his personal arenas!

TR3E - Trevor Brazile

Hydraulic Finish Rake

The hydraulic finish rake is a game changer for ropers. The roping box is critical for getting the best times in competition. The TR3 E – Trevor Brazile Editon is the first and only arena drag that is engineered to work inside the box with ease! The rake raises to get the ground engaging components into the back of the box to loosen compaction. Then, with precision control, the rake lowers to create a consistent finish between the box and the arena.

Degree Rotation

Built For The Box

The hydraulic finish rake is a game changer for ropers. The roping box is critical for getting the best time in competition. The TR3 E – Trevor Brazile Edition is the first and only arena drag that is engineered to work inside the box with ease!

The TR3 E – Trevor Brazile Edition has up to 5 ground engaging components that groom, properly prepare, and renovate roping arenas and the box. These adjustable components provide proven innovation that helps keep your horses performing to their maximum ability!

Hydraulic Components

Hydraulic Finish Rake

Pivot into a variety of finishing and grading positions

The hydraulic finish rake is a game changer for ropers. The roping box is critical for getting the best times in competition. The TR3 E – Trevor Brazile Editon is the first and only arena drag that is engineered to work inside the box with ease! The rake rotates 120° to get the ground engaging components into the back of the box to loosen compaction. With precision control, the rake lowers to create a consistent finish between the box and the arena. If the box needs filled, the hydraulic finish rake can also push material back, or it can collect displaced material and pull it into the box. Outside of the box, the hydraulic finish rake can pivot into a variety of finishing and grading positions to optimize material flow, pulverize clumps, and expertly create ABI’s famous signature finish!

Grooming Components

Grooming Rods

Break up slight compaction

Many arena drags on the market today incorporate grooming rods into their design. The problem is, is that they count on these grooming rods as their primary loosening tool. Not with the TR3 E – Trevor Brazile Edition! Our grooming rods serve several very important functions.

  1. The first is to give a second loosening action after the drag bar. Anytime you pull a blade with material on it, the footing will tighten up some. So, our grooming rods are positioned behind the blade to break up the slight compaction from the blade. The primary loosening of the arena footing comes from the profile blades or ripping teeth and not our grooming rods.
  2. The second function is to add a little “texture” when wanted right about the base of the arena. In many disciplines, the horse needs a little “grip” right above the base for traction. This helps with barrel racing and jumping specifically. You simply lower the grooming rods below the profile blade and you get the best of both worlds! With the profile blades you get a consistent footing with no compaction clear down to the base and with the grooming rods you get the “grip” desired for some traction.
  3. The last purpose of these grooming rods is to relieve any final compaction from the stabilizing wheels.

These grooming rods are adjustable and can wear 6″ before needing replaced!

Teeth Components

Ripping Teeth

Easily penetrate compacted arena footing

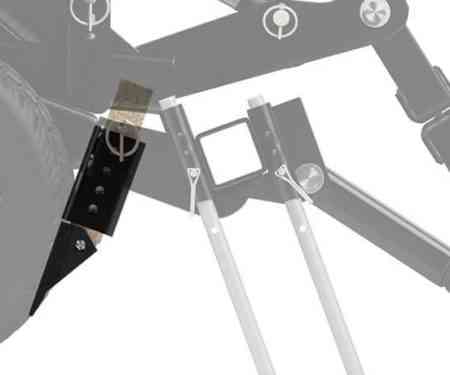

The ripping or scarifying teeth loosen the ground to eliminate hard spots and easily penetrate compacted arena footing. The depths of these teeth are controlled by the stabilizing wheels to protect the base of the arena. Many equine disciplines require different footing depths and every footing material is different. The TR3 E – Trevor Brazile Edition ripping teeth are adjustable from 0″ – 7″ to enable the perfect amount of aggressiveness and loosening depth. The TR3 E Series is not only limited to the horse arena. If fact, because the teeth are “fixed”, not spring loaded, they make breaking up hardpan soil or gravel a breeze. Many customers use the TR3 E – Trevor Brazile Edition on gravel driveways and for light property maintenance.

Because the ripping or scarifying teeth can handle nearly any ground condition from horse arenas to gravel driveways the TR3 E – Trevor Brazile Edition teeth have replaceable bolt on tips. This feature not only ensures affordable and easy maintenance, of this wear part, but it also ensures peak ground penetration no matter the ground condition. If the tips wear to the point that performance is diminished, simply replace them and restore the performance to like new! Many competitive drags require the owner to grind off the worn parts and weld on new ones.

Wheel Components

Stabilizing Wheels

Find the perfect position for general grooming, preparing or renovating

The TR3 E – Trevor Brazile Edition frame is stabilized by our U.S. patented stabilizing wheels. Located in the center of the frame, these wheels provide positive depth control to all of the TR3 E – Trevor Brazile Edition components. With 3 height adjustments, its easy to find the perfect position for general grooming, preparing or renovating.

All 3-point tractor implements move in the opposite direction of the front tires of the tractor. If the front tires of the tractor go up, the 3-point goes down. This causes most 3-point implements to dig holes and cause waves in horse arenas. This problem is solved with our floatation stabilizing wheels. These wheels prevent the TR3 E – Trevor Brazile Edition from undulating with the tractors front tires, keeping the loosening components from going any deeper than they are set and preventing the leveling blade from digging holes. The wheels control the depth of the loosening action, create consistent level travel to eliminate wash boarding and eliminates gouging and stalling of the tractor while pushing backward by supporting the frame. Additionally, these wheels support side-to-side “dipping” while cornering. These wheels are the secret to properly preparing your arena footing.

TR3 “E” Equine Edition - Profile Blade

Profile Blades

Loosen footing without creating ridges

Profile blades are a major differentiator between the TR3 E – Trevor Brazile Edition and its competitors. Because of this patented concept, the desire to loosen footing without creating ridges can finally be realized. Similar to a sod cutting blade the profile blades cut parallel to the arena grade. So, instead of ripping through footing with perpendicular teeth these profile blades slice through the footing in quarter inch increments and loosen the footing as deep as seven inches. Now with every single pass of the tractor the TR3 E – Trevor Brazile Edition will be loosing 100% of the footing! This saves an enormous amount of time on the tractor because the driver no longer has to make two or three passes over the same footing with different patterns! The profile blade cleans the base of compaction and lifts the footing material to add cushion.

TR3 “E” Equine Edition - Rail Blade

Rail Blade

Eliminate hours of back breaking-work

The optional TR3 E – Trevor Brazile Edition rail blade eliminates footing material buildup along the rail of a horse arena. This option saves hours of labor by eliminating the need to manually rake out, tractor accessible, arena edges. The breakaway shear bolt, edge wheel, and edge marker stake pocket all contribute to assist the operator with damage free operation near wood fences, walls, and rails. (Driveway Marker Stake not included, available at local hardware)

TR3E - Equine Disk

Food Plot Disc

The rodeo arena isn’t the only place you’ve got work to get done. If your dirt prep to-do list takes you from inside the rails to outside the tree line you need an attachment that can keep up with you. A set of the optional Food Plot Discs can be swapped for your Profile Blade to turn your favorite arena groomer into your new favorite food plot soil prep tool.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty For Farm, Ranch, and Commercial Tools

60-Month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 60-month limited warranty on this product. See warranty documentation for details.

Tow Vehicle Requirements

TR3 E Trevor Brazile 6' 7' 8'
Vehicle Type Tractor with 3-Point Tractor with 3-Point Tractor with 3-Point
Min. Horsepower 27 h.p. 35 h.p. 45 h.p.
Max. Horsepower 65 h.p. 75 h.p. 85 h.p.
4 Wheel Drive Required Required Required
3-Point Category CAT 1 CAT 1 CAT 1
Min. 3-Point Lift 690 lbs. 780 lbs. 880 lbs.
Hydraulic Ports Needed Yes, 1 Set (2 Ports) Yes, 1 Set (2 Ports) Yes, 1 Set (2 Ports)
Front Weight Needed Yes, Min 20% of Total Machine Weight Required Yes, Min 20% of Total Machine Weight Required Yes, Min 20% of Total Machine Weight Required

Unit Weights & Dimensions

TR3 E Trevor Brazile 6' 7' 8'
Full Unit Weight 785 lbs. 890 lbs. 1,015 lbs.
Full Shipping Weight 875 lbs. 1,010 lbs. 1,135 lbs.
Unit Dimensions 71"W x 60"D x 37"H 83"W x 60"D x 37"H 95"W x 60"D x 37"H
Shipping Dimensions 72"W x 54"D x 45"H 84"W x 54"D x 45"H 90"W x 54"D x 45"H

Frame Construction

TR3 E Trevor Brazile 6' 7' 8'
3-Point Hitch CAT 1 CAT 1 CAT 1
Quick Hitch Compatible Yes Yes Yes
Type Farm & Ranch Grade Farm & Ranch Grade Farm & Ranch Grade
Material Tube Steel Tube Steel Tube Steel
Tire Size 16.5" Diameter x 6.5" Width x 8" Rim 16.5" Diameter x 6.5" Width x 8" Rim 16.5" Diameter x 6.5" Width x 8" Rim
Tire Type Turf Tire - Air Filled Turf Tire - Air Filled Turf Tire - Air Filled

Finish Rake

TR3 E Trevor Brazile 6' 7' 8'
Type Hydraulically Adjustable Relationship To Frame Hydraulically Adjustable Relationship To Frame Hydraulically Adjustable Relationship To Frame
Raking Width 71" (5.92') 83" (6.92') 95" (7.92')
Rake Material 1/2" Steel - Laser Cut (Replaceable in sections) 1/2" Steel - Laser Cut (Replaceable in sections) 1/2" Steel - Laser Cut (Replaceable in sections)
Flared Ends Yes Yes Yes
Push Material Backward Completely Loose Material Only Completely Loose Material Only Completely Loose Material Only

Grading Blade

TR3 E Trevor Brazile 6' 7' 8'
Type Floating, Fixed, or Float Within Range Floating, Fixed, or Float Within Range Floating, Fixed, or Float Within Range
Grading Width 45.5" (3.79') 57.5" (4.79') 69.5" (5.78')
Cutting Edge Solid, Replaceable Solid, Replaceable Solid, Replaceable
Hinged Cutting Edge No No No
Hydraulic Adjustment No No No

Scarifiers

TR3 E Trevor Brazile 6' 7' 8'
Type Rigid Shank - With Replaceable Tip (Bolt-On) Rigid Shank - With Replaceable Tip (Bolt-On) Rigid Shank - With Replaceable Tip (Bolt-On)
Scarifying Width 44.4" (3.7') 56.5" (4.71') 68.5" (5.71')
Scarifying Depth 0" - 4 3/4" 0" - 4 3/4" 0" - 4 3/4"
# of Scarifiers 4 6 8
Hydraulic Adjustment No No No
Scarifier Shank Length 7" 7" 7"

Grooming Rods

TR3 E Trevor Brazile 6' 7' 8'
# of Grooming Rods 9 13 17
Grooming Width 54" (4.5') 67.5" (5.63') 78" (6.5')
Grooming Depth 0" - 8" 0" - 8" 0" - 8"
Grooming Rod Length 16" 16" 16"

Profile Blades

TR3 E Trevor Brazile 6' 7' 8'
Profile Blade Width 58" (4.83') 70" (5.83') 82" (6.83')
Profile Blade Depth 0" - 6" 0" - 6" 0" - 6"
Mounting Location Front Front Front
Unit Weight 93 lbs. 107 lbs. 120 lbs.

Warranty

TR3 E Trevor Brazile 6' 7' 8'
Farm & Ranch Use 60 Months 60 Months 60 Months
Commercial Use 12 Months 12 Months 12 Months
Bent Frame Coverage No No No

Usage

TR3 E Trevor Brazile 6' 7' 8'
Full Time Commercial Use No No No
Applications Arena Grooming, Driveway Grading, Property Work Arena Grooming, Driveway Grading, Property Work Arena Grooming, Driveway Grading, Property Work
English Specialities Dressage, Jumping, Pleasure Dressage, Jumping, Pleasure Dressage, Jumping, Pleasure
Western Specialities General, Pleasure, Reining, Cutting, Rodeo, Stock General, Pleasure, Reining, Cutting, Rodeo, Stock General, Pleasure, Reining, Cutting, Rodeo, Stock
