300 Gallon Compact Water Trailer

Farm Use: Min. Vehicle Weight: 1,500 lbs. On Flat Ground, Towing Capacity 3,300 lbs. On Uneven Terrain

Need a Quote and Information?

    Step 1 of 3

    Step 2 of 3

    Step 3 of 3


    300 Gal. Compact Water Trailer

    The 300 gallon compact ABI Water Trailer hauls and applies large volumes of water around the farm or property. This compact trailer, built on a low riding proprietary frame, is ideally suited for smaller tow vehicles such as UTVs and compact tractors. It is powered by an engine and pump to apply variable amounts of water from either the rear spray nozzle(s) (wide spray) or the available spray hose (spot application). Additionally, it has the ability to turn the flow of water on and off, on-the-fly, from the seat of the tow vehicle. Common uses include dust abatement, irrigation, hydration, watering, washing, and supplying in applications such as horse arenas, general property, nurseries, ballfields, pools, parks, farms, and more! The ABI Water Trailer comes loaded with features perfectly selected to make this an invaluable and versatile trailer for your water application needs. Not for use on public roadways.

    300 Gal. Compact Water Trailer

    Our full line of ABI Water Trailers excel at arena moisture management, landscaping, dust abatement, property fire protection, cleaning equipment, stalls, and buildings, transporting potable water, and more! Whatever is on your list of jobs to accomplish with your ABI Water Trailer, we’ve loaded it with thoughtful features that help you get them done quicker and better than before. With quick and convenient filling capabilities, easy-to-use hoses and spray nozzles, and a full-drain tank on our custom-built frame, our water trailers are easy to fill, easy to operate, and easy to own!

    frame-large

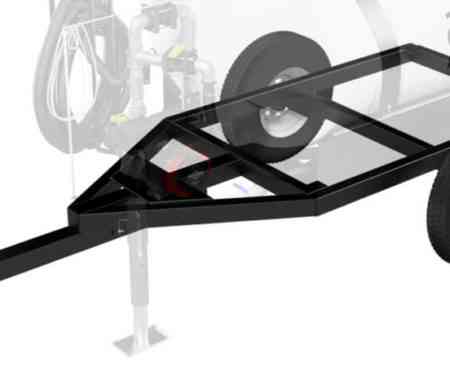

    Purpose-Built Rugged Steel Frame

    Built Better Than The Rest

    No matter how you spin it, a water trailer is only as good as the frame it’s built upon. Our frames are purpose-built and are NOT converted car haulers or a purchased component (like many competitors’). We design and build our own frames, giving us complete control of durability, safety, and functionality. No matter the size, our frames are constructed of fully-welded steel (no wood!), have an adjustable hitch with choice of coupler, feature leaf-spring or torsion suspension, and come with electric brakes on all D.O.T. or 1600 gallon models.

    tank-large

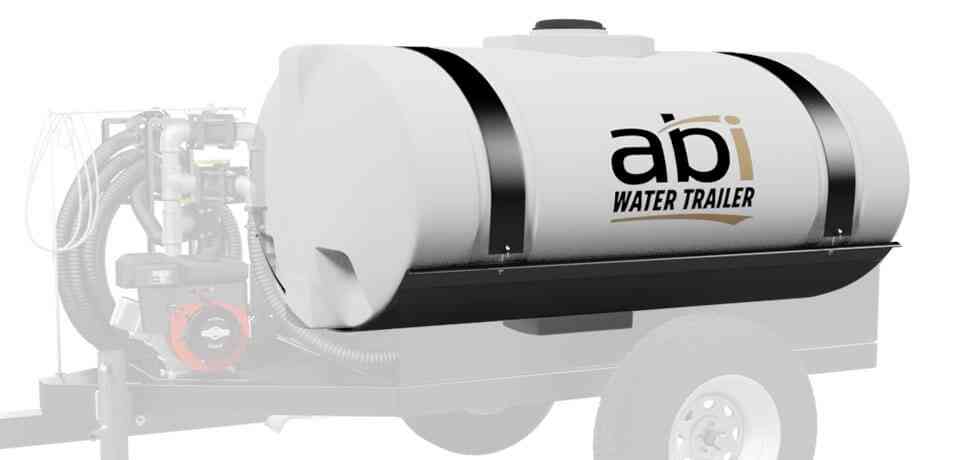

    Full-Drain Custom Molded Tank

    Fully Drain For Easy Cleaning

    Each tank is rotationally-molded and fully drains for easy cleaning. Many competitors’ tanks do not fully drain, making it nearly impossible to throughly clean (needed for potable water usage) or flush out sediment from filling the tank with pond water. Most ABI models have elliptical tanks for easy access and a lower center of gravity. Choose between a white tank for easy water filling visibility or a black tank to reduce algae growth during water storage. The shape of our tanks also helps to minimize water sloshing during use.

    pump-large

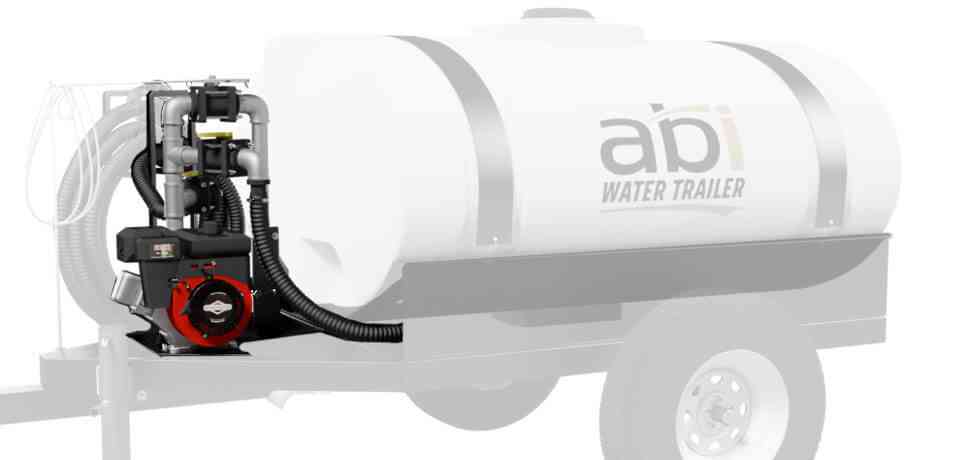

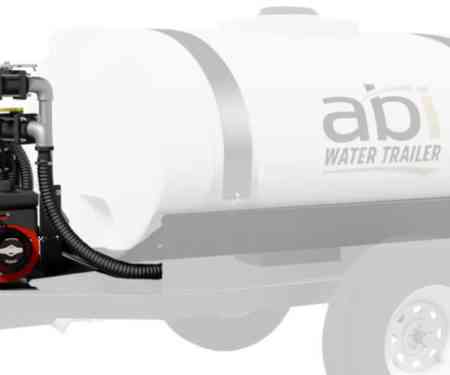

    Motor, Pump, & Plumbing System

    Enable Precision Application Of Water

    The available motor, pump, & plumbing systems enable precision application of water for a variety of applications. Depending on the model, we offer powerful Honda and Briggs & Stratton brand engines that are then perfectly matched with the right pump to maximize performance for the trailer’s application. We expect impressive performance, so the entire plumbing system is equipped with the best quality valves and the ability to adjust water pressure and flow from the engine, the valves, or a combination of the two.

    spray-nozzle

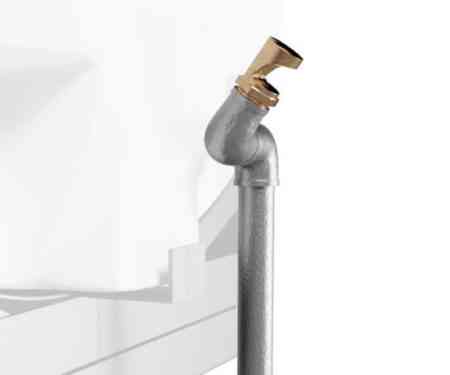

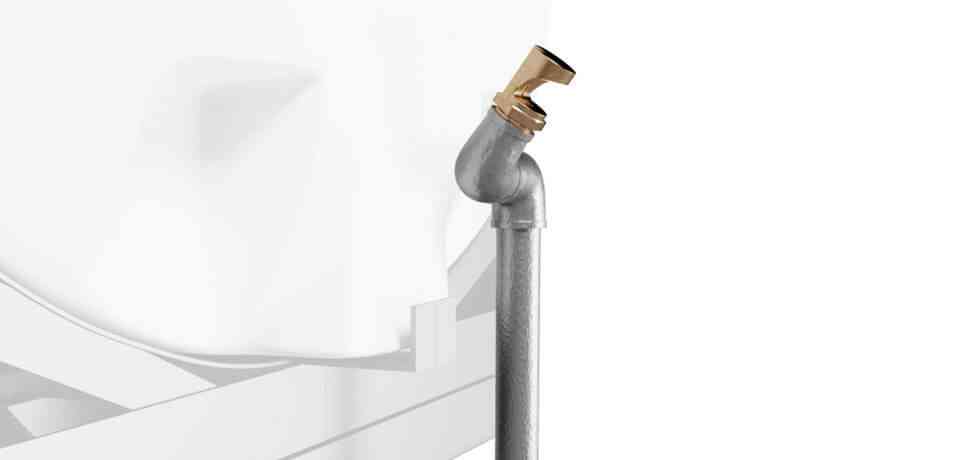

    Spray System & Brass Nozzles

    Ensures A Consistent Application Of Water

    The available rear spray system with brass nozzle(s) ensures a consistent application of water to the ground when configured with a motor and pump. The brass nozzle(s) provide superb coverage and can be adjusted to direct the spray as desired. Our full-size water trailers come standard with 3 nozzles on a steel spray bar that also include valves to selectively turn the outer nozzles on or off, or to adjust their flow. The compact-size water trailers have either 1 or 2 nozzles depending on the application.

    spray-hose2

    Convenient, Powerful Spray Hose

    Perfect For Countless Applications

    The available spray hose extends the functionality of trailers equipped with a motor and pump. The spray hose is perfect for cleaning projects, watering landscaping, filling troughs, fire protection, and countless other applications! Easily stores on the carrying rack and includes quick-couplers to connect and disconnect with ease.

    flow-control

    Easy On/Off Flow Control

    Without Getting Off Of The Tractor Or ATV

    A ratcheting valve and attached rope enables the tractor operator to turn the flow of water on and off without getting off of the tractor or ATV! Shutting off water flow when traveling over areas that have already been watered conserves water and eliminates inconsistent or over-watering that can be detrimental in certain applications. Add the optional electric on/off control for use inside a truck or other commercial applications!

    auto-fill

    Auto-Fill Shut Off

    Saves Time, Hassle, & Worry

    This new valve automatically shuts off the flow of water from a garden hose when the tank is full, saving time and worry. Now you can fill the tank overnight or continue on with your day’s work, and the trailer will be full and ready to spray when you are.

    quick-fill

    Quick Fill System

    Easy Filling Of The Tank

    For water trailers equipped with a motor and pump, the available quick-fill system allows easy filling of the tank from a pond or other available water source in mere minutes. These hoses feature quick couplers and conveniently stores on the carrying rack.

    engine

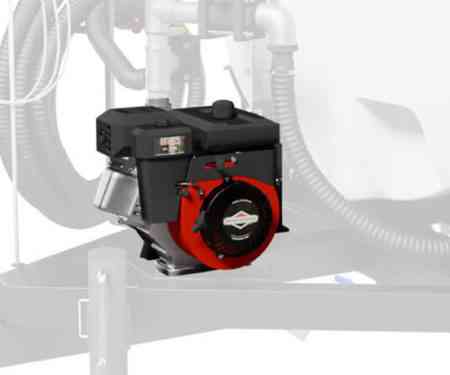

    Briggs & Stratton Engine

    Delivers More Power

    The available Briggs & Stratton engine features an automotive-style air filter, cast iron cylinder sleeve, and dual ball bearings for longer life. The powerful 127cc engine with Overhead Valve Design (OHV) runs cooler and cleaner delivering more power, smoother operation, longer engine life, and improved fuel economy.

    flag-icon

    Manufactured Right Here

    You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

    Construction

    ABI Water Trailer300 Gal. Compact
    GVWR3,500 lbs.
    Unit Weight (Empty)750 lbs.
    Loaded Weight (w/Water)3,255 lbs.
    Compact ConstructionYes
    Commercial Construction-
    1 AxleYes
    2 Axles-
    Suspension-
    Electric Brakes-
    Fenders-
    Brake & Tail Lights-
    Full Drain TankYes
    Custom FrameYes
    Tire TypeRoad
    Tire SpecsWH205/75/14-5/45
    # of Lugs6
    Frame TypeTube Steel
    Hitch TypePin or Ball

    Options

    ABI Water Trailer300 Gal. Compact
    127 cc Briggs MotorYes
    5 h.p. GX 160 Honda Motor-
    1.5" Pump & PlumbingYes
    2" Pump & Plumbing-
    1 Rear Spray NozzleYes
    2 Rear Spray NozzlesYes
    3 Rear Spray Nozzles-
    Spray Hose / Pond FillYes
    Black Tank OptionYes
    Farm / Property OnlyYes
    Commercial / On-Road-

    Misc

    ABI Water Trailer300 Gal. Compact
    D.O.T. Compliant-
    Tow Vehicle TypeUTV / Tractor
    Warranty36 Months
    Made In USAYes

    Dimensions

    ABI Water Trailer300 Gal. Compact
    Unit Length132"
    Unit Width57"
    Unit Height57"

    Briggs & Stratton Motor/Pump

    ABI Water Trailer300 Gal. Compact
    127cc MotorYes
    Overhead Valve DesignYes
    Cast Iron Cylinder SleeveYes
    Poly Pump/1.5" PortsYes
    Self-Priming CentrifugalYes
    Flow to 190 GPMYes
    Pressure to 40 PSIYes
    Suction Lift to 15'Yes
    Pump WebsitePump Website
    Motor WebsiteMotor Website

    7 reviews for 300 Gallon Compact Water Trailer

    5 star
    85%
    4 star
    14%
    3 star
    0%
    2 star
    0%
    1 star
    0%
    Powered by Customer Reviews plugin
    1. Aaron R.

      Great Product! As a municipality, we use this trailer to water newly planted trees and landscape beds throughout our park system. The compact size is perfect for getting into small areas, and the pond fill hose lets us fill up at any available stormwater retention pond (usually about 10 minutes to fill up). This is a great product, very well-built and well-balanced! We look forward to many years of service from this incredible unit. Wonderful customer service as well; thank you, Craig!

      2 out of 2 people found this helpful. Was this review helpful to you?
      Yes
      No
    2. John Robinson

      Awesome water trailer for a horse facility – great for conditioning field and arena!!

      1 out of 1 people found this helpful. Was this review helpful to you?
      Yes
      No
    3. Josh M.

      Knocks down the dust. No complaints! It tows great behind my 62 hp ATV.

      Was this review helpful to you?
      Yes
      No
    4. Ride N Shine Farm

      Dust Free. We love this little gem! Easy for anyone to hook up. Cuts down on dust in the arenas. Great for anyone that does not have irrigation. Can also be pulled 100% full by a small rtv in 4 wheel drive.

      Was this review helpful to you?
      Yes
      No
    5. Linda

      Love it!! Easy operation, spreads water evenly for my arena, and we kept it full during the fire season!! No regrets getting this equipment!!

      Was this review helpful to you?
      Yes
      No
    6. Robert Williams

      Great Product. Very handy size for watering trees. We are currently in a drought and it is also handy for hauling water to a pasture where the pond is dry.

      Was this review helpful to you?
      Yes
      No
    7. Patrick Edson

      Stable on Slopes. I was most impressed pulling this wagon where I had to navigate slope of the hill. The weight distribution was perfect to avoid tipping the wagon or UTV that pulled it. Obviously, you need to avoid steep slopes, but this is a very stable product. The plastic nozzle on the hose cracked after 1 year of use. It would literally come off the hose during watering. It’s a small part, but they can improve that.

      Was this review helpful to you?
      Yes
      No
