TR3 “E” Trevor Brazile Edition

Trevor's Roping & Rodeo Arena Drag
Request Factory-Direct Quote & Advice

Arena Drag for ATVs/UTVs

Trevor Brazile, the world's most decorated roper, has teamed up with ABI Equine, the world's largest arena drag manufacturer to create the TR3 E - Trevor Brazile Edition, the most innovative and effective arena drag designed specifically for roping and rodeo events.

Arena Drag for ATVs/UTVs

Trevor & ABI: A Champion’s Partnership

The TR3 E – Trevor Brazile Edition is the result of over 20 years of innovative technology and roping experience. Trevor and ABI set out to engineer an arena drag designed specifically for the performance horse. Your horse deserves perfectly-conditioned footing to push off from, but the back half of the box is one of the most overlooked areas of a roping arena. It effectively prepares the starting blocks for your horse. “It’s the perfect drag in my opinion. That’s why I put my name on it,” says Trevor.

TR3 “E” Trevor Brazile Edition

U.S. Patents

2

Ground-Engaging Components

5

H.P. Rating

27 - 85

Limited Warranty

36 mo.

The TR3 E – Trevor Brazile Edition was designed for ropers and has up to five fully adjustable ground engaging components including the newly designed, innovative hydraulic rake envisioned by Trevor himself! These adjustable components give you the control you need to prepare the ground throughout the arena and inside the box!

Loosen

The rake raises to get the ground engaging components into the back of the box to loosen compaction. Then, with precision control, the rake lowers to create a consistent finish between the box and the arena.

Fill

If the box needs filled, the hydraulic finish rake can also push material back, or it can collect displaced material and pull it into the box.

Finish

Outside of the box, the hydraulic finish rake can pivot into a variety of finishing and grading positions to optimize material flow, pulverize clumps, and expertly create ABI’s famous signature finish!

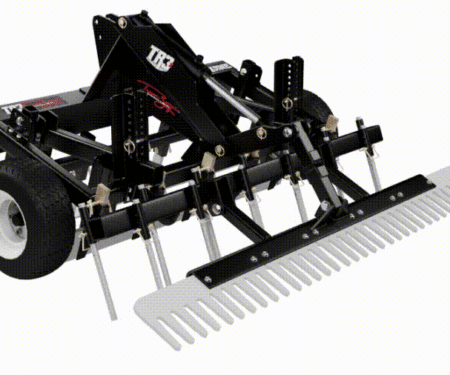

5 Ground-Engaging Components

When equipped with the optional Profile Blades, the TR3 E – Trevor Brazile Edition has 5 points of contact with the ground! These independently adjustable components give you the control needed to groom, properly prepare, and renovate both the arena and the roping box, just like Trevor Brazile does in his personal arenas!

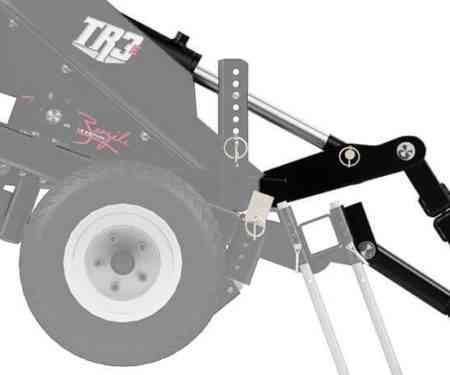

Hydraulic Finish Rake

Hydraulic Finish Rake

The hydraulic finish rake is a game changer for ropers. The roping box is critical for getting the best times in competition. The TR3 E – Trevor Brazile Editon is the first and only arena drag that is engineered to work inside the box with ease! The rake raises to get the ground engaging components into the back of the box to loosen compaction. Then, with precision control, the rake lowers to create a consistent finish between the box and the arena.

Built For The Box

Built For The Box

The hydraulic finish rake is a game changer for ropers. The roping box is critical for getting the best time in competition. The TR3 E – Trevor Brazile Edition is the first and only arena drag that is engineered to work inside the box with ease!

The TR3 E – Trevor Brazile Edition has up to 5 ground engaging components that groom, properly prepare, and renovate roping arenas and the box. These adjustable components provide proven innovation that helps keep your horses performing to their maximum ability!

Hydraulic Finish Rake

Hydraulic Finish Rake

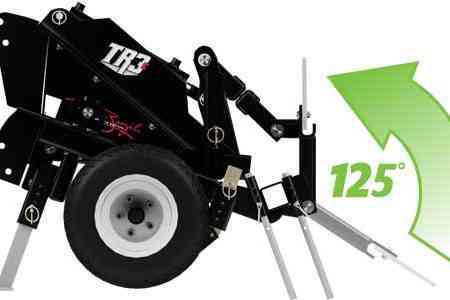

Pivot into a variety of finishing and grading positions

The hydraulic finish rake is a game changer for ropers. The roping box is critical for getting the best times in competition. The TR3 E – Trevor Brazile Editon is the first and only arena drag that is engineered to work inside the box with ease! The rake rotates 120° to get the ground engaging components into the back of the box to loosen compaction. With precision control, the rake lowers to create a consistent finish between the box and the arena. If the box needs filled, the hydraulic finish rake can also push material back, or it can collect displaced material and pull it into the box. Outside of the box, the hydraulic finish rake can pivot into a variety of finishing and grading positions to optimize material flow, pulverize clumps, and expertly create ABI’s famous signature finish!

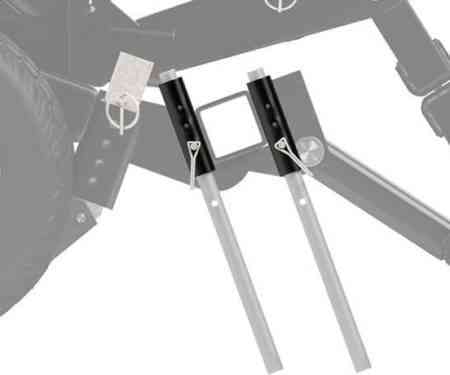

Grooming Rods

Grooming Rods

Break up slight compaction

Many arena drags on the market today incorporate grooming rods into their design. The problem is, is that they count on these grooming rods as their primary loosening tool. Not with the TR3 E – Trevor Brazile Edition! Our grooming rods serve several very important functions.

  1. The first is to give a second loosening action after the drag bar. Anytime you pull a blade with material on it, the footing will tighten up some. So, our grooming rods are positioned behind the blade to break up the slight compaction from the blade. The primary loosening of the arena footing comes from the profile blades or ripping teeth and not our grooming rods.
  2. The second function is to add a little “texture” when wanted right about the base of the arena. In many disciplines, the horse needs a little “grip” right above the base for traction. This helps with barrel racing and jumping specifically. You simply lower the grooming rods below the profile blade and you get the best of both worlds! With the profile blades you get a consistent footing with no compaction clear down to the base and with the grooming rods you get the “grip” desired for some traction.
  3. The last purpose of these grooming rods is to relieve any final compaction from the stabilizing wheels.

These grooming rods are adjustable and can wear 6″ before needing replaced!

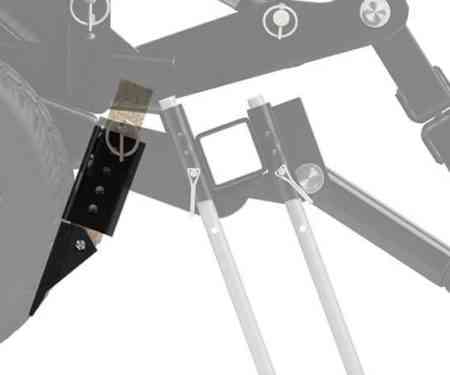

Ripping Teeth

Ripping Teeth

Easily penetrate compacted arena footing

The ripping or scarifying teeth loosen the ground to eliminate hard spots and easily penetrate compacted arena footing. The depths of these teeth are controlled by the stabilizing wheels to protect the base of the arena. Many equine disciplines require different footing depths and every footing material is different. The TR3 E – Trevor Brazile Edition ripping teeth are adjustable from 0″ – 7″ to enable the perfect amount of aggressiveness and loosening depth. The TR3 E Series is not only limited to the horse arena. If fact, because the teeth are “fixed”, not spring loaded, they make breaking up hardpan soil or gravel a breeze. Many customers use the TR3 E – Trevor Brazile Edition on gravel driveways and for light property maintenance.

Because the ripping or scarifying teeth can handle nearly any ground condition from horse arenas to gravel driveways the TR3 E – Trevor Brazile Edition teeth have replaceable bolt on tips. This feature not only ensures affordable and easy maintenance, of this wear part, but it also ensures peak ground penetration no matter the ground condition. If the tips wear to the point that performance is diminished, simply replace them and restore the performance to like new! Many competitive drags require the owner to grind off the worn parts and weld on new ones.

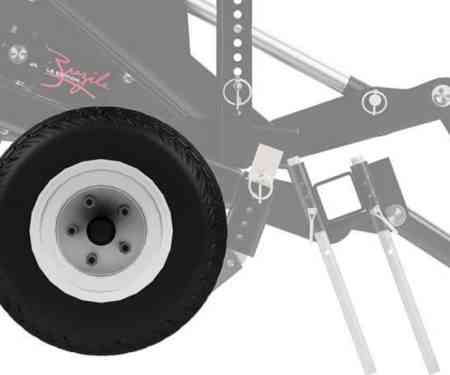

Stabilizing Wheels

Stabilizing Wheels

Find the perfect position for general grooming, preparing or renovating

The TR3 E – Trevor Brazile Edition frame is stabilized by our U.S. patented stabilizing wheels. Located in the center of the frame, these wheels provide positive depth control to all of the TR3 E – Trevor Brazile Edition components. With 3 height adjustments, its easy to find the perfect position for general grooming, preparing or renovating.

All 3-point tractor implements move in the opposite direction of the front tires of the tractor. If the front tires of the tractor go up, the 3-point goes down. This causes most 3-point implements to dig holes and cause waves in horse arenas. This problem is solved with our floatation stabilizing wheels. These wheels prevent the TR3 E – Trevor Brazile Edition from undulating with the tractors front tires, keeping the loosening components from going any deeper than they are set and preventing the leveling blade from digging holes. The wheels control the depth of the loosening action, create consistent level travel to eliminate wash boarding and eliminates gouging and stalling of the tractor while pushing backward by supporting the frame. Additionally, these wheels support side-to-side “dipping” while cornering. These wheels are the secret to properly preparing your arena footing.

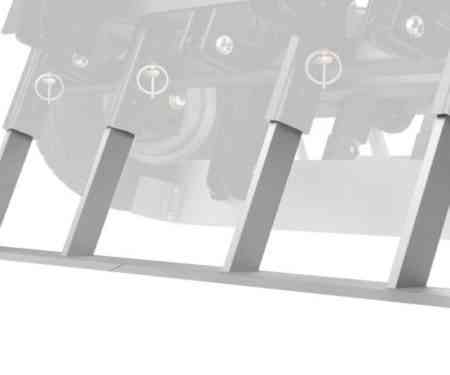

Profile Blades

Profile Blades

Loosen footing without creating ridges

Profile blades are a major differentiator between the TR3 E – Trevor Brazile Edition and its competitors. Because of this patented concept, the desire to loosen footing without creating ridges can finally be realized. Similar to a sod cutting blade the profile blades cut parallel to the arena grade. So, instead of ripping through footing with perpendicular teeth these profile blades slice through the footing in quarter inch increments and loosen the footing as deep as seven inches. Now with every single pass of the tractor the TR3 E – Trevor Brazile Edition will be loosing 100% of the footing! This saves an enormous amount of time on the tractor because the driver no longer has to make two or three passes over the same footing with different patterns! The profile blade cleans the base of compaction and lifts the footing material to add cushion.

Optional Equipment

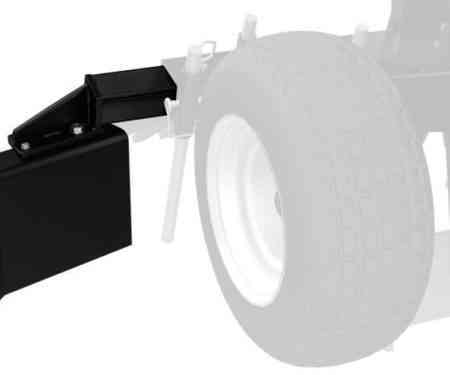

Rail Blade

Rail Blade

Eliminate hours of back breaking-work

The optional TR3 E – Trevor Brazile Edition rail blade eliminates footing material buildup along the rail of a horse arena. This option saves hours of labor by eliminating the need to manually rake out, tractor accessible, arena edges. The breakaway shear bolt, edge wheel, and edge marker stake pocket all contribute to assist the operator with damage free operation near wood fences, walls, and rails. (Driveway Marker Stake not included, available at local hardware)

Tow Vehicle Requirements

TR3 E Trevor Brazile6'7'8'
Vehicle TypeTractor with 3-PointTractor with 3-PointTractor with 3-Point
Min. Horsepower27 h.p.35 h.p.45 h.p.
Max. Horsepower65 h.p.75 h.p.85 h.p.
4 Wheel DriveRequiredRequiredRequired
3-Point CategoryCAT 1CAT 1CAT 1
Min. 3-Point Lift690 lbs.780 lbs.880 lbs.
Hydraulic Ports NeededYes, 1 Set (2 Ports)Yes, 1 Set (2 Ports)Yes, 1 Set (2 Ports)
Front Weight NeededYes, Min 20% of Total Machine Weight RequiredYes, Min 20% of Total Machine Weight RequiredYes, Min 20% of Total Machine Weight Required

Unit Weights & Dimensions

TR3 E Trevor Brazile6'7'8'
Base Unit Weight690 lbs.780 lbs.880 lbs.
Full Unit Weight785 lbs.890 lbs.1,015 lbs.
Base Shipping Weight780 lbs.875 lbs.980 lbs.
Full Shipping Weight875 lbs.1,010 lbs.1,135 lbs.
Unit Dimensions71"W x 60"D x 37"H83"W x 60"D x 37"H95"W x 60"D x 37"H
Shipping Dimensions72"W x 54"D x 45"H84"W x 54"D x 45"H90"W x 54"D x 45"H

Frame Construction

TR3 E Trevor Brazile6'7'8'
3-Point HitchCAT 1CAT 1CAT 1
Quick Hitch CompatibleYesYesYes
TypeFarm & Ranch GradeFarm & Ranch GradeFarm & Ranch Grade
MaterialTube SteelTube SteelTube Steel
Tire Size16.5" Diameter x 6.5" Width x 8" Rim16.5" Diameter x 6.5" Width x 8" Rim16.5" Diameter x 6.5" Width x 8" Rim
Tire TypeTurf Tire - Air FilledTurf Tire - Air FilledTurf Tire - Air Filled

Finish Rake

TR3 E Trevor Brazile6'7'8'
TypeHydraulically Adjustable Relationship To FrameHydraulically Adjustable Relationship To FrameHydraulically Adjustable Relationship To Frame
Raking Width71" (5.92')83" (6.92')95" (7.92')
Rake Material1/2" Steel - Laser Cut (Replaceable in sections)1/2" Steel - Laser Cut (Replaceable in sections)1/2" Steel - Laser Cut (Replaceable in sections)
Flared EndsYesYesYes
Push Material BackwardCompletely Loose Material OnlyCompletely Loose Material OnlyCompletely Loose Material Only

Grading Blade

TR3 E Trevor Brazile6'7'8'
TypeFloating, Fixed, or Float Within RangeFloating, Fixed, or Float Within RangeFloating, Fixed, or Float Within Range
Grading Width45.5" (3.79')57.5" (4.79')69.5" (5.78')
Cutting EdgeSolid, ReplaceableSolid, ReplaceableSolid, Replaceable
Hinged Cutting EdgeNoNoNo
Hydraulic AdjustmentNoNoNo

Scarifiers

TR3 E Trevor Brazile6'7'8'
TypeRigid Shank - With Replaceable Tip (Bolt-On)Rigid Shank - With Replaceable Tip (Bolt-On)Rigid Shank - With Replaceable Tip (Bolt-On)
Scarifying Width44.4" (3.7')56.5" (4.71')68.5" (5.71')
Scarifying Depth0" - 4 3/4"0" - 4 3/4"0" - 4 3/4"
# of Scarifiers468
Hydraulic AdjustmentNoNoNo
Scarifier Shank Length7"7"7"

Grooming Rods

TR3 E Trevor Brazile6'7'8'
# of Grooming Rods91317
Grooming Width54" (4.5')67.5" (5.63')78" (6.5')
Grooming Depth0" - 8"0" - 8"0" - 8"
Grooming Rod Length16"16"16"

Profile Blades

TR3 E Trevor Brazile6'7'8'
AvailableOptionOptionOption
Profile Blade Width58" (4.83')70" (5.83')82" (6.83')
Profile Blade Depth0" - 6"0" - 6"0" - 6"
Mounting LocationFrontFrontFront
Unit Weight93 lbs.107 lbs.120 lbs.

Warranty

TR3 E Trevor Brazile6'7'8'
Farm & Ranch Use36 Months36 Months36 Months
Commercial Use12 Months12 Months12 Months
Bent Frame CoverageNoNoNo

Usage

TR3 E Trevor Brazile6'7'8'
Full Time Commercial UseNoNoNo
ApplicationsArena Grooming, Driveway Grading, Property WorkArena Grooming, Driveway Grading, Property WorkArena Grooming, Driveway Grading, Property Work
English SpecialitiesDressage, Jumping, PleasureDressage, Jumping, PleasureDressage, Jumping, Pleasure
Western SpecialitiesGeneral, Pleasure, Reining, Cutting, Rodeo, StockGeneral, Pleasure, Reining, Cutting, Rodeo, StockGeneral, Pleasure, Reining, Cutting, Rodeo, Stock

Reviews

| There are no reviews yet.
