Overview
185 ft³ PTO Drive Manure Spreader
Gauge Steel
10
Beater Bars
3
Flow Control Speeds
Variable
Limited Warranty
3-Yr
Features
Hydraulic Apron Web Variable Flow Control
Unlike most competitors, the 185 cu, ft, ABI Classic Manure spreaders feature the ability to hydraulically control the flow rate of manure being pushed to the back beaters for spreading. Flow control is accomplished by speeding up or slowing down the apron web, that feeds manure to the back beaters, independently of the PTO speed. This control enables the operator to either empty the manure as fast as possible or apply controlled amounts of manure to specific areas to maximize its’ fertilizer value. Variable flow control also enables this spreader to handle a wider range of manure, as manure consistency can change depending on manure type, bedding material, stage of decomposition, and weather, without causing damage or additional maintenance to the spreader. On the 185 PTO model, the apron web speed is adjusted via a hydraulic switch. A high speed clean-out mode is also provided.
Shreds & Then Spreads - 3 Beater Bars
The 185 cu. ft. model is equipped standard with 3 beater bars. Two designed to shred manure and the other designed to spread it evenly. The shredder beaters, with 160 shredding blades, is geared slower than the wide spread beater to maximize shredding power. The spreading beater is expertly designed to further breakdown the manure and evenly distribute it on the ground. The 185 cu. ft. manure spreader has 14 large wide spread paddles. Shredding before spreading and then evenly spreading over a wide swath, exposes more manure surface to sunlight which allows it to dry and decompose far more quickly. Owning an ABI manure spreader that both shreds manure before it spreads and also controls the amount of manure being applied to the ground, enables the horse owner to help maintain an eco-balanced pasture. An eco-balanced pasture can help reduce colic, increase pasture turn efficiency rates, help produce more vigorous grass growth, and reduce odor & flies around the farm.
Options
Hydraulic End Gate
The Hydraulic End Gate is designed to close off the back end of the manure spreader to prohibit spillage out the back of the spreader into the barn aisle or during transport. The end gate is raised and lowered hydraulically and serves to additionally help deflect flying manure away from the operator and tow vehicle while spreading.
Fines Pan / Litter Pan
For those that leave nothing to chance, the Fines Pan prevents small fines of manure from falling off the back of the spreader and to the ground without first being processed by the beater bar. The pan has a release for easy cleaning and is replaceable. The Fines Pan can also assist in preventing manure from falling out the back of the spreader during loading and transport. A fines pan is highly desired when spreading dry material such a saw dust bedding, wood chip bedding, or dry compost; any type of material with small fines.
Advantages
Corrosion-Resistant Steel
We start with extremely thick 10 gauge corrosion-resistant COR-TEN steel construction. Unlike most spreaders, the Classic Spreader is a longterm “one-time” investment which has a fully welded box frame, using thicker steel, for worry-free durability. COR-TEN steel may be exposed to the elements, even unfinished, and rust will not perforate it for decades. With COR-TEN steel, you get the longevity and strength required to build a world-class spreader, without the unneeded additional expense and structural weakness of stainless steel.
Protective Body Liner
The inside of the spreader body is coated with a Coal-Tar-Epoxy liner. The Coal-Tar-Epoxy liner adds an industrial seal to protect from the severe corrosive effects of urine filled manure. Coal-Tar-Epoxies are commonly used to line underground sewage tanks and pipelines, and even protect the hulls of barges in salt water.
Lifetime Poly-Lumber Flooring
The bottom flooring is constructed of extremely thick tongue-and-groove polyvinyl lumber that will never rot, rust, or need replacing. Even better yet, the tongue-and-groove construction prohibits the individual poly-boards from warping, preventing excessive wear or damage to the apron web. This is a premium maintenance free flooring that will last and comes standard with a limited lifetime warranty.

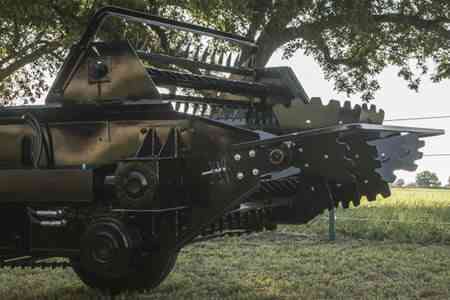

Superior-Quality Craftsmanship & Components
Built in Lancaster Pennsylvania, by highly skilled craftsman with decades of spreader building experience, these spreaders are crafted for daily farm-use-conditions and made of the most durable components we know of. Materials such as grade-5 bolts, greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 1″ wide), T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a spreaders materials and components quality by its overall unit weight, the heavier the better. The ABI spreader weighs nearly 1/3 more than equivalently sized competitors spreaders. Now that is tangible quality you can feel!

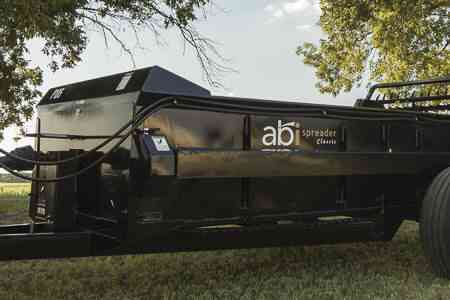

Commercial-Grade Coating (PPG AUE-370)
All steel components are sand-blasted before painting to prime for perfect adhesion. A special commercial-grade coating (PPG AUE-370), a black gloss acrylic urethane paint twice as thick as Rust-Oleum is then applied. Unlike powder-coating, this paint is easy to repair and touch-up and moisture cannot get behind it which eliminates the possibility of rust forming under the finish layer.
Manufactured Right Here
You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.
Specifications
Capacity
| Classic Spreader | 185ft3 |
|---|---|
| Heaped Capacity | 185 cu ft |
| Struck Capacity | 112 cu ft |
| # of Horses | Up To 35 |
Features
| Classic Spreader | 185ft3 |
|---|---|
| Platform | Commercial Ag |
| PTO Driven: | Yes |
| Steel Type: | COR-TEN |
| Steel of Gauge: | 10 |
| # of Beaters: | 3 |
| In-line Shreddding Beater: | Yes |
| # of Spreading Paddles: | 14 |
| # of Shredding Blades: | 160 |
| Flow Control Speeds: | Variable |
| Speed Adjustment: | Hydraulic |
| Spray Shield: | - |
| Bed Liner: | Yes |
| Poly Lumber Floor: | Yes |
| Jack Stand: | Skid Plate |
| Tires | Flotation |
| Ratcheting Hubs: | - |
Min, Vehicle Requirements
| Classic Spreader | 185ft3 |
|---|---|
| Tractor Type: | Utility |
| Min. Horsepower: | 50 hp |
| Min. Hydraulic Pump: | 8 Gal p/min |
| Utility Vehicle Type: | - |
| Min. CC: | - |
Weights
| Classic Spreader | 185ft3 |
|---|---|
| Unit Weight: | 3,175 lbs |
| Shipping Weight: | 3,175 lbs |
| Empty Tongue Weight: | 250 lbs |
Unit Dimensions
| Classic Spreader | 185ft3 |
|---|---|
| Total Length: | 252" (21') |
| Total Width: | 94" (7' 10") |
| Total Height: | 68" (5' 8") |
| Box Length: | 140" (11' 8") |
| Box Width: | 60" (5') |
| Box Height: | 23" (1' 11") |
| Box Flared Width: | 68" (5' 8") |
| Loading Height: | 53" (4' 5") |
Warranty
| Classic Spreader | 185ft3 |
|---|---|
| Mechanical | 36 Months |
| Workmanship: | 36 Months |
| Poly Lumber Floor: | Lifetime |
